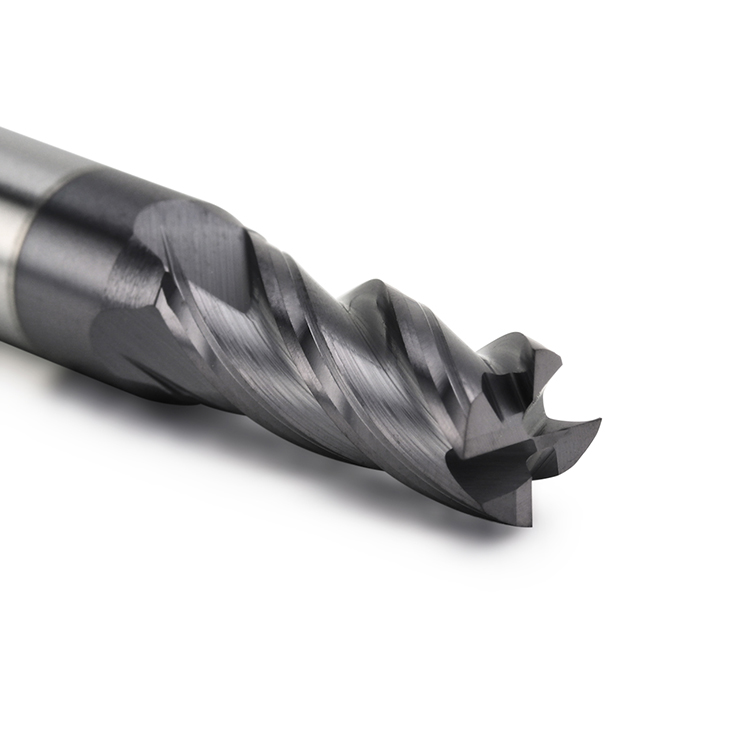

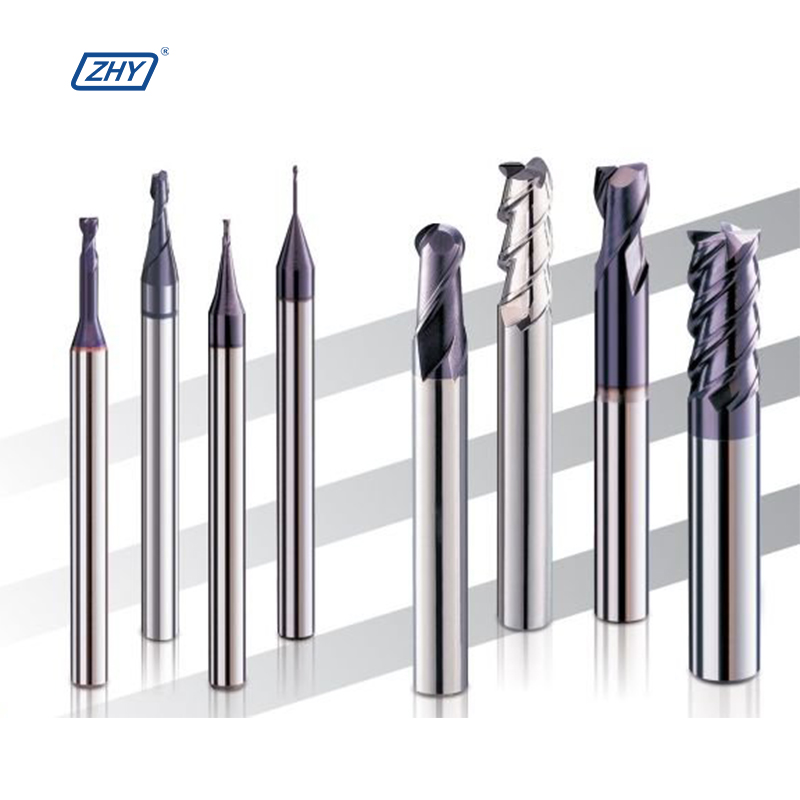

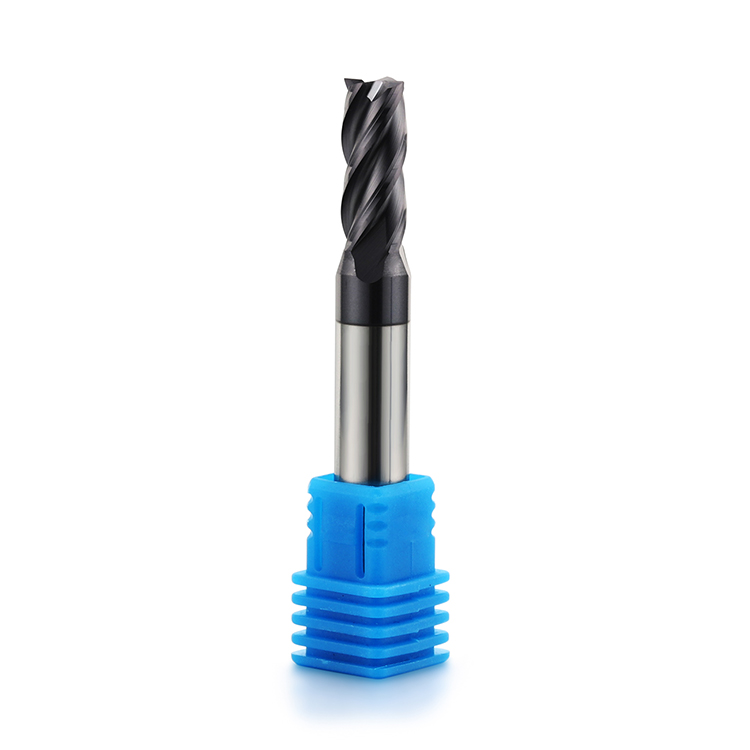

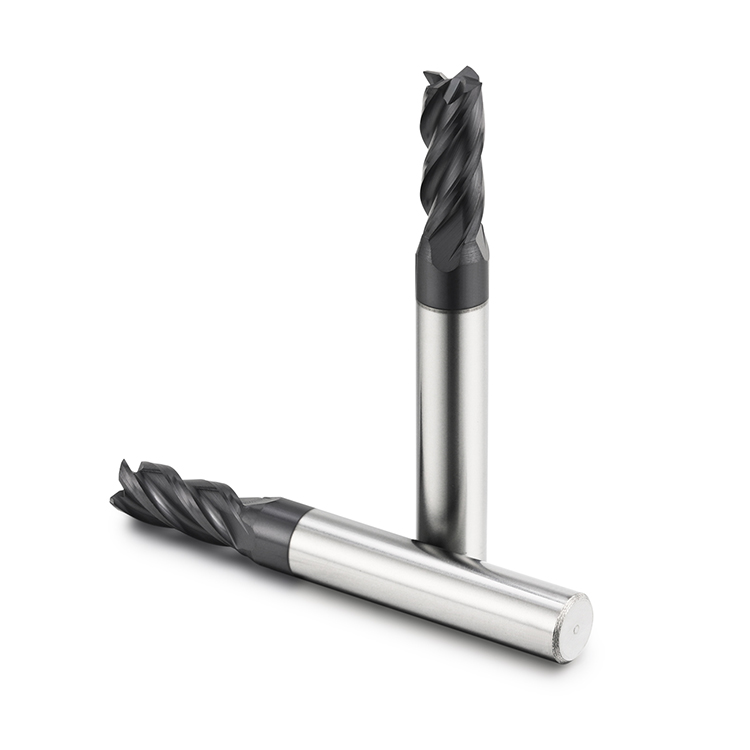

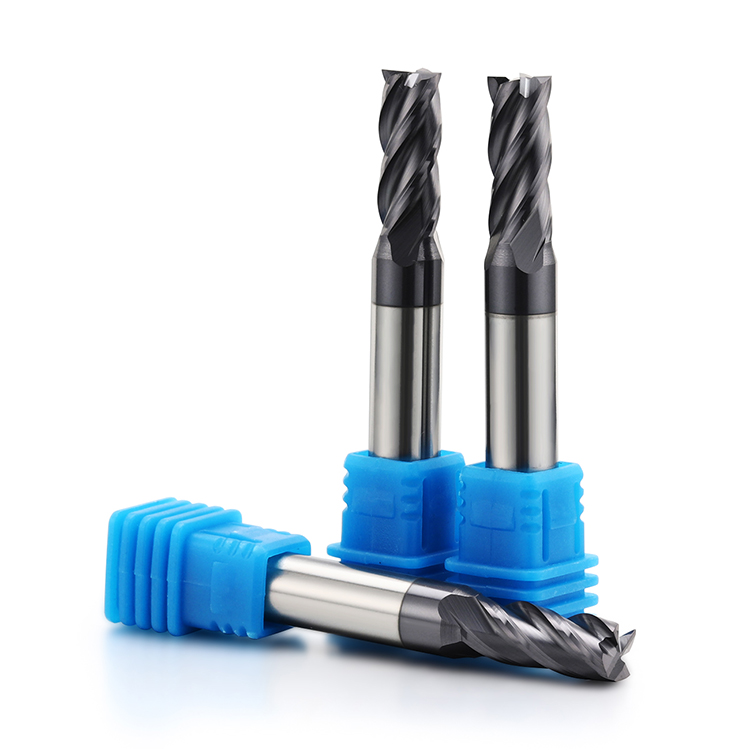

Product Description
1. Product Parameters
| Parameter |
Specification Details |
| Name |
End mill |
| Hardness |
HRC45 / HRC55 / HRC60 / HRC65 / HRC70 |
| Type |
Flat / Ball Nose / Corner Radius / Rough |
| Flutes |
1 / 2 / 3 / 4 / 5 / 6 Flutes |
| Size |
Standard sizes or customized as requested |
| Coating |
AlTiN, TiAlN, TiSiN, TiN, DLC, Nano, Diamond |
| Tolerance (Public errand) |
0 - 0.5um |
| Suitable Materials |
Copper, Cast Iron, Carbon Steel, Mould Steel, Stainless Steel, Tool Steel, etc. |
| OEM/ODM |
Highly welcomed and supported |

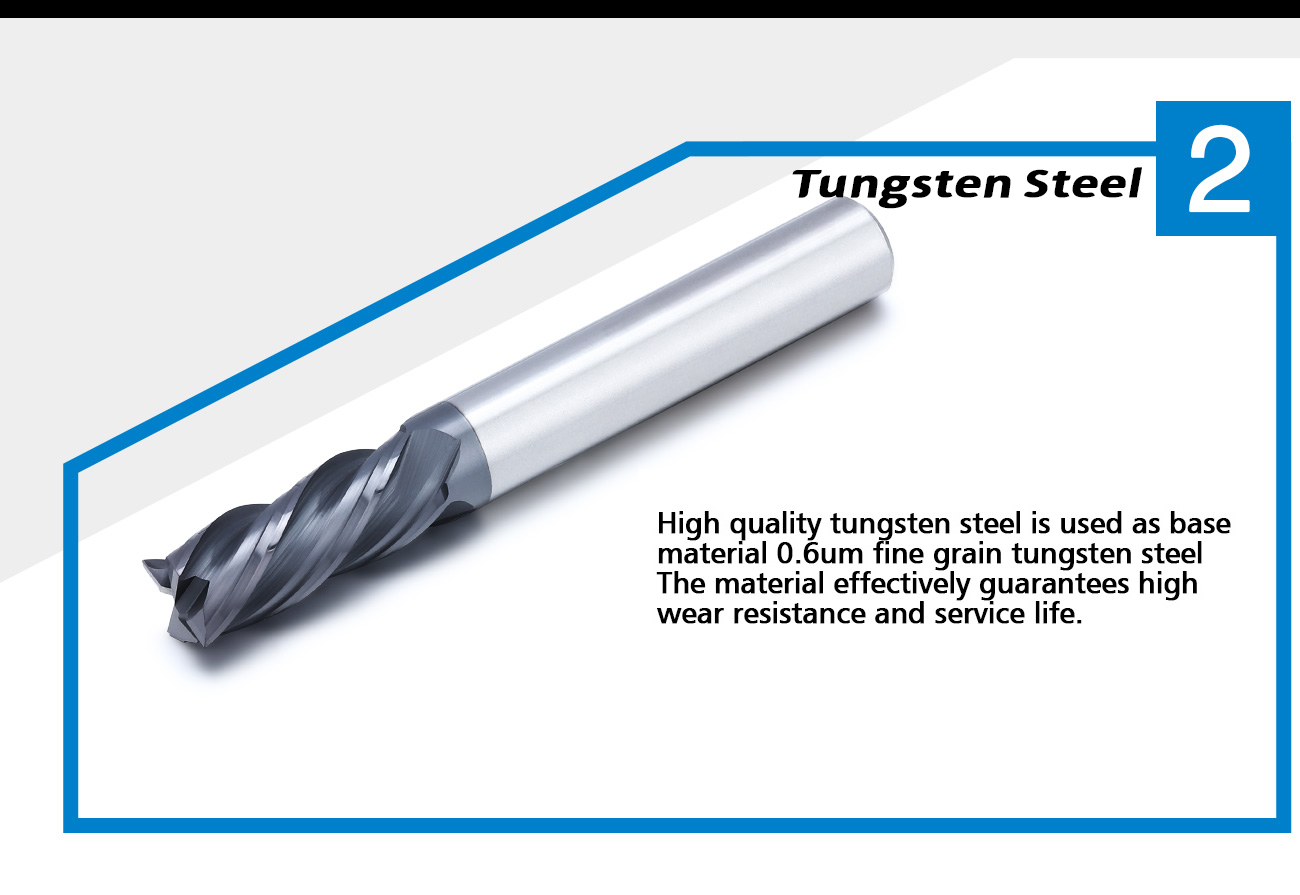

2. Super Raw Material
| Item Grade |
Grain Size |
Co Content |
Flexural Strength |
| HRC45 |
0.7um |
10% |
3320 N/mm² |
| HRC55 |
0.6um |
10% |
4000 N/mm² |
| HRC60 |
0.5um |
12% |
4300 N/mm² |
| HRC65 |
0.5um |
10% |
4300 N/mm² |
3. Super Coating Details
| Type |
Color |
HV |
Thickness (µm) |
Friction Coeff. |
Max Temp (°C) |
Description & Usage |
| TiN |
Golden |
2300 |
0.4 |
0.4 |
500 |
Cost-effective |

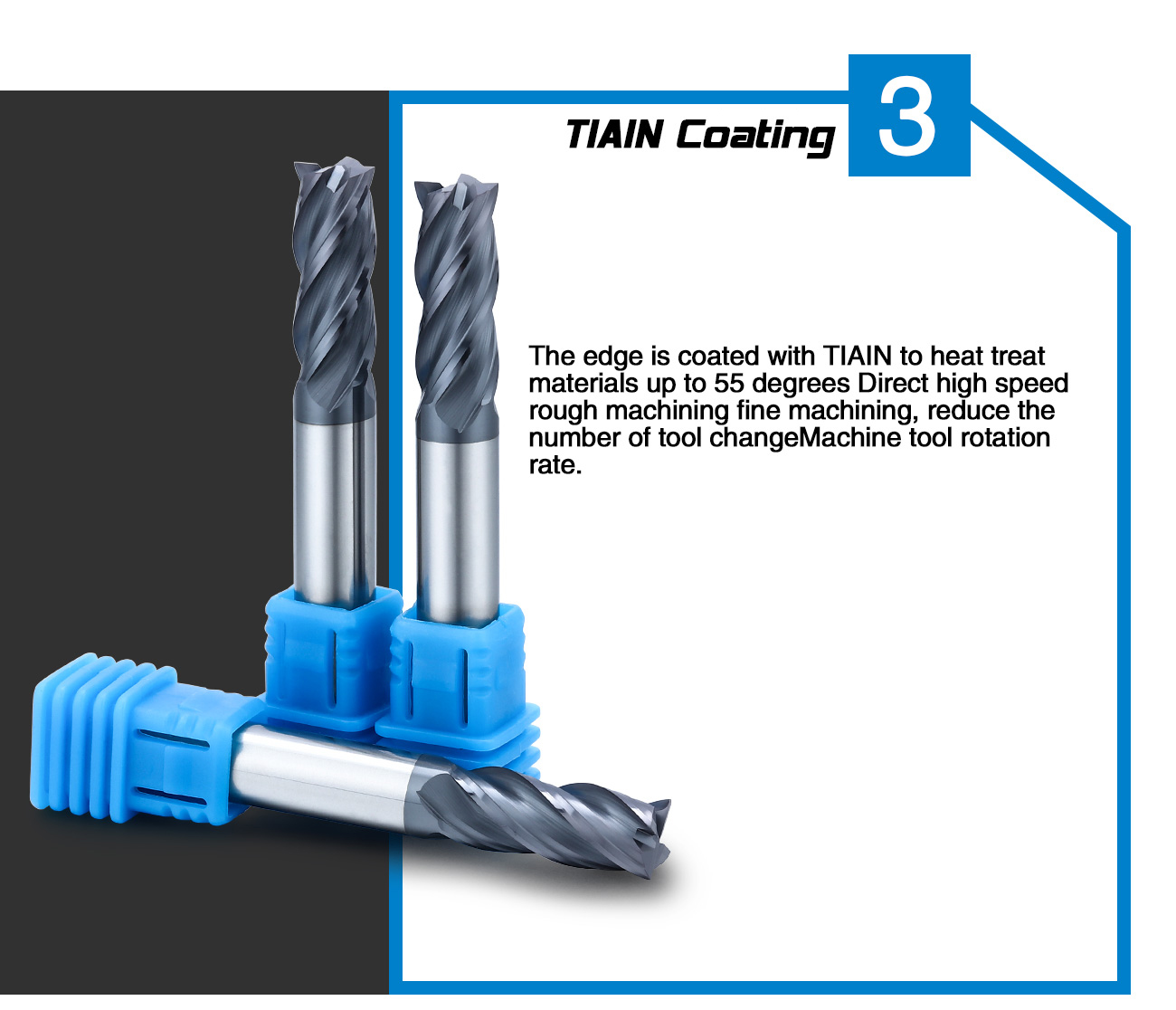

| TiAlN |
Purple |
3200 |
0.5 |
0.35 |
800 |
General purpose |
| AlTiN |
Black |
3400 |
0.5 |
0.4 |
900 |
High speed, High HRC cutting |
| TiSiN |
Antique brass |
3600 |
0.4 |
0.45 |
1000 |
Processing copper, titanium, mould steel |
| Nano Blue |
Dazzle blue |
42 (GPA) |
0.4 |
0.4 |
1200 |
General high speed cutting |
| DLC |
Dazzle black |
1000~4000 |
0.5-2.0 |
0.05 |
400 |
Ideal for non-ferrous metals, graphite, plastics |

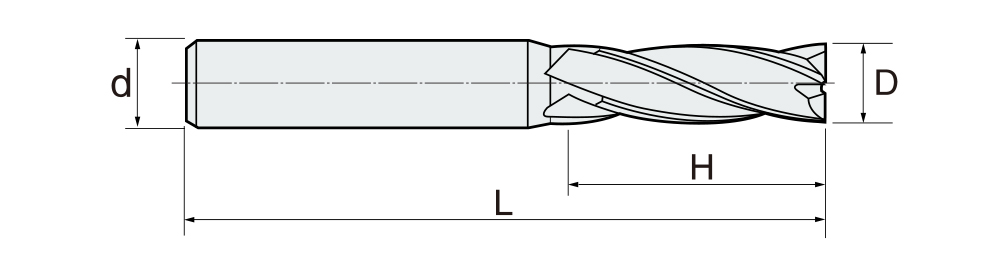

Size List
| Blade Dia (d) |
Blade Length (H) |
Shank Dia (D) |
Overall Length (L) |
| 1.0 | 3 | 4 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2.0 | 6 | 4 | 50 |
| 2.5 | 7 | 4 | 50 |
| 3.0 | 8 | 4 | 50 |
| 3.5 | 10 | 4 | 50 |
| 4.0 | 11 | 4 | 50 |
| 1.0 | 3 | 6 | 50 |
| 1.5 | 4 | 6 | 50 |
| 2.0 | 6 | 6 | 50 |
| 2.5 | 7 | 6 | 50 |
| 3.0 | 8 | 6 | 50 |
| 3.5 | 10 | 6 | 50 |
| 4.0 | 11 | 6 | 50 |
| 4.5 | 13 | 6 | 50 |
| 5.0 | 13 | 6 | 50 |
| 5.5 | 13 | 6 | 50 |
| 6.0 | 15 | 6 | 50 |
| 6.5 | 17 | 8 | 60 |
| 7.0 | 17 | 8 | 60 |
| 7.5 | 17 | 8 | 60 |
| 8.0 | 20 | 8 | 60 |
| 8.5 | 23 | 10 | 75 |
| 9.0 | 23 | 10 | 75 |
| 9.5 | 25 | 12 | 75 |
| 10.0 | 25 | 12 | 75 |
| 10.5 | 25 | 12 | 75 |
| 11.0 | 28 | 12 | 75 |
| 11.5 | 28 | 12 | 75 |
| 12.0 | 30 | 12 | 75 |
| 13.0 | 45 | 14 | 100 |
| 14.0 | 45 | 14 | 100 |
| 15.0 | 45 | 16 | 100 |
| 16.0 | 45 | 16 | 100 |
| 17.0 | 45 | 18 | 100 |
| 18.0 | 45 | 18 | 100 |
| 19.0 | 45 | 20 | 100 |
| 20.0 | 45 | 20 | 100 |
| 22.0 | 45 | 25 | 100 |
| 25.0 | 45 | 25 | 100 |
💡
Need other sizes? Please feel free to contact us with your specified requirements!

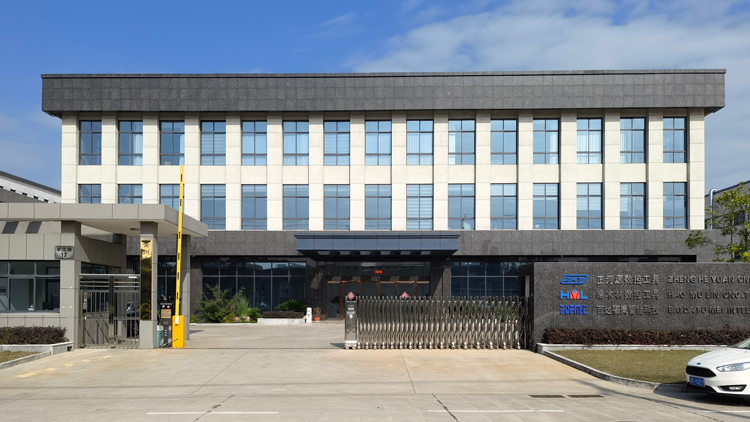

Company Profile
Established in 2005, we specialize in CNC tool cutters. We are a leading enterprise in China. Our main products are milling cutters, drill bits, tool holders, inserts, and other CNC accessories. We have advanced CNC equipment and machines, such as WALTER, ANCA, and DECKEL. Our high-quality CNC end mills and tool holders are very popular with users globally. With premium products, competitive prices, and efficient service, we are confident in meeting your manufacturing needs.

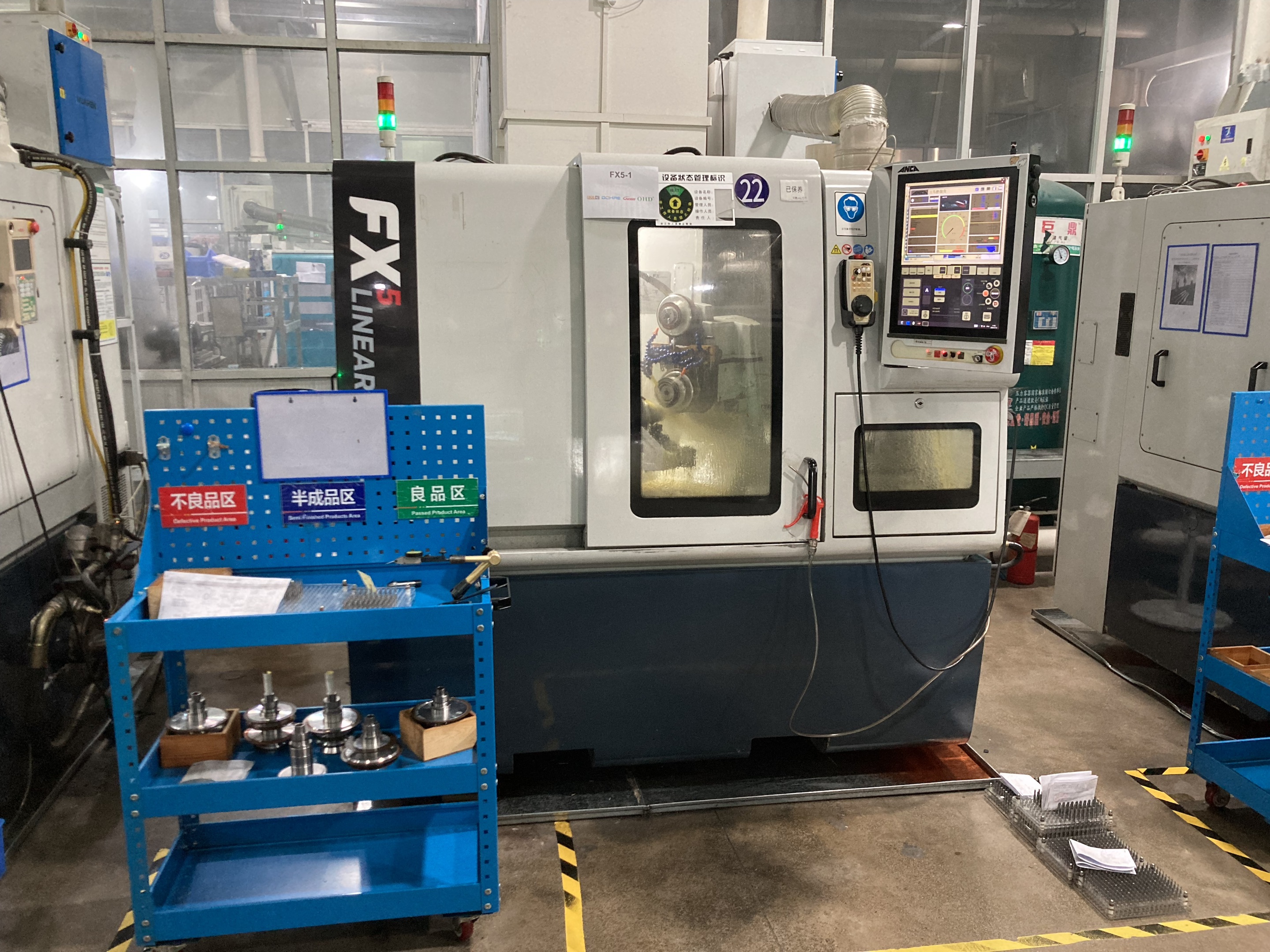

ANCA Machines

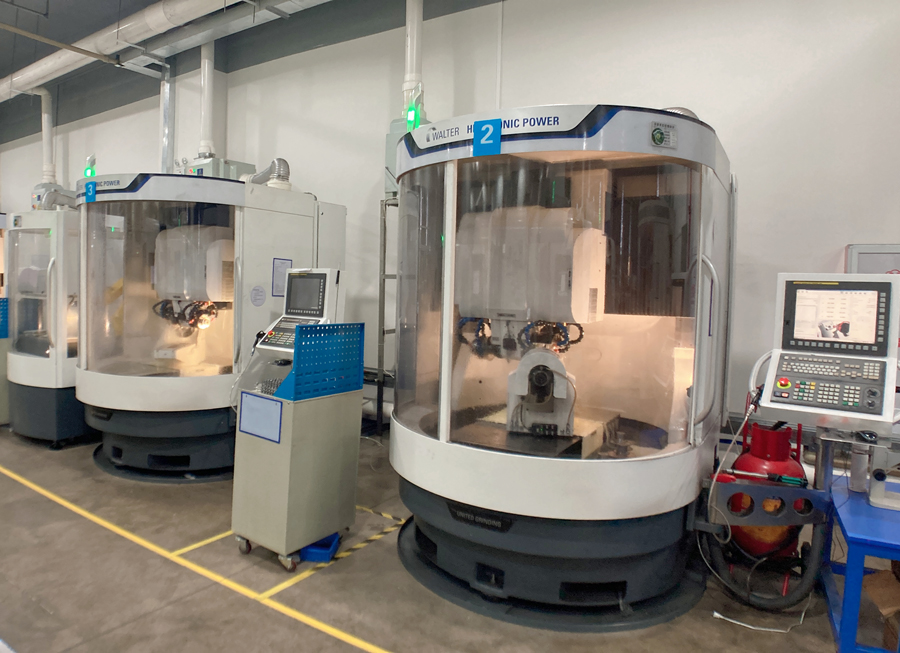

WALTER Machines

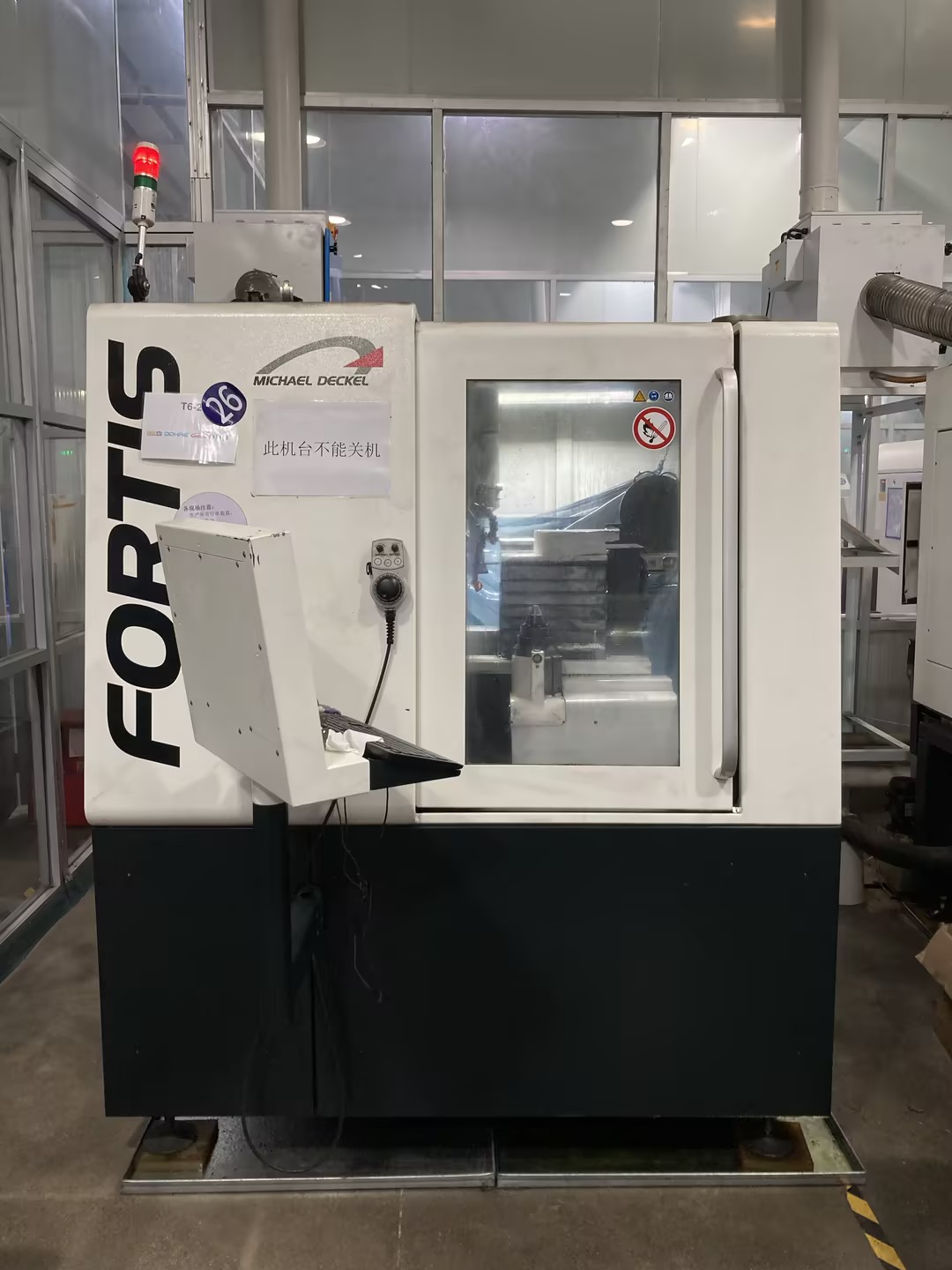

DECKEL Machines

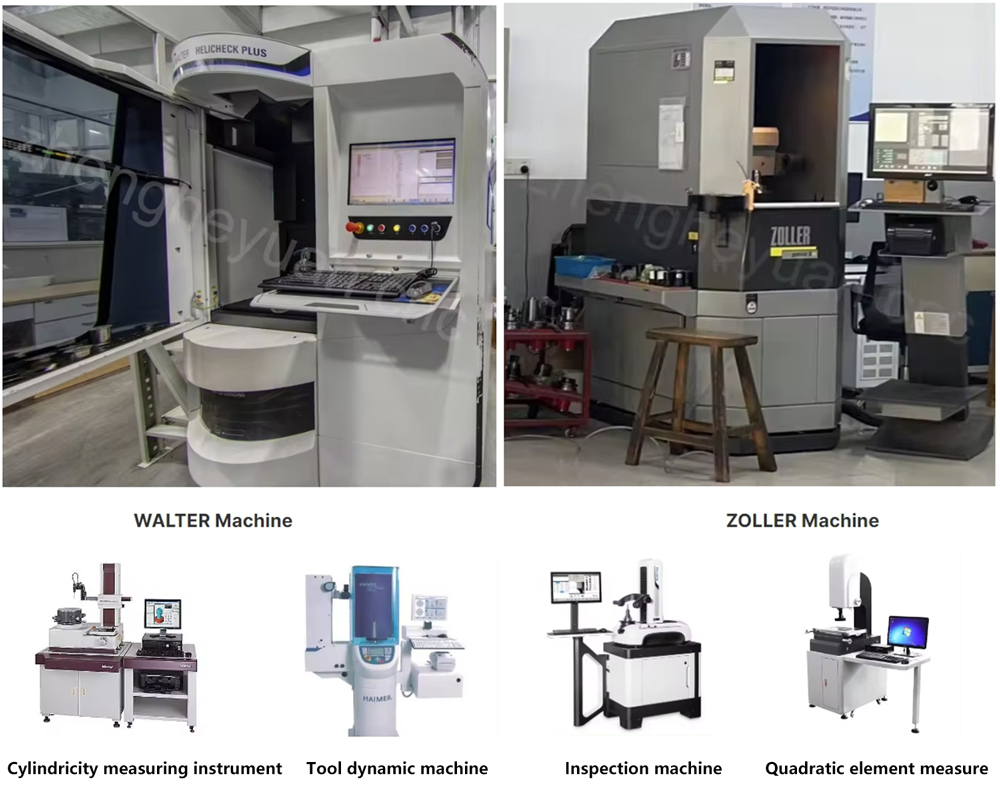

Quality Inspection Equipments

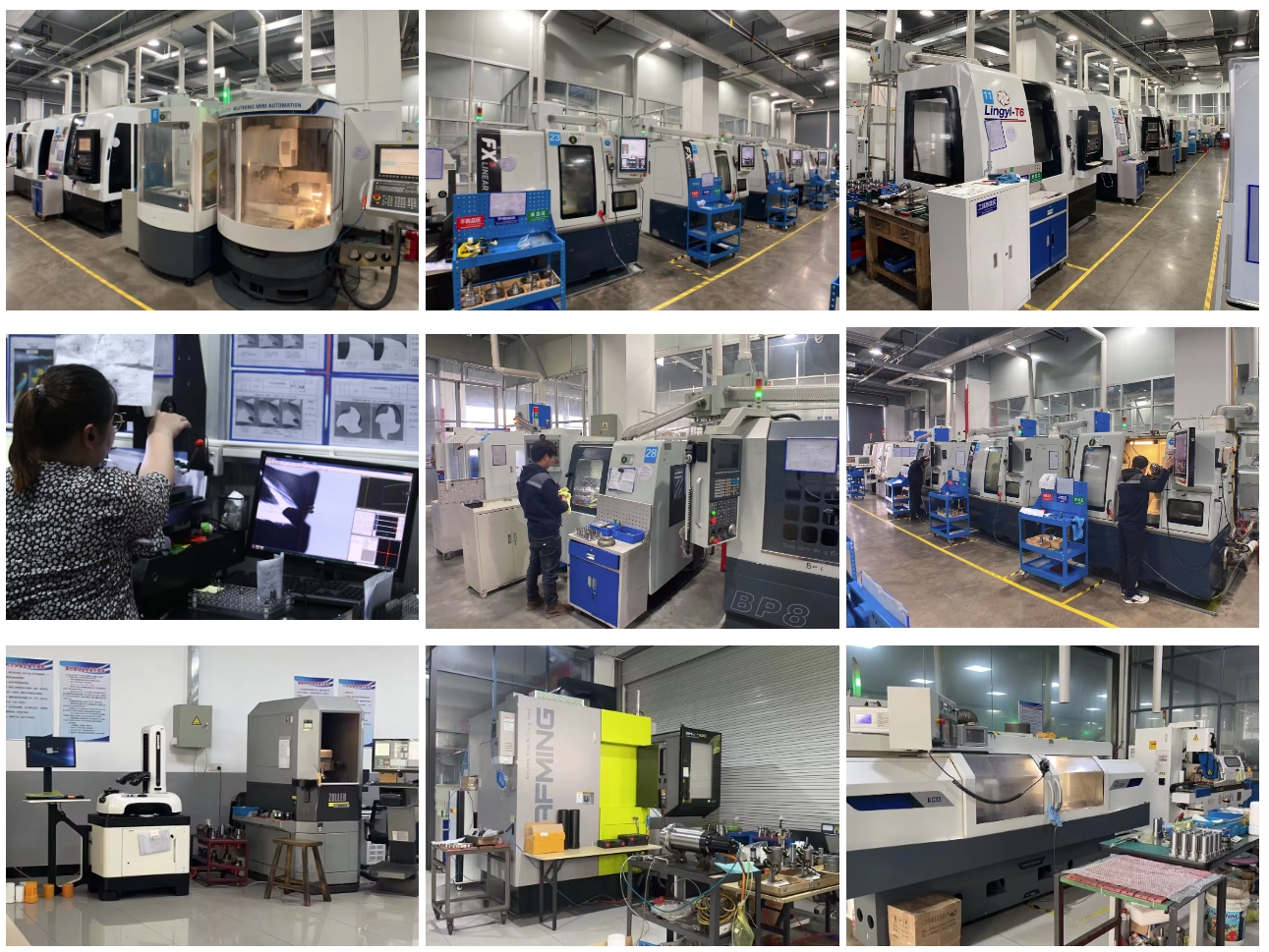

Workshop
Certifications
Cooperation Brands
Exhibitions
Frequently Asked Questions
🔷 Q: Are you a trading company or manufacturer?
A: We are a factory. We handle both production and direct sales to ensure control over quality and cost.
🔷 Q: Do you accept trial orders?
A: Yes, trial orders are welcome. We are also happy to provide optimized and favorable pricing if the order volume is substantial.
🔷 Q: Do you attend international exhibitions?
A: Yes, we participate in international exhibitions in many countries, including events in the United States and global machinery fairs.
🔷 Q: What is your Minimum Order Quantity (MOQ)?
A: The MOQ is 10 pieces for any item in our product line.
🔷 Q: Can we visit your manufacturing facility?
A: You are welcome to visit our factory. We will gladly show you our manufacturing lines, equipment, and workshop if you are interested.
🔷 Q: Do you provide custom OEM/ODM services?

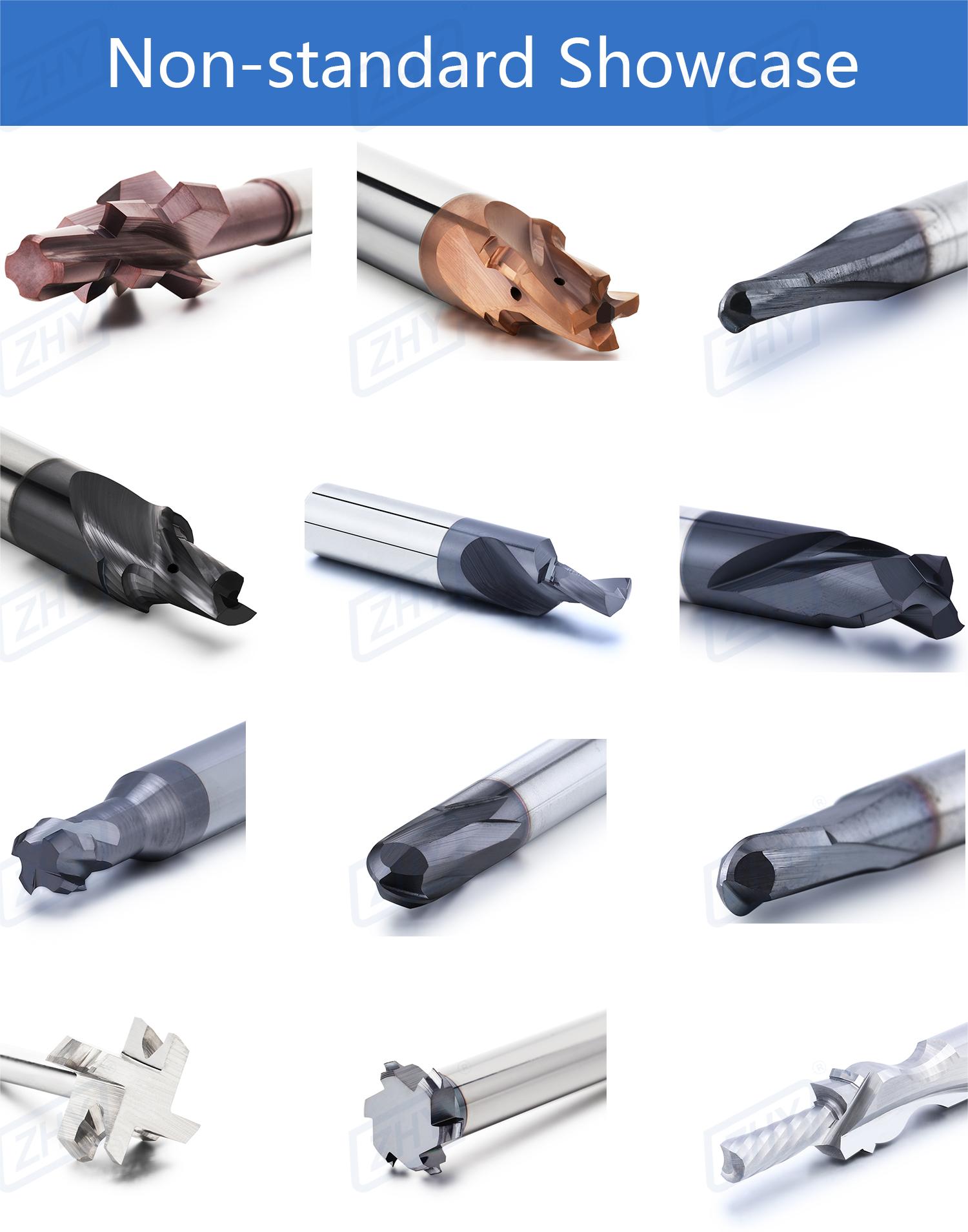

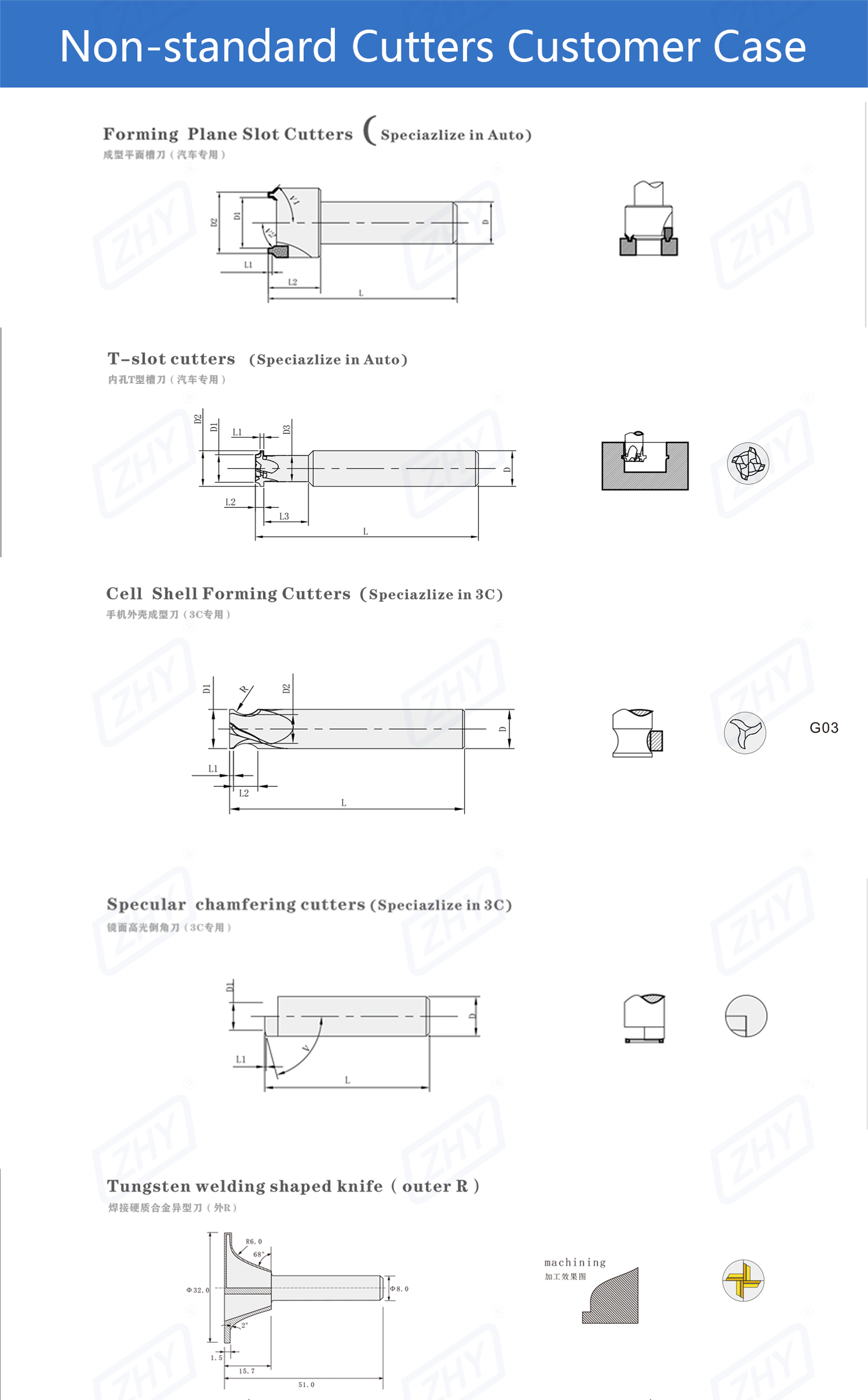

A: Yes, OEM and ODM projects are highly welcomed. We can manufacture tools based on your specific custom dimensions, blueprints, or samples.
