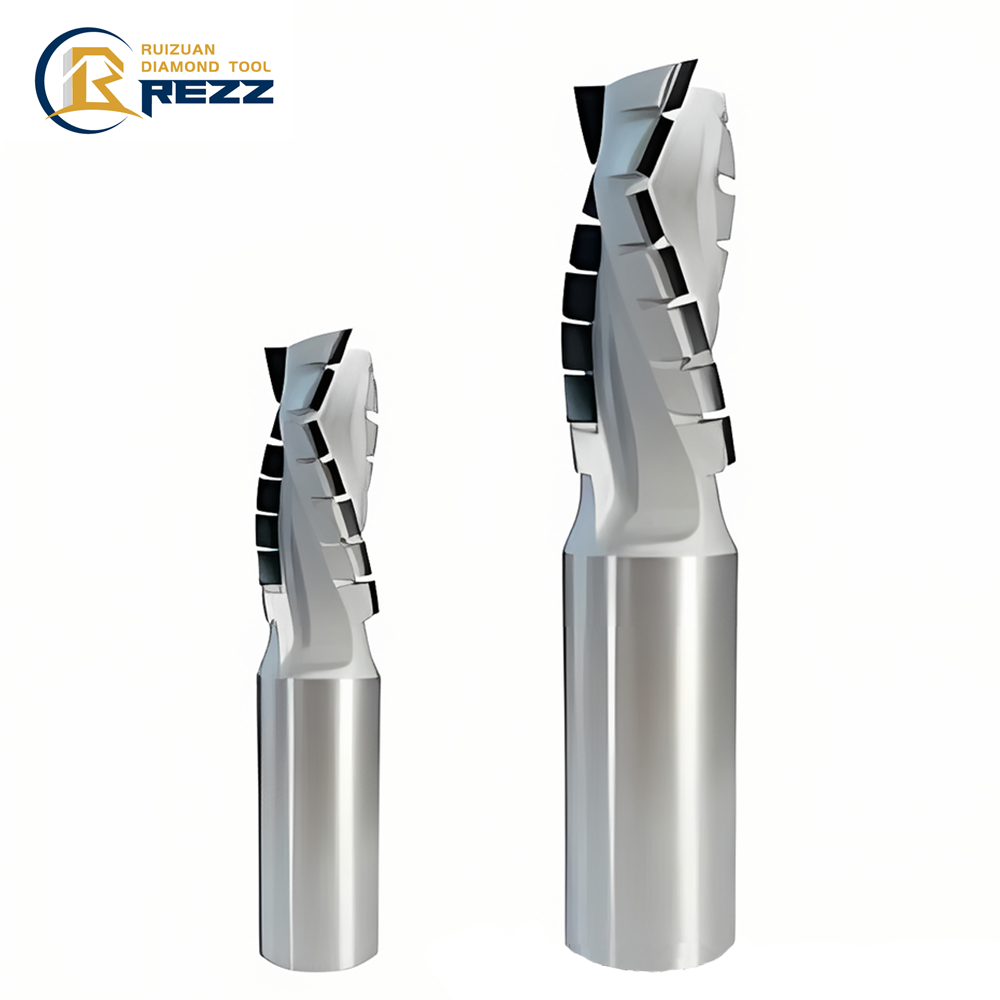

CNC Tool Pcd End Milling Diamond Straight Router Bits PCD Corn Router Bits End Mill Cutter Woodworking Tool

1 / 5

CNC Tool Pcd End Milling Diamond Straight Router Bits PCD Corn Router Bits End Mill Cutter Woodworking Tool

Send Inquiry

Product Description

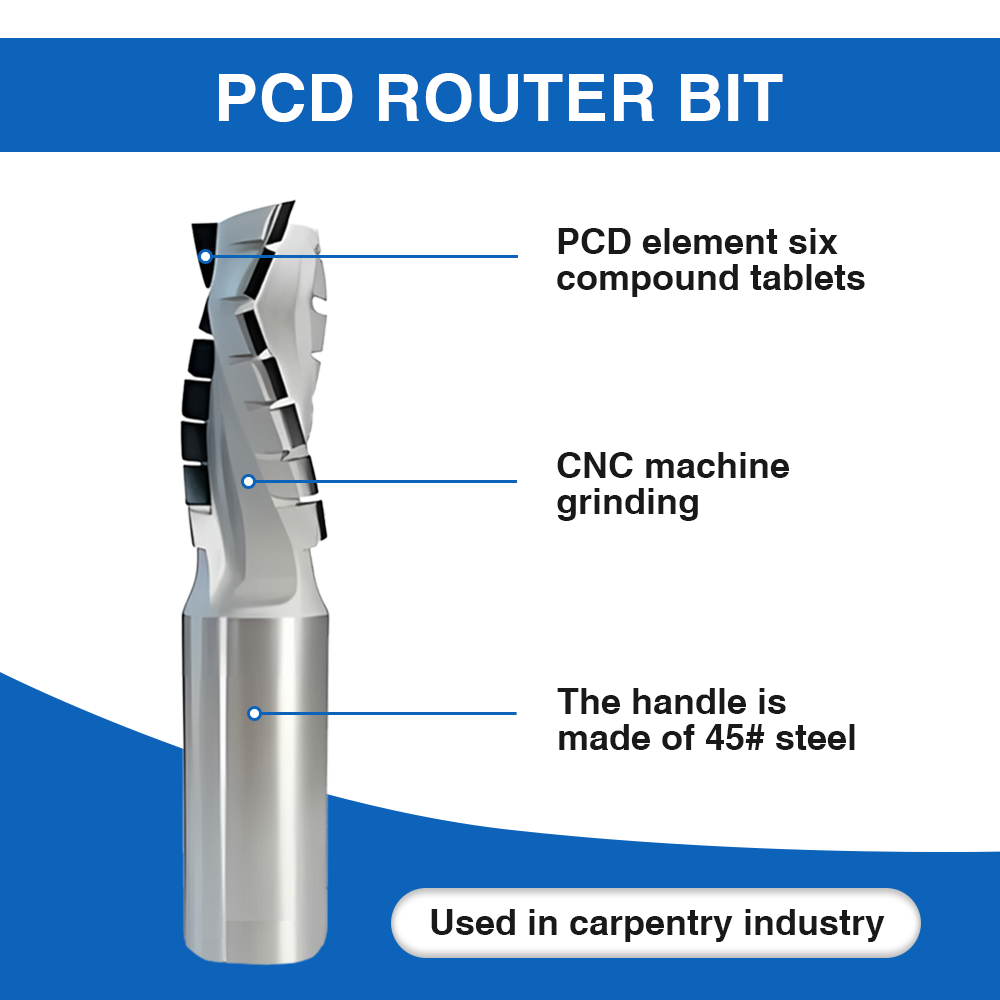

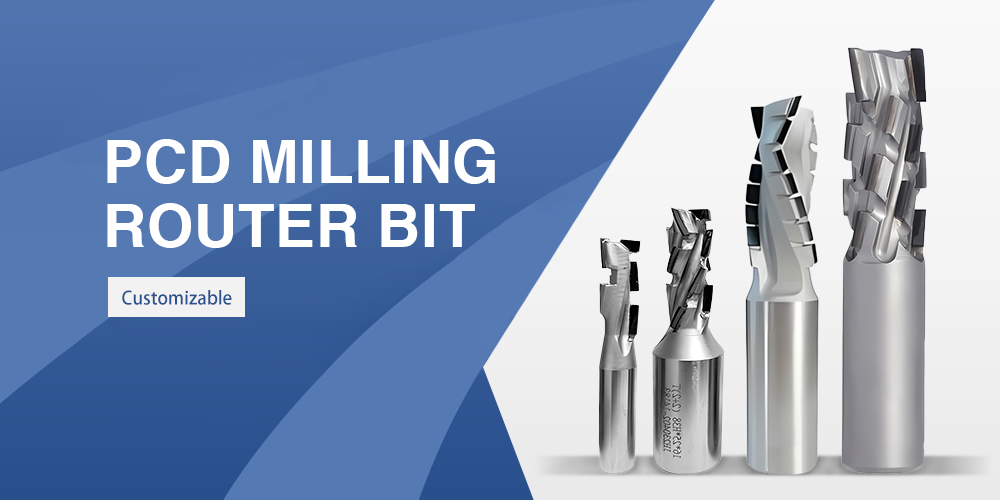

PCD Woodworking Router Bits

PCD (Polycrystalline Diamond) woodworking router bits, designed for exceptional durability and precision. These router bits are perfect for high-speed cutting, routing, and milling applications in woodworking. The PCD tips ensure extended tool life, reduced downtime, and superior cutting performance, making them ideal for processing hardwood, MDF, particleboard, and other composite materials.

ID number	diameter	cutting length	shank diameter	OVERALL LENGTH	Z
20166	20	28	20	90	3+3
20167	20	37	20	96	3+3
20168	20	45	20	105	3+3
20169	20	28	25	96	3+3
20170	20	37	25	105	3+3
20171	20	45	25	105	3+3
20172	25	28	25	96	3+3
20173	25	37	25	105	3+3
20174	25	45	25	113	3+3
20175	25	55	25	123	3+3

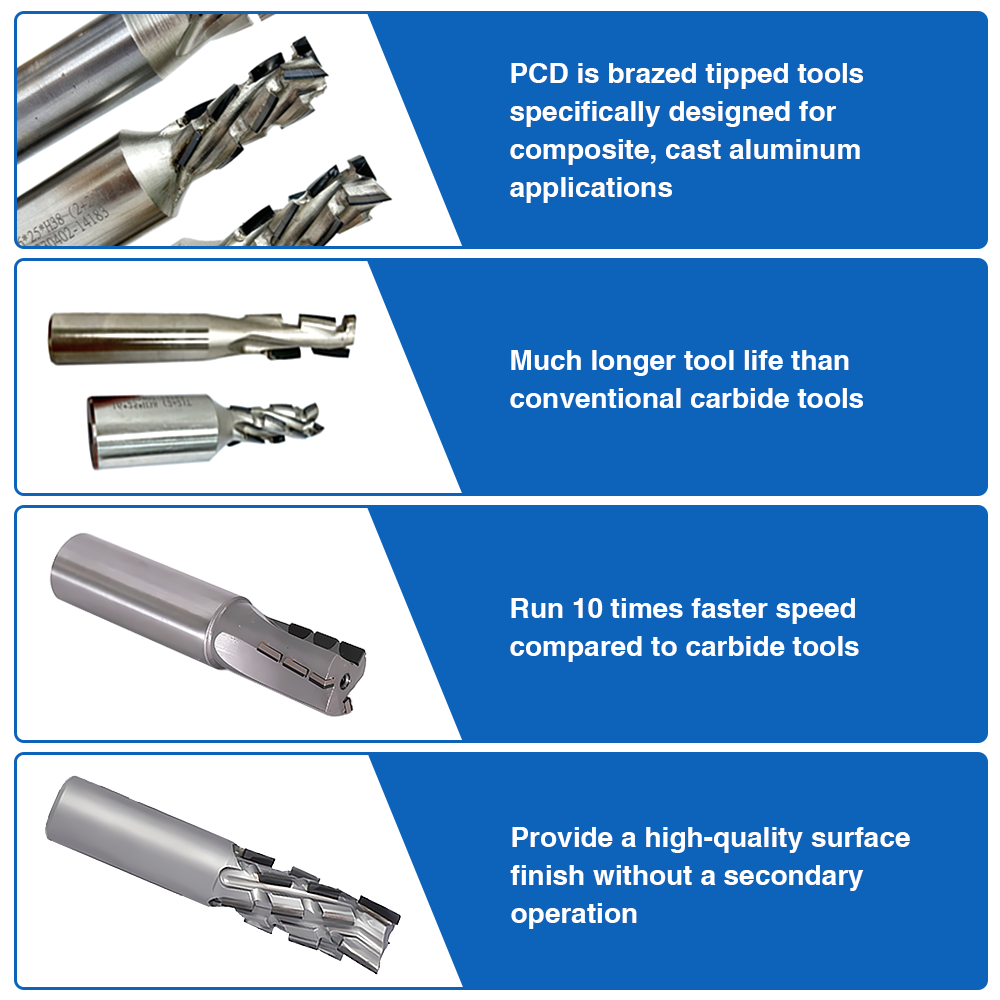

PCD is brazed tipped tools specifically designed for composite, cast aluminum applications
Much longer tool life than conventional carbide tools
Run 10 times faster speed compared to carbide tools
Provide a high-quality surface finish without a secondary operation
Can be re-sharpened 3-8 times without affecting the original profile

Application Materials

Suitable for a variety of woodworking applications including trimming, edging, and slotting.
Compatible Materials: Solid wood board, silicate board, multilayer board, density board, particle board, redwood board, medium fiberboard, particle board.

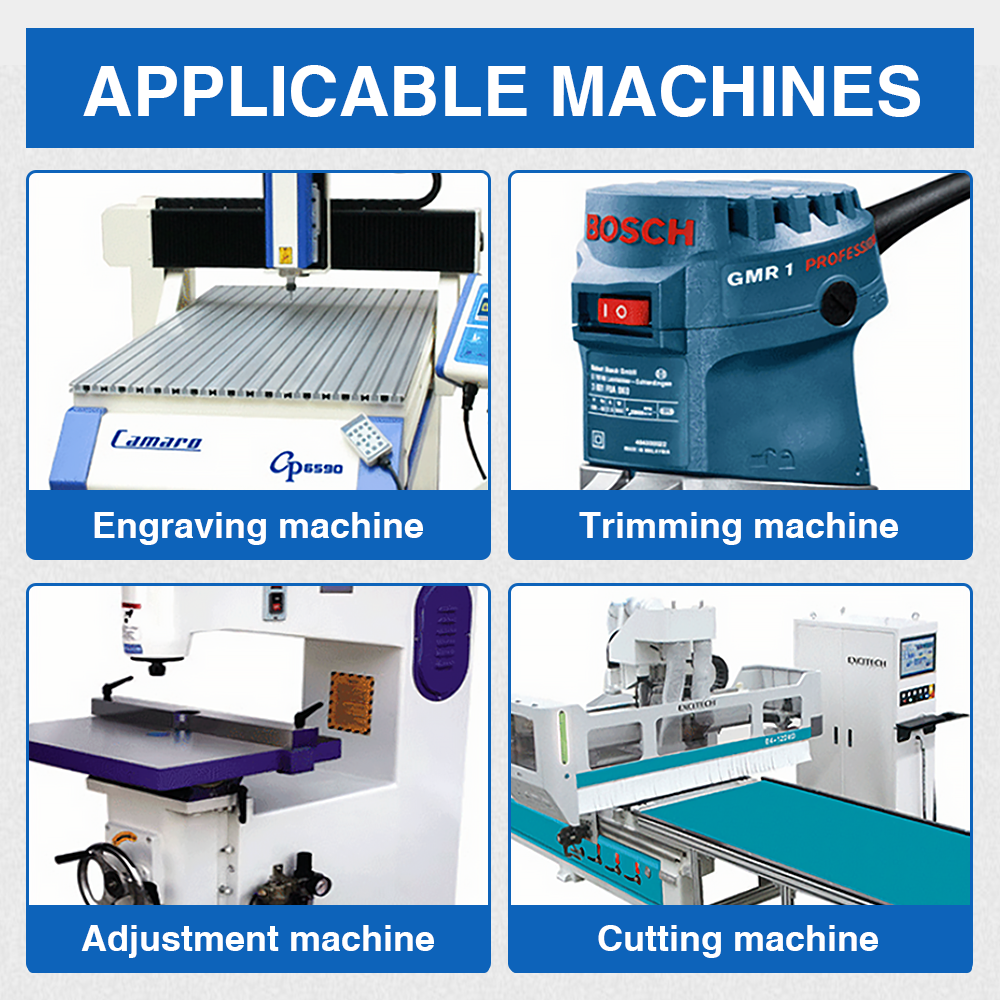

Application Machine

Compatible Machinery: Engraving machine, trimming machine, engraving machine, cutting machine.

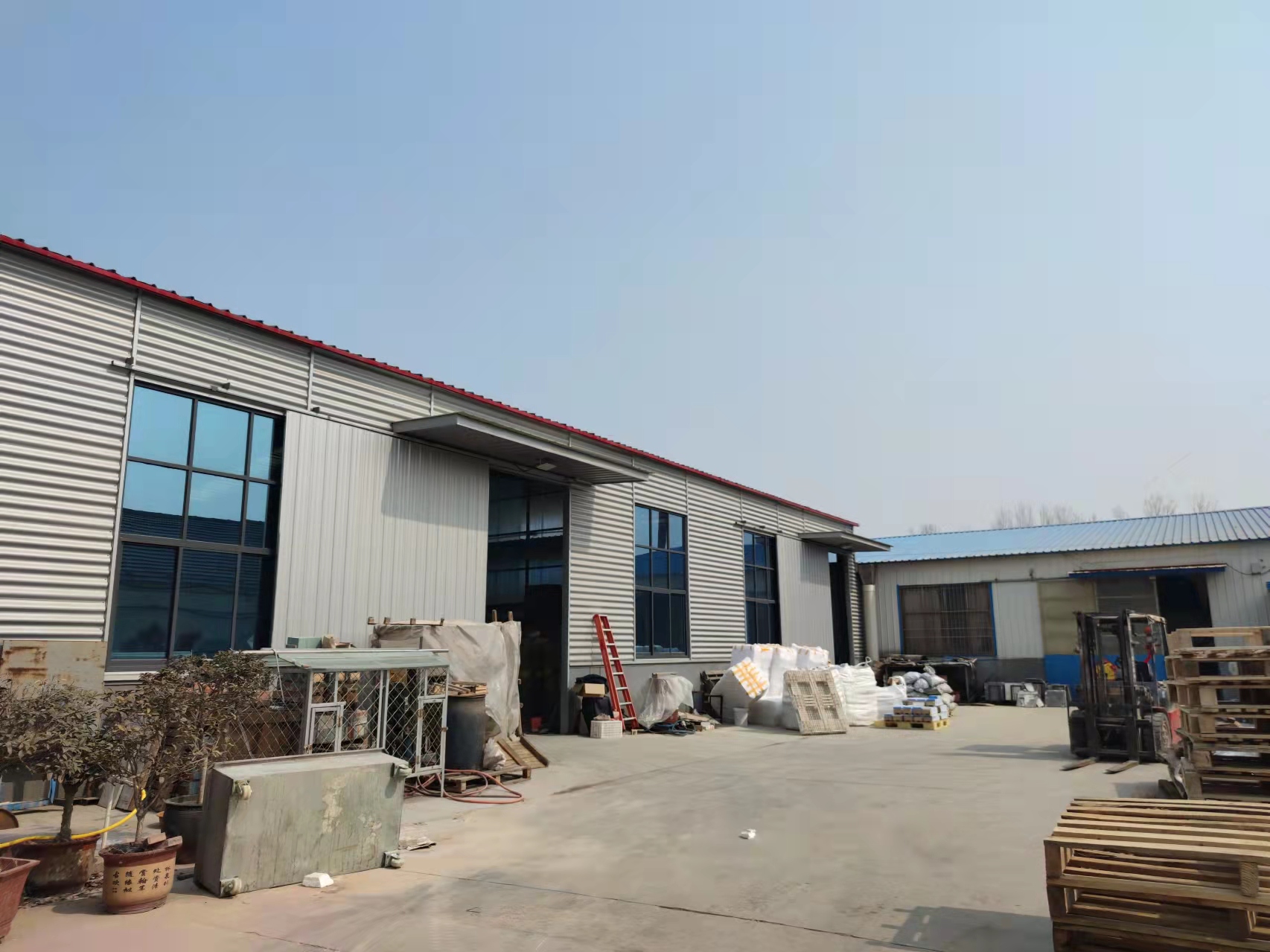

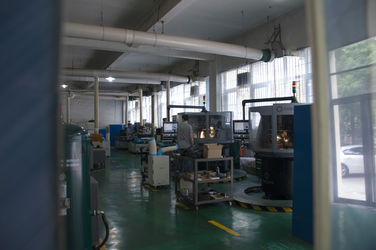

Why Choose Us

Packing & Delivery

PACKAGE:
SINGLE BOX PER WHEEL, 10 to 20 WHEELS PER CARTON

DELIVERY TIME:
3-30 days after confirming order, detail delivery date should be decided according to production season and order quantity.

Frequently Asked Questions

What is PCD and what makes it better than carbide for routing?

PCD (Polycrystalline Diamond) uses diamond-tipped cutting edges, which are extremely hard. It offers up to 10 times faster running speeds and substantially longer tool life than traditional tungsten carbide tools, providing a superior surface finish and less downtime.

What materials are these PCD router bits suitable for?

These bits are ideal for processing solid wood board, silicate board, multilayer board, density board, particle board, redwood board, medium fiberboard, and other wood composite materials.

Can these PCD woodworking tools be re-sharpened?

Yes, our PCD router bits can be re-sharpened 3 to 8 times without altering or affecting the original profile of the cutting edge.

What types of machines can operate these router bits?

They are highly compatible with engraving machines, trimming machines, CNC routing equipment, and standard wood cutting machines.

What is the standard packaging and delivery timeframe?

Typically, we pack individual items in single boxes with 10 to 20 units per carton. Delivery ranges from 3 to 30 days post-order confirmation, depending heavily on the season and your final order quantity.
