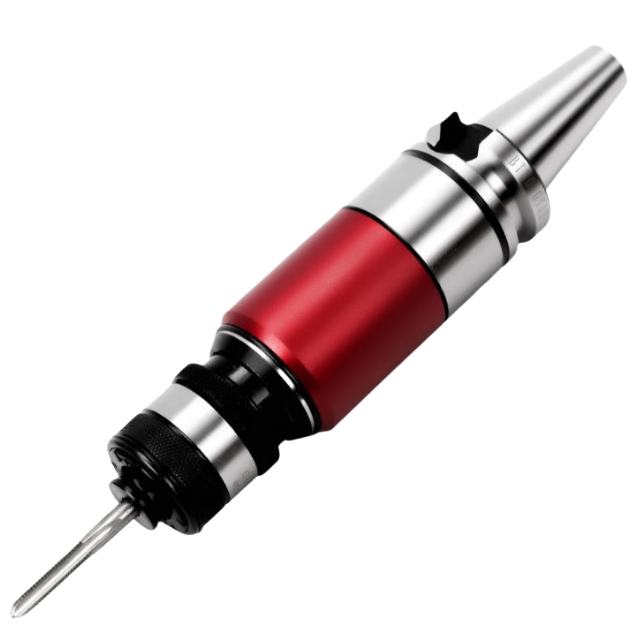

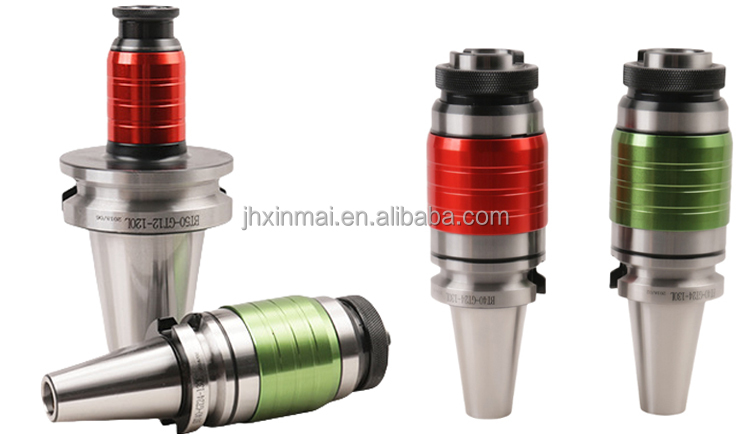

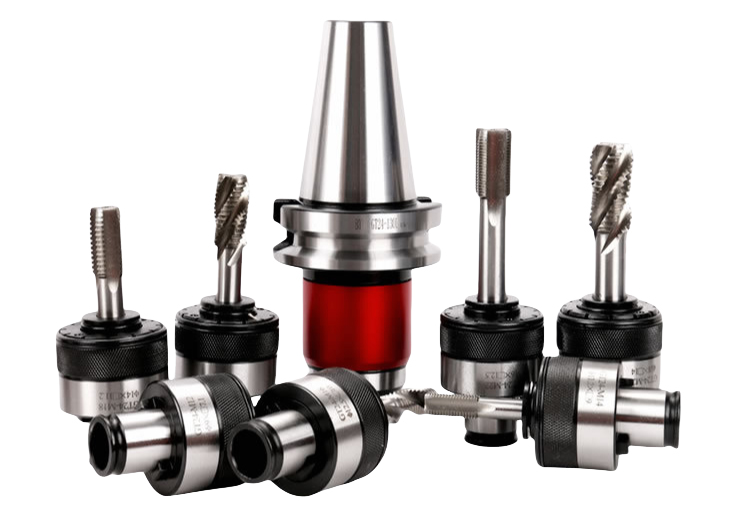

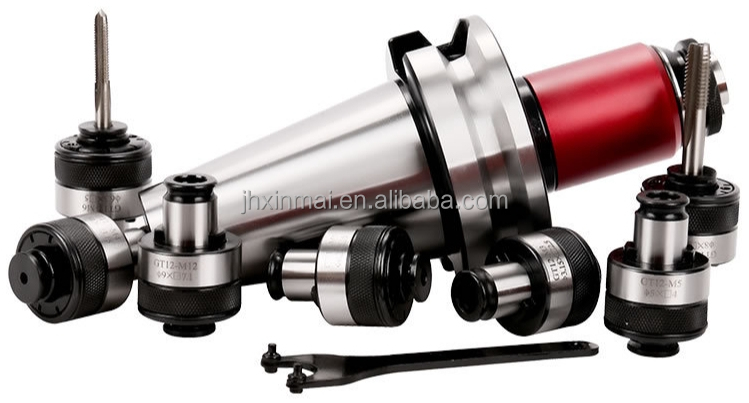

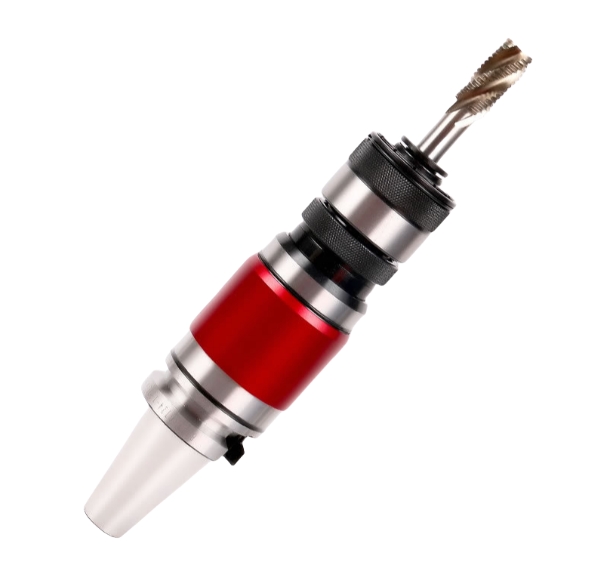

Feature：Torque overload protection prevents tap breakage. With floating, telescopic, quick change and other functions. Suitable for CNC machining centers, CNC milling machines and other machine tools.
Specification
Product Specification
Details
Product Name
High precision GT tapper handle
Application
CNC Machine Center
Model
BT30/40/50-GT12/24/42
Collet
Tapping collet
Hardness
HRC48-50
Accuracy
±0.003mm
Material
20 CrMnTi
Tapping Range
GT12:M3-M16 / GT24:M5-M30

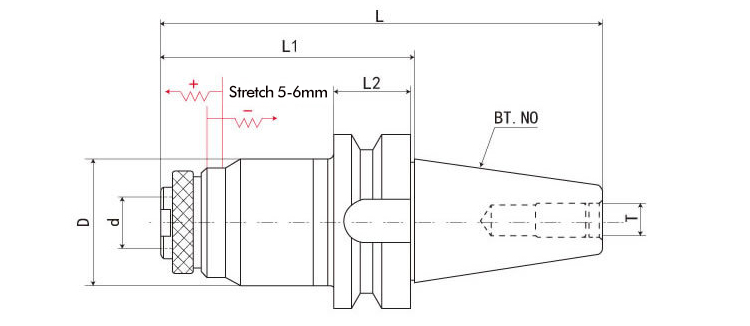

Product Parameter: GT12 Series
Model Number
Tapping Range
D
d
L
L1
L2
T
Collet Name
BT30-GT12-120L
M3-M16
46
19
168
120
20
M12
GT12
BT40-GT12-110L
M3-M16
46
19
175
110
25
M16
GT12
BT50-GT12-120L
M3-M16
46
19
222
120
35
M24
GT12

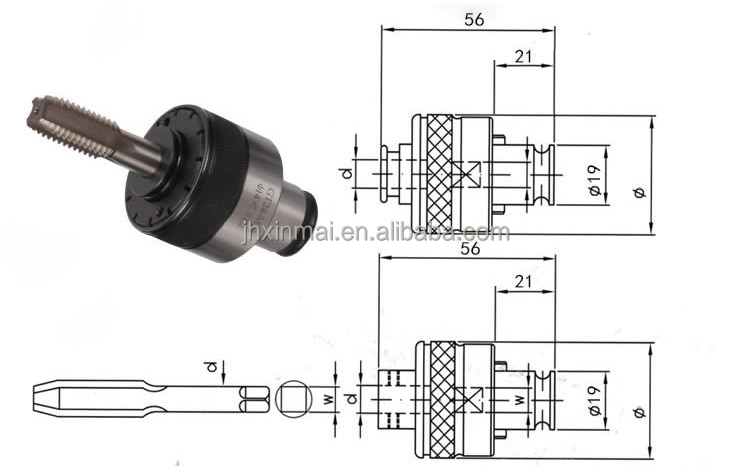

Model Number
Tapping Range
d
W
GT12-M3
M3
3.15
2.5*2.5
GT12-M4
M4
4
3.15*3.15
GT12-M5
M5
5
4*4
GT12-M6
M6
6.3
5*5
GT12-M8
M8
6.3
5*5
GT12-M10
M10
8
6.3*6.3
GT12-M12
M12
9
7.1*7.1
GT12-M14
M14
11.2
9*9
GT12-M16
M16
12.5
10*10

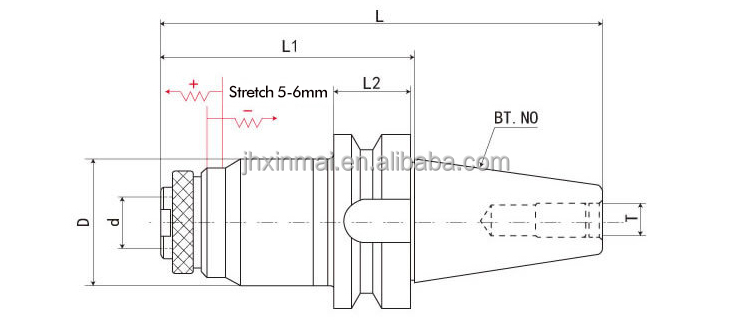

Product Parameter: GT24 Series
Model Number
Tapping Range
D
d
L
L1
L2
T
Collet Name
BT30-GT24-120L
M3-M30
66
30
168
120
20
M12
GT24
BT40-GT24-130L
M3-M30
66
30
195
130
25
M16
GT24
BT50-GT24-130L
M3-M30
66
30
232
130
35
M24
GT24

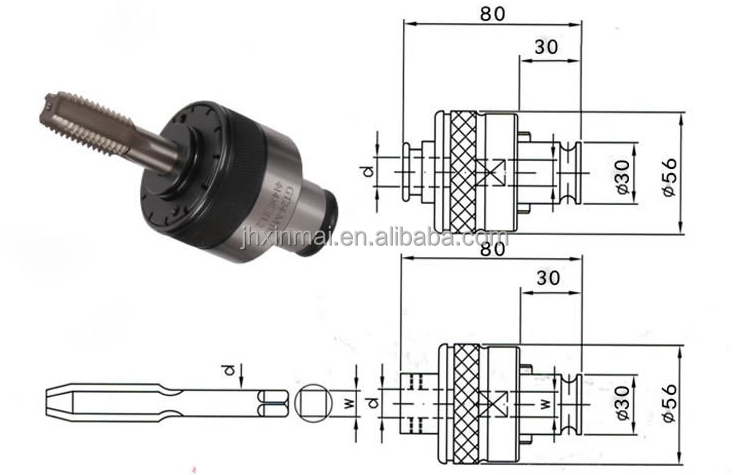

Model Number
Tapping Range
d
W
GT24-M5
M5
5
4*4
GT24-M6
M6
6.3
5*5
GT24-M8
M8
6.3
5*5
GT24-M10
M10
8
6.3*6.3
GT24-M12
M12
9
7.1*7.1
GT24-M14
M14
11.2
9*9
GT24-M16
M16
12.5
10*10
GT24-M18
M18
14
11.2*11.2
GT24-M20
M20
14
11.2*11.2
GT24-M22
M22
16
12.5*12.5
GT24-M24
M24
18
14*14
GT24-M27
M27
20
16*16
GT24-M30
M30
20
16*16

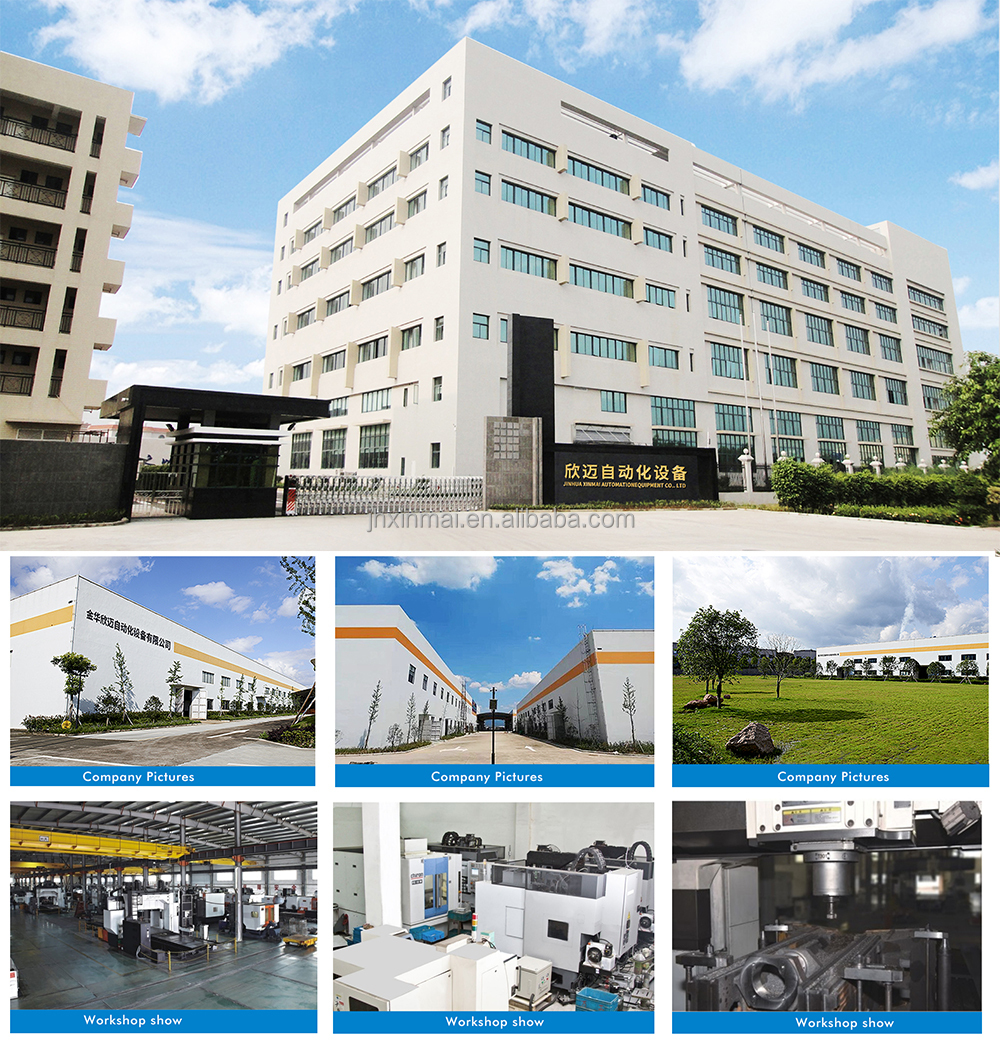

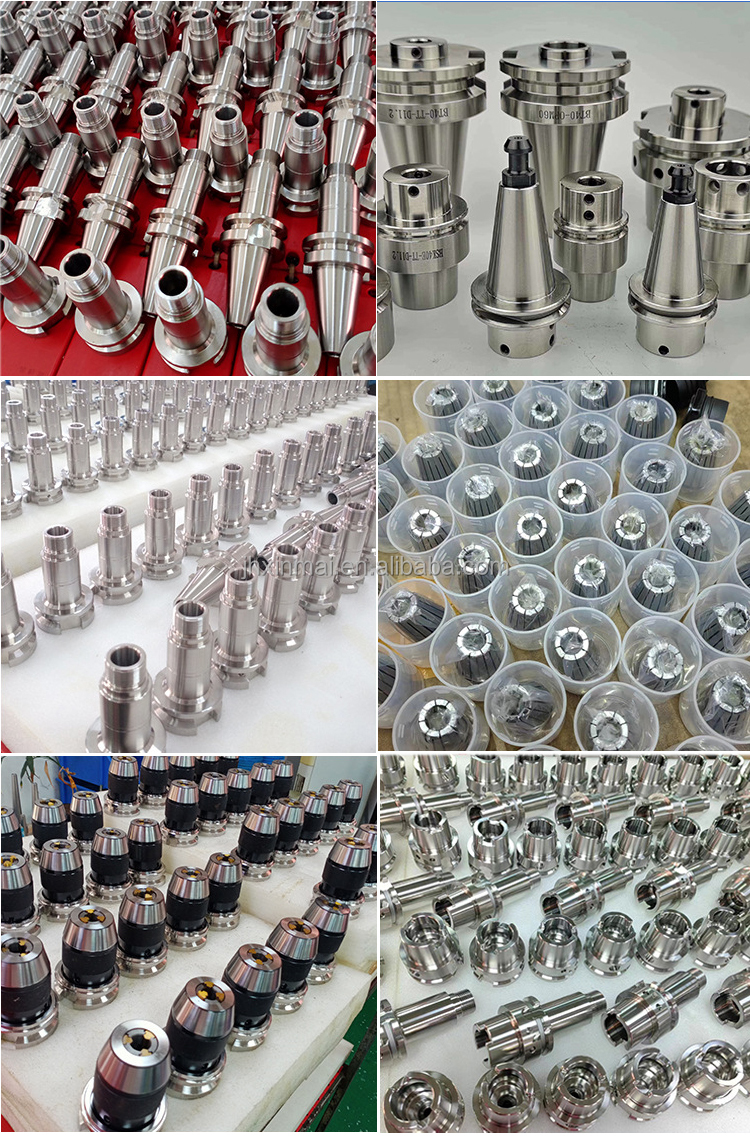

Company Profile
With more than 15 years of industry experience, our products have a wide range of applications in the field of machine tool processing center, including various types of machine tool equipment, Nc turret, CNC turntable and Angle head and other mechanical parts. These products are carefully designed and manufactured to meet a variety of different processing needs. In addition to the above products, we also offer a variety of transmission accessories, such as Ball screw, Linear guide, couplings, etc., to meet your various transmission needs. Our goal is to become your trusted one-stop machine parts procurement center, to provide you with high quality, high performance products, as well as excellent service. Whether you are looking for machine centers or other transmission accessories, we welcome you to choose our products.
Packaging & Shipping
In order to better ensure the safety of your goods, we will provide you with professional, convenient and efficient packaging services and transportation methods.
Frequently Asked Questions (FAQ)
Q1: What are the main features of the GT Tapper Handle?
A: The GT Tapper Handle features torque overload protection to prevent tap breakage. It also includes floating, telescopic, and quick-change functionalities for improved precision and efficiency.
Q2: Which machines are compatible with the GT Tapping Collets?
A: These tapping collets are designed for use with CNC machining centers, CNC milling machines, and other high-precision machine tools.
Q3: What materials and hardness levels are used in the GT Tapping Adapters?
A: Our tapping adapters are made from high-strength 20 CrMnTi steel, achieving a hardness rating of HRC48-50 and a precision accuracy level within ±0.003mm.
Q4: What are the tapping ranges for the GT12 and GT24 series?
A: The tapping range for the GT12 series is M3 to M16, and the GT24 series supports a tapping range from M3 to M30 (specifically M5 to M30 for the collets).
Q5: How does torque overload protection benefit the tapping process?
A: Torque overload protection automatically slips when the tapping resistance is too high. This prevents the tap from snapping inside the workpiece, saving tooling costs and preventing production downtime.
Q6: What packaging options are available for delivery?
A: We use professional, robust packaging solutions and reliable shipping methods to ensure your precision components arrive safely and in perfect working condition.
