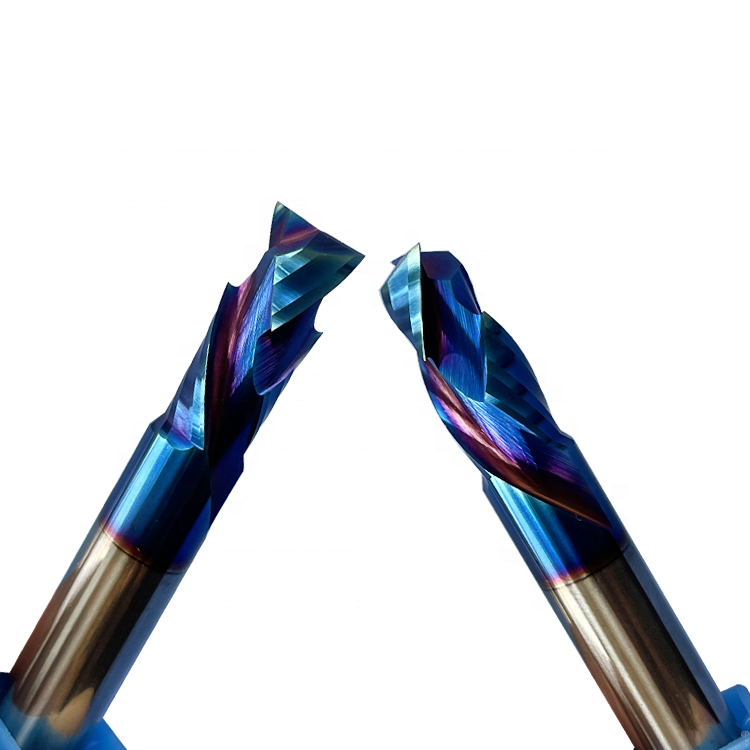

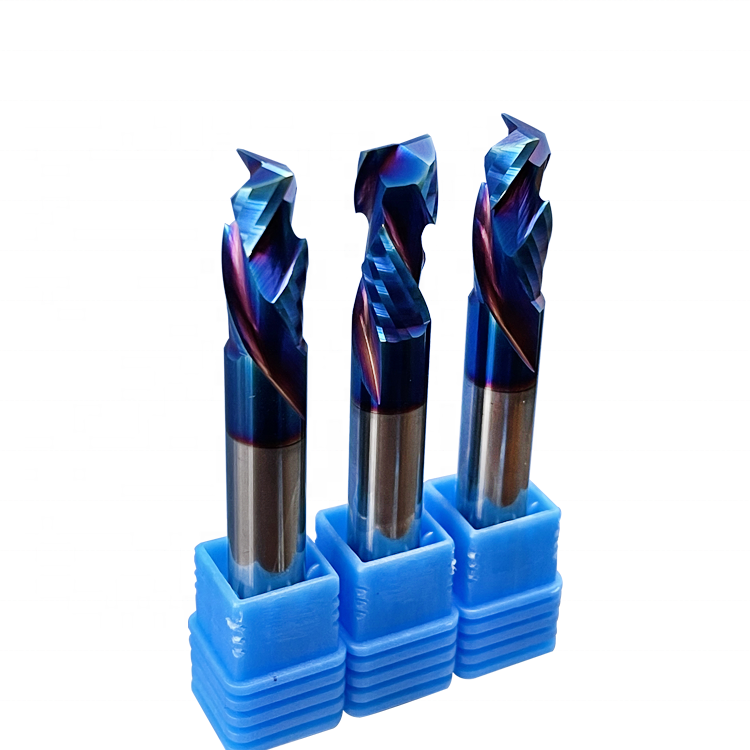

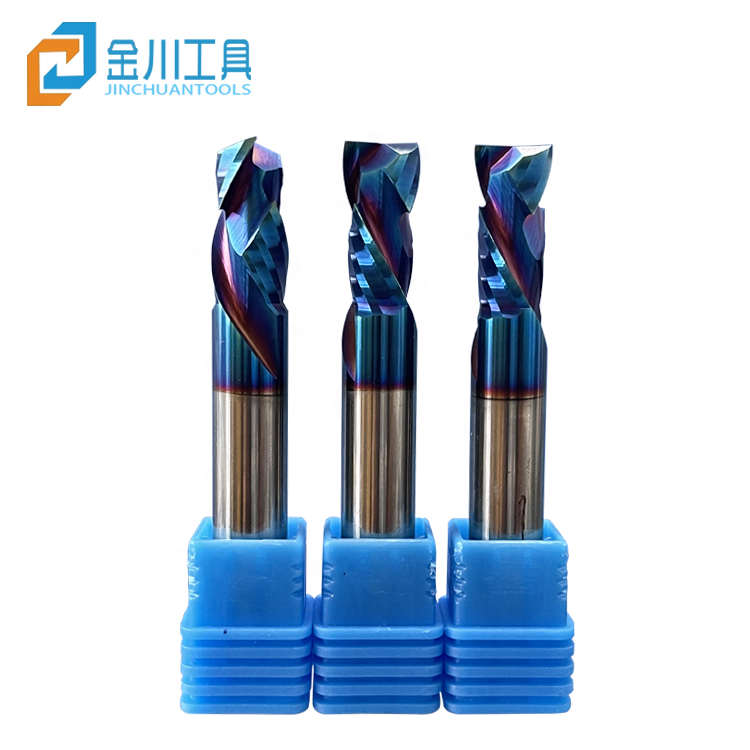

Jinchuan OEM/ODM Customization 2-Flute Carbide CNC Woodworking Spiral Router Bit Compression Cutter End Mills HRC45-60 4-12mm

1 / 5

Jinchuan OEM/ODM Customization 2-Flute Carbide CNC Woodworking Spiral Router Bit Compression Cutter End Mills HRC45-60 4-12mm

Send Inquiry

Product Description

Product Overview

If you need customized size and tools, please contact us directly.

Specifications & Details
Product Name	Double edge compound edge milling cutter
Material	Tungsten Carbide
Feed Rate	80%-100%
Cutting Shape	Side and surface processing
Applicable material	Acrylic, PVC, PC, PET, PMMA, MDF Board, Multilayer board, Plastic, Particleboard and all kinds of wood cutting.
Processing Effect	Cleaning surface and edge, sharp cutting edge, and long shelf life
Processing Suggestions	Choose the bits with cutting length of 2-5mm longer than the processing material
Features	Using mirror sharpening technology, large chip removal, sharp cutting edge, long shelf life, smooth surface.

Features at a Glance

5A Series Single Flute Down Cut Carbide End Mills

Key Features:
Sharp and wear-resistant, Cleaning Surface, Good chip removal, no sticking to the bits, not easy breaking.

💡 All the bits can be customized, please provide CAD drawing.

✔

Imported Material

✔

Precise Cutting and Milling

✔

High efficiency

✔

Good Chip removal

✔

Mirror Technology

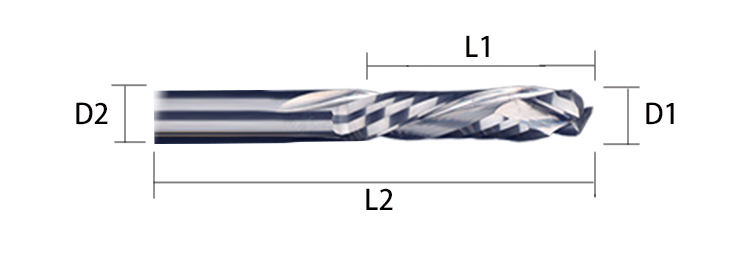

Product Specifications

Item No	Product Name	Shank (D2)	Diameter (D1)	Cutting Length (L1)	Overall Length (L2)	Blade number
JCSLFHL001	Double edge compound edge milling cutter	3.175	3.175	12	50	2F
JCSLFHL002	Double edge compound edge milling cutter	3.175	3.175	15	50	2F
JCSLFHL003	Double edge compound edge milling cutter	3.175	3.175	17	50	2F
JCSLFHL004	Double edge compound edge milling cutter	3.175	3.175	22	50	2F
JCSLFHL005	Double edge compound edge milling cutter	4	4	12	50	2F
JCSLFHL006	Double edge compound edge milling cutter	4	4	15	50	2F
JCSLFHL007	Double edge compound edge milling cutter	4	4	17	50	2F
JCSLFHL008	Double edge compound edge milling cutter	4	4	22	50	2F
JCSLFHL009	Double edge compound edge milling cutter	4	4	25	50	2F
JCSLFHL0010	Double edge compound edge milling cutter	4	4	28	55	2F
JCSLFHL0011	Double edge compound edge milling cutter	4	4	32	60	2F
JCSLFHL0012	Double edge compound edge milling cutter	6	6	17	50	2F
JCSLFHL0013	Double edge compound edge milling cutter	6	6	22	60	2F
JCSLFHL0014	Double edge compound edge milling cutter	6	6	28	70	2F
JCSLFHL0015	Double edge compound edge milling cutter	6	6	32	75	2F
JCSLFHL0016	Double edge compound edge milling cutter	6	6	42	90	2F
JCSLFHL0017	Double edge compound edge milling cutter	6	6	52	100	2F
JCSLFHL0018	Double edge compound edge milling cutter	8	8	22	60	2F
JCSLFHL0019	Double edge compound edge milling cutter	8	8	32	70	2F
JCSLFHL0020	Double edge compound edge milling cutter	8	8	42	80	2F
JCSLFHL0021	Double edge compound edge milling cutter	10	10	22	60	2F
JCSLFHL0022	Double edge compound edge milling cutter	10	10	32	80	2F
JCSLFHL0023	Double edge compound edge milling cutter	12	12	22	70	2F
JCSLFHL0024	Double edge compound edge milling cutter	12	12	32	80	2F

Note: Kindly please contact us directly if you need customized size. If you don't know how to choose the size, please inform us of the processing material, processing requirements, and cutting height, and we can recommend a more suitable size.

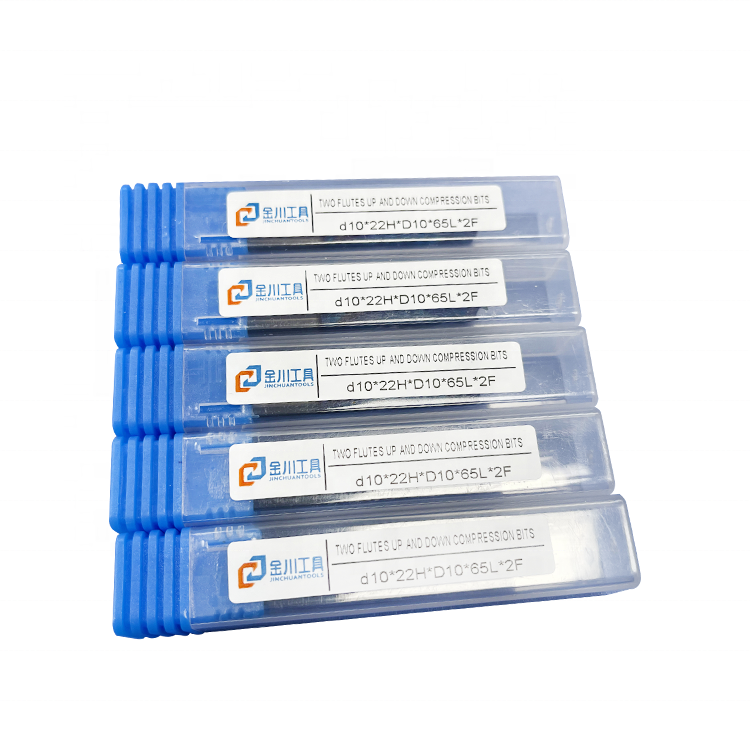

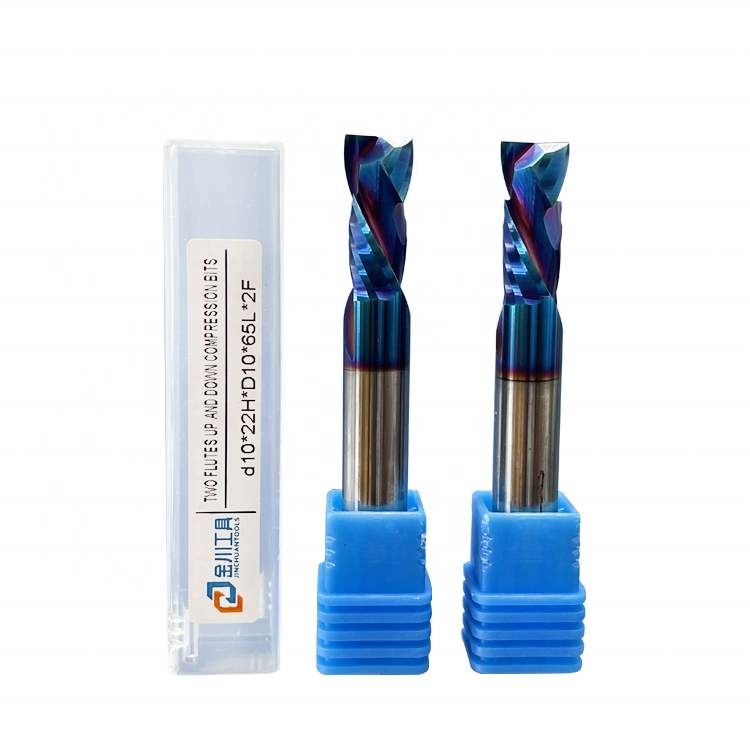

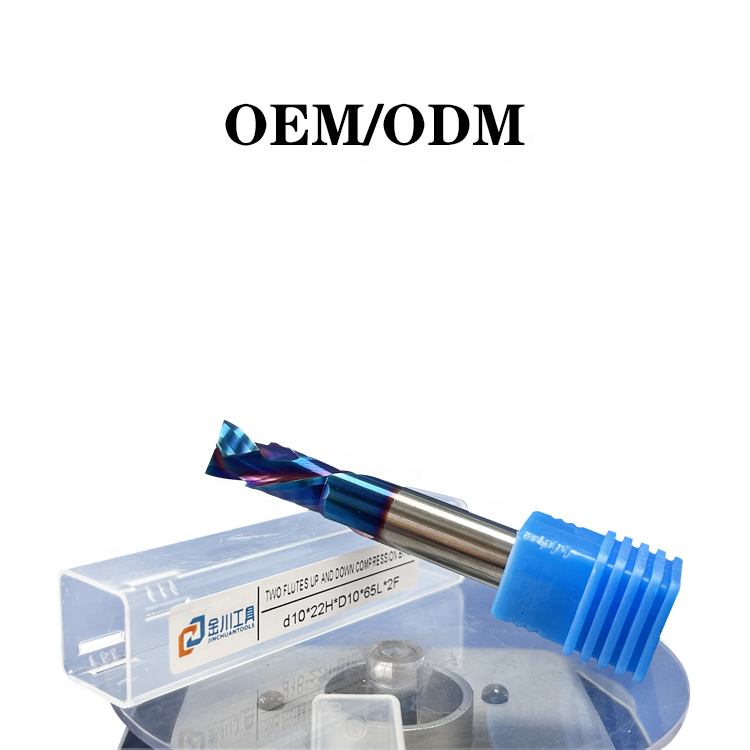

Product Gallery

Applicable Machines

Engraving Machine

Precise Engraving machine

CNC Machine

Applicable Materials

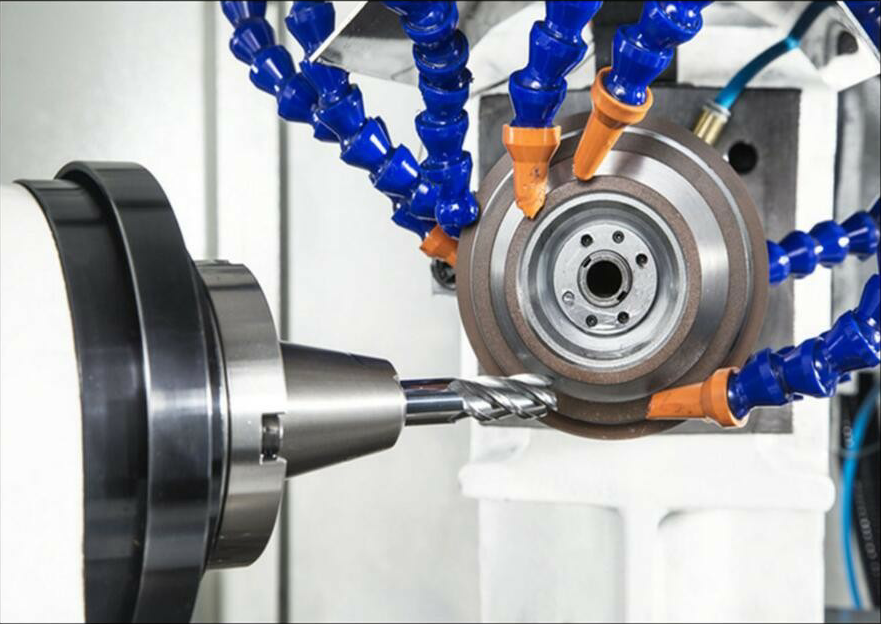

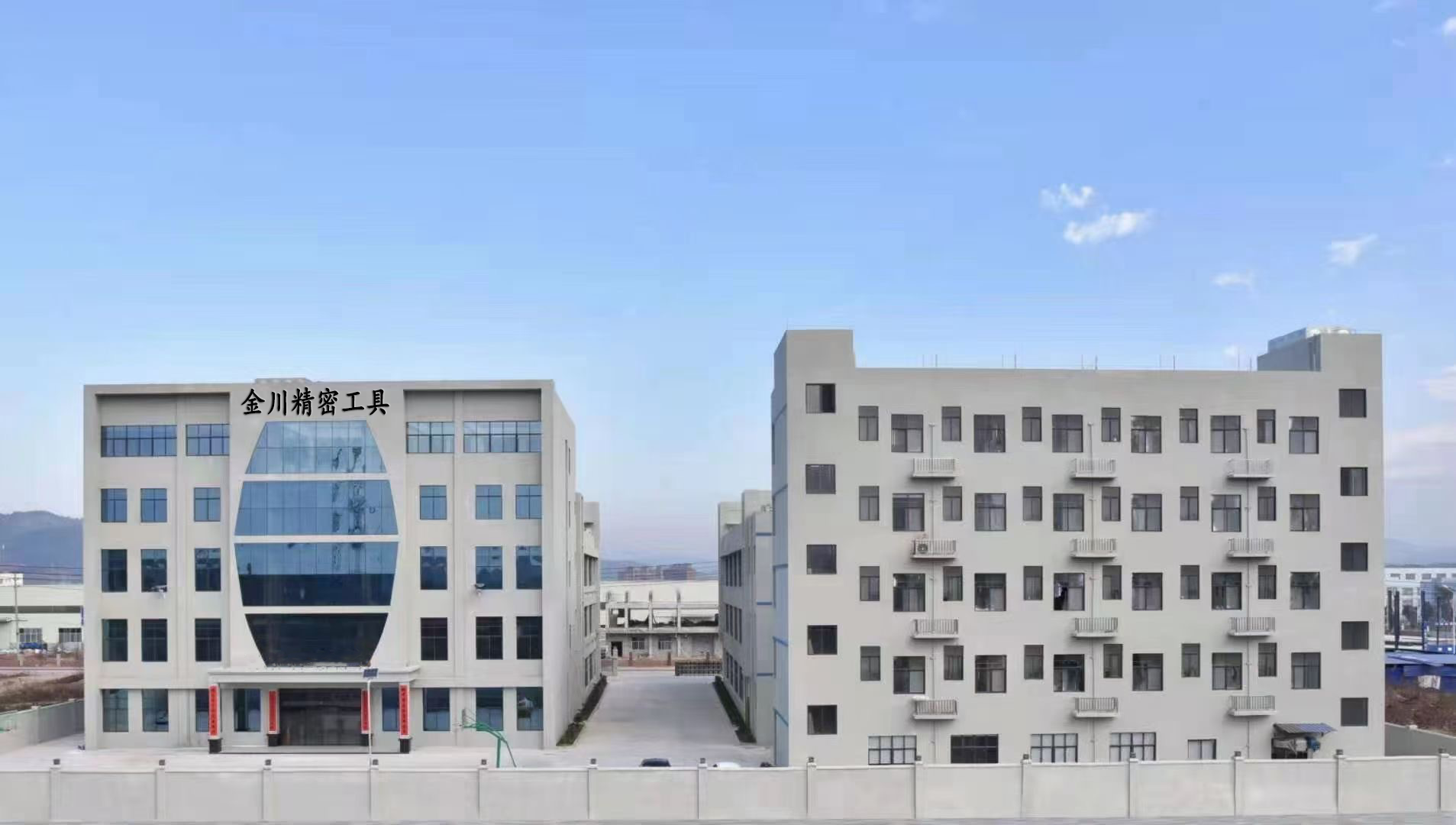

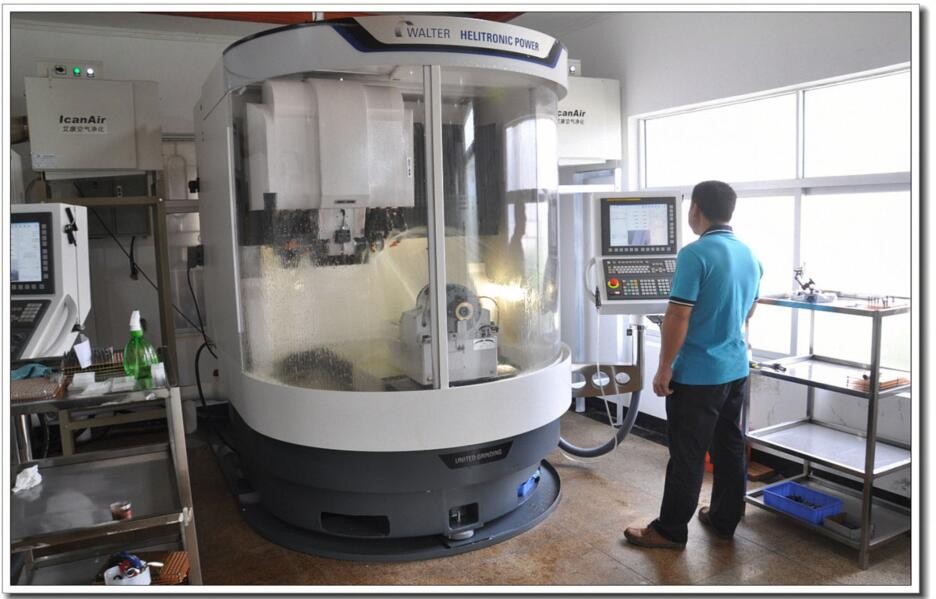

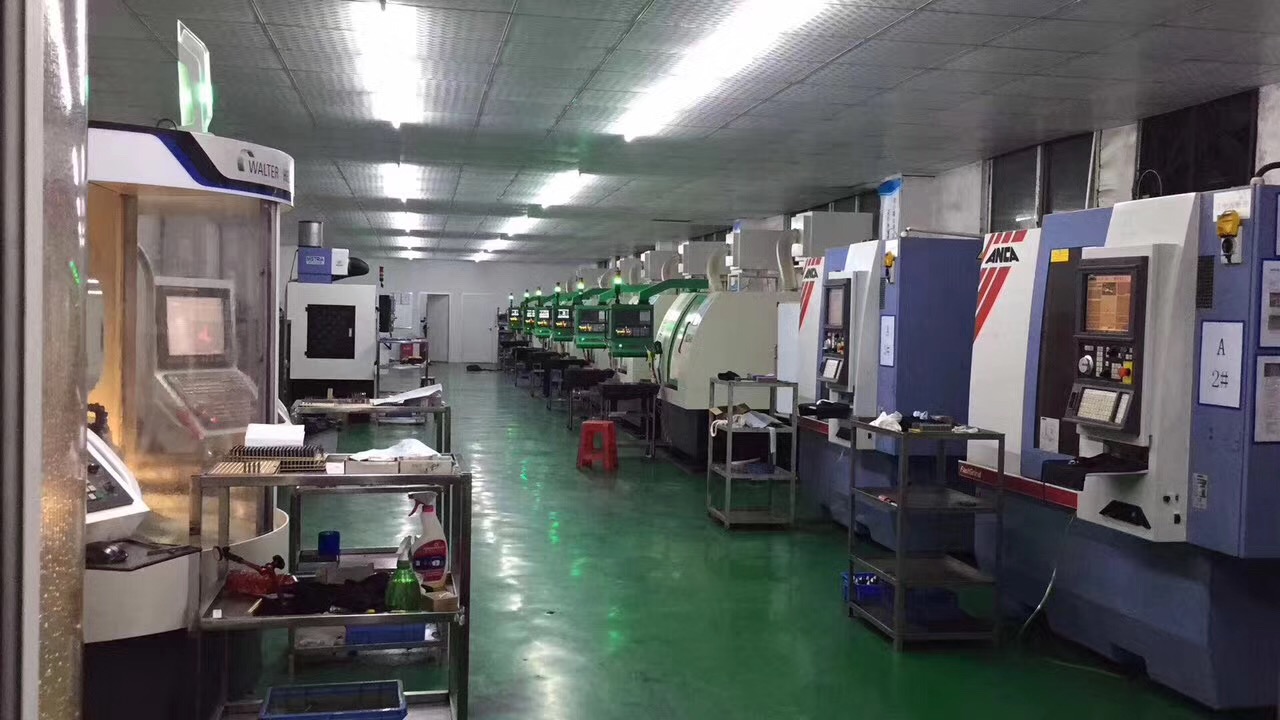

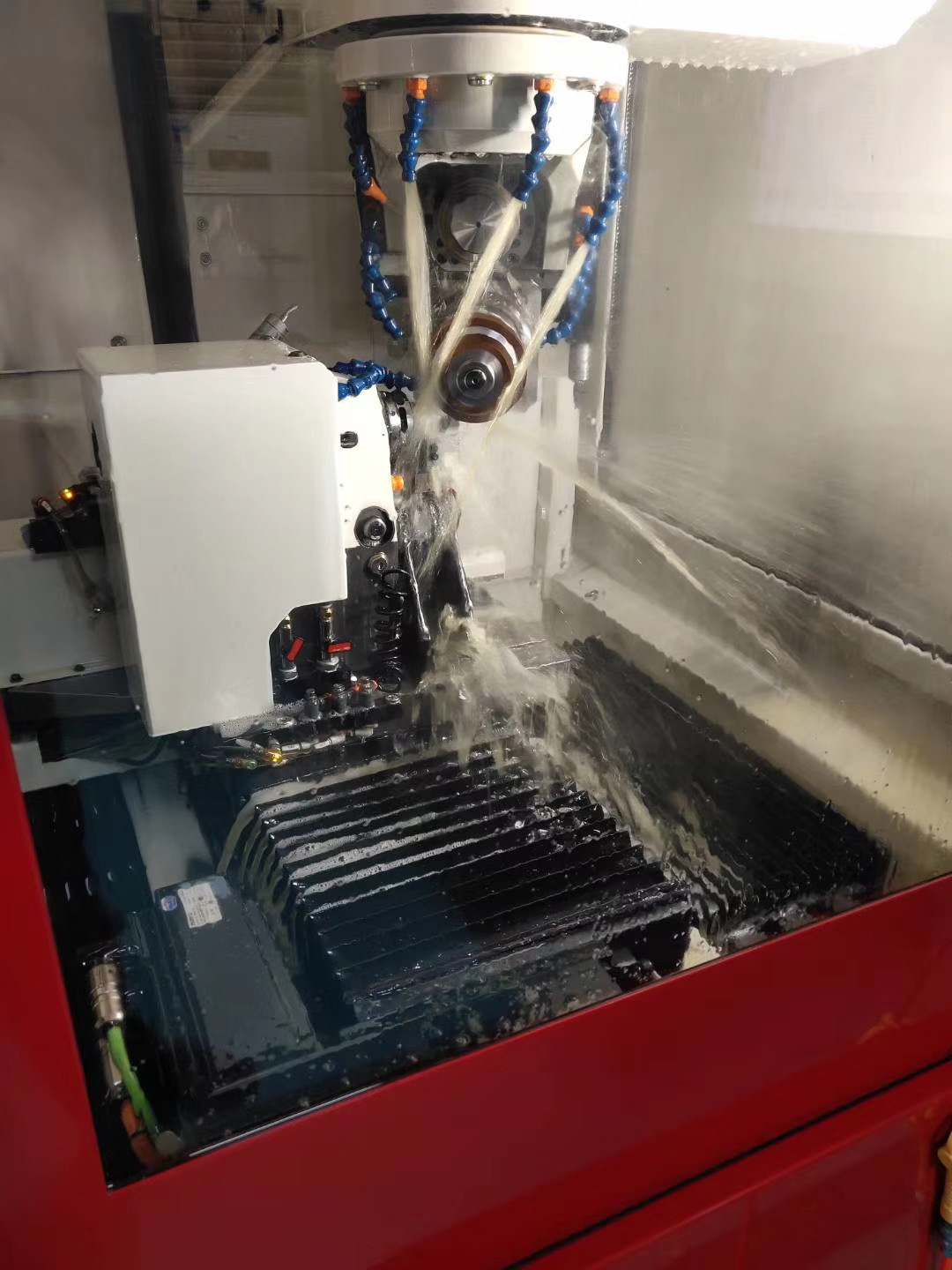

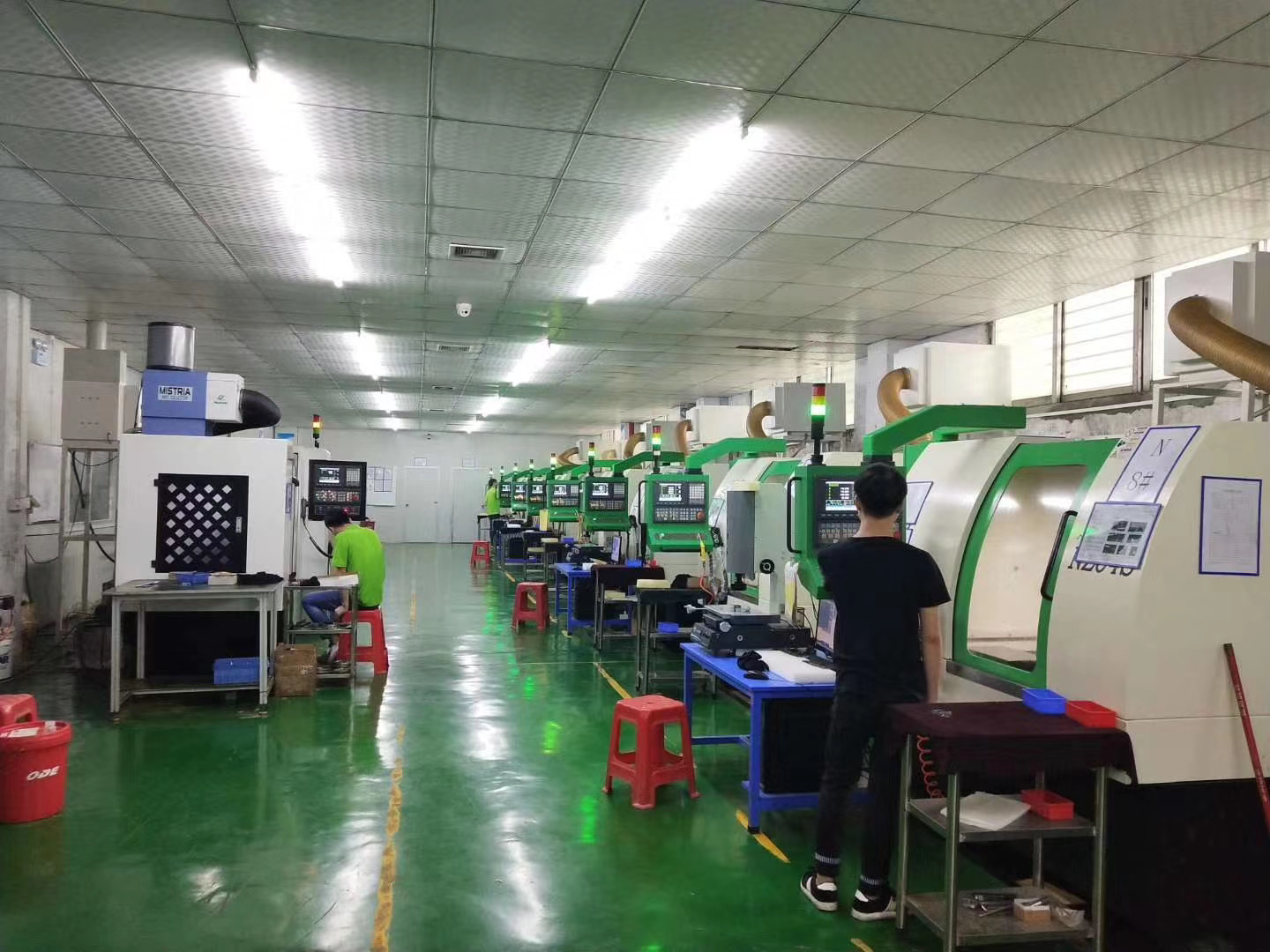

Manufacturing Facility

Exhibitions

Delivery Way

Frequently Asked Questions

What is the recommended processing speed of this tool?

We recommend 22000-24000 rpm/Min, and a feed rate of 1-5 m/Min.

Can PVC soft glass be processed?

Yes, it can efficiently cut PVC, Acrylic, and PP board.

Can it cut PS sheets?

Yes, but please note that PS sheets have a tendency to stick to the tools during processing.

Can it mill bakelite?

Yes, but you will need to slow down the feed speed. It is not generally recommended as it is easy to break. We recommend processing bakelite with a PCB corn milling cutter instead.

Is it okay to mill iron keyways with this tool?

No, it is not suitable for iron. It can cut aluminum alloy, but it is primarily designed for PVC, Acrylic, PC, PMMA, and PP Sheets.

Can this tool be used for drilling or on an electric drill?

It can perform drilling operations. However, it cannot be used on an electric drill. It is only applicable to machining centers that run above 20,000 rpm.
