| Model NO. | Notching tools |
| Logo Printing | Without Logo Printing |
| Size | Small |
| Customized | Customized |
| Type | Cutting Tool |
| Material | Carbide/PCD |
| Certification | ISO 9001:2008 |
| Finishes | Ground |
| Diameter | Multiple Sizes |
| Service | OEM/ODM Available |
| Application Range | for Machining Metal, Stone, Wood, etc |
| Similar Types | Carbide Rods, Pins, Tips, Needles, Punches |
| Transport Package | Plastic Box+Carton |
| Specification | Standard&Customized |
| HS Code | 8207509000 |
| Production Capacity | 5000000PCS/Year |
| Package Size | 10.00cm * 4.00cm * 2.00cm |
| Package Gross Weight | 0.280kg |

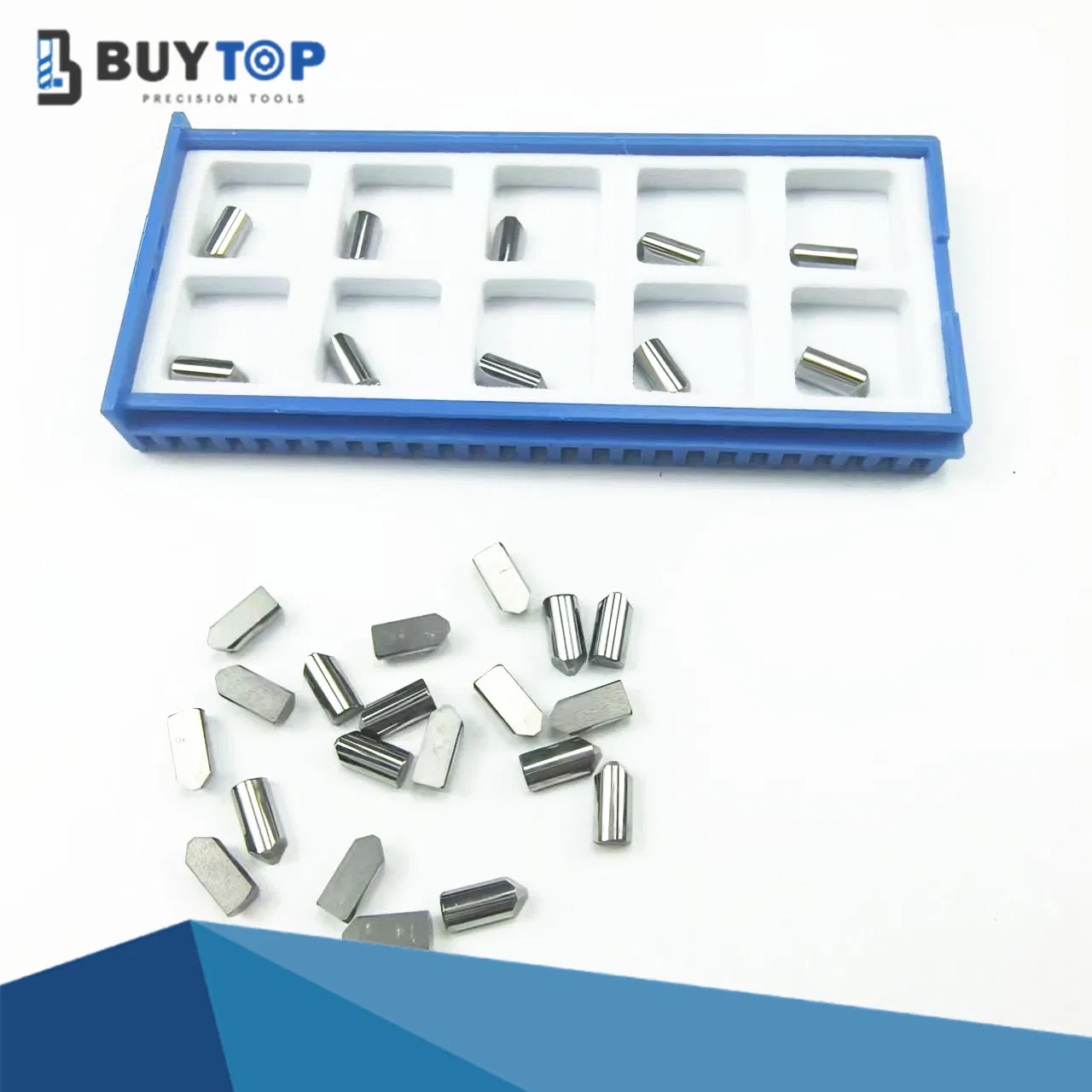

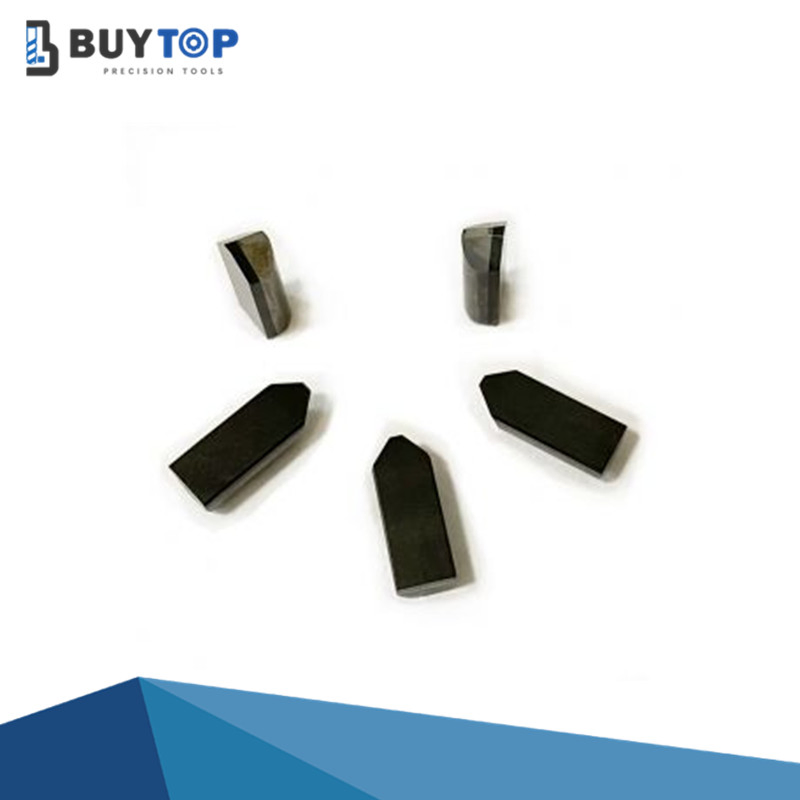

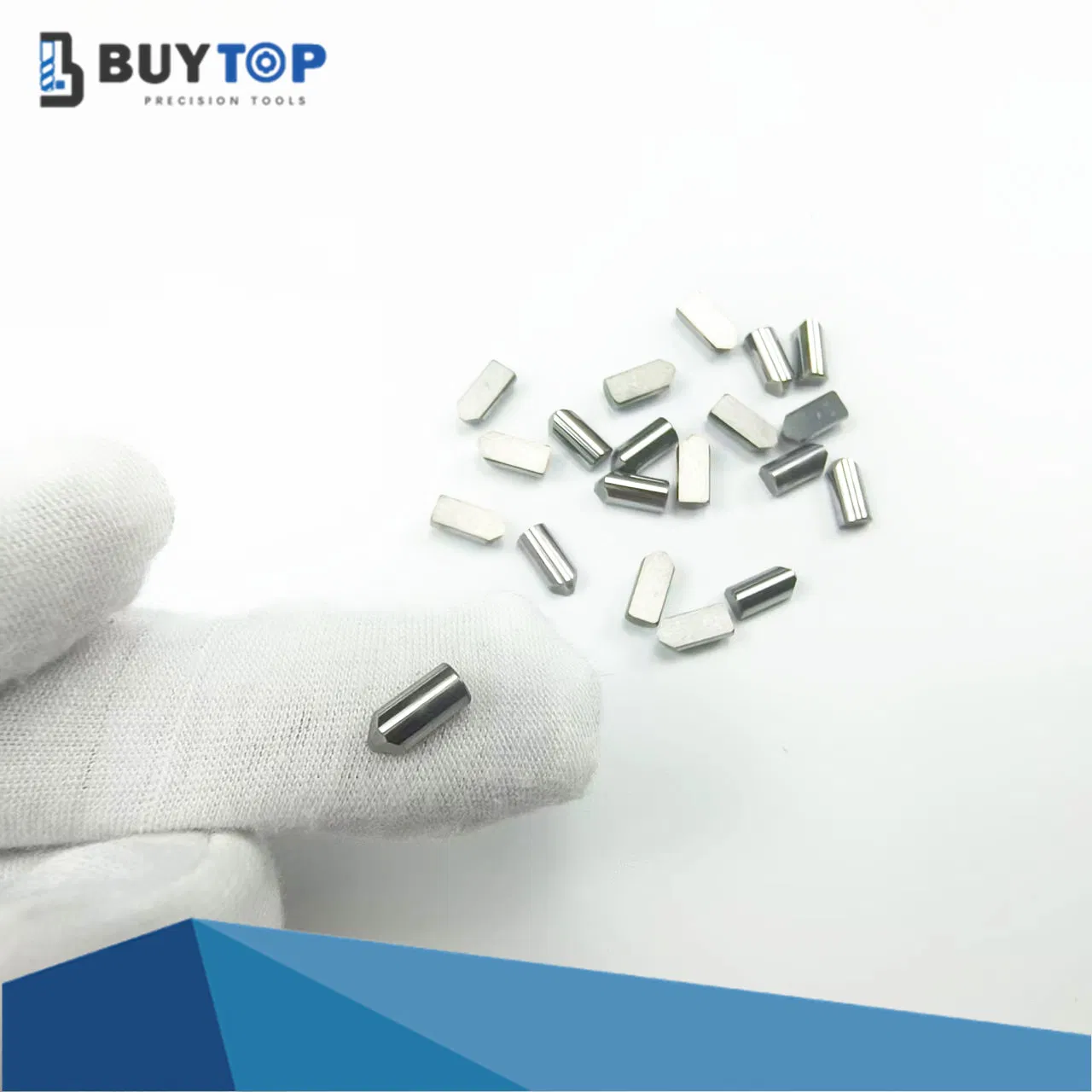

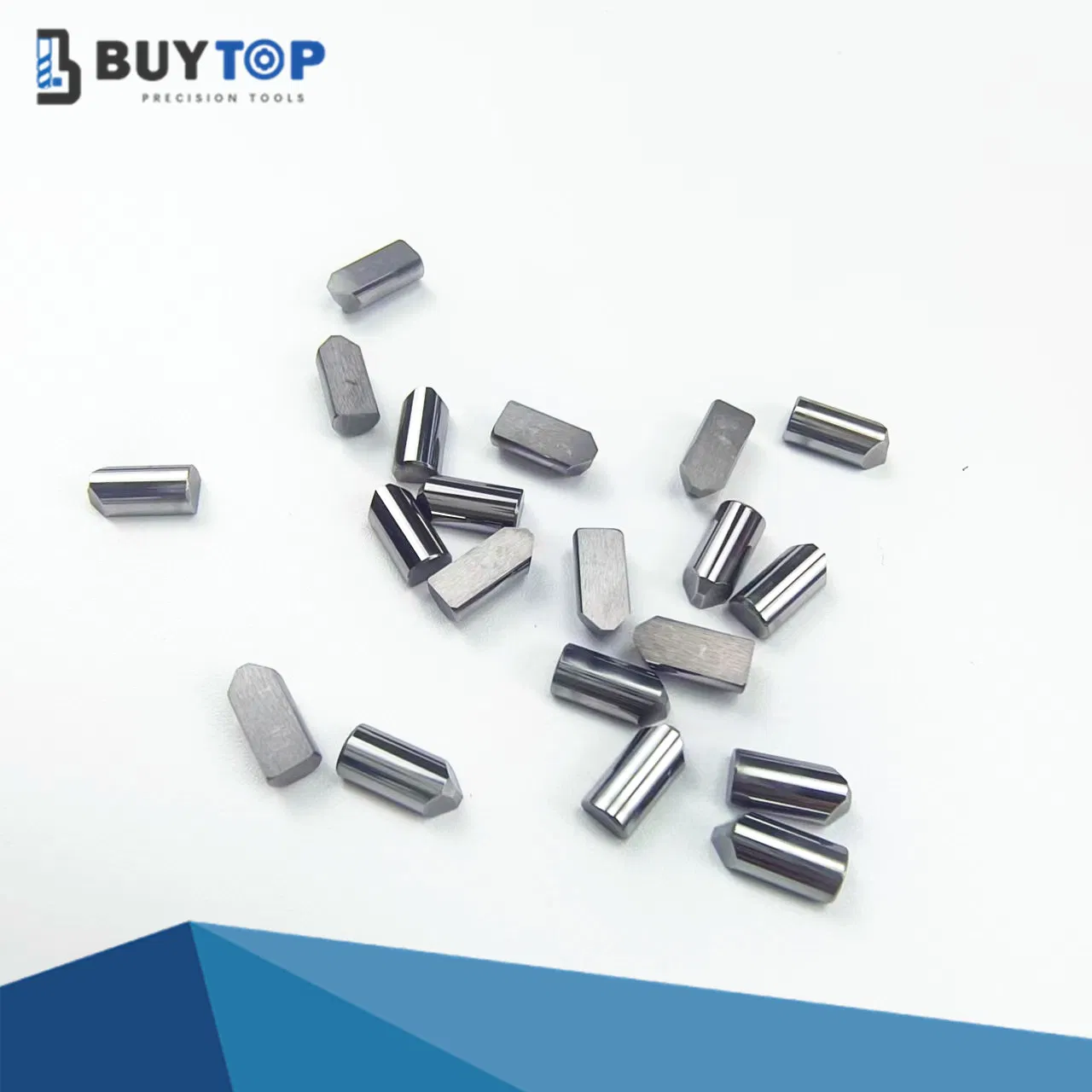

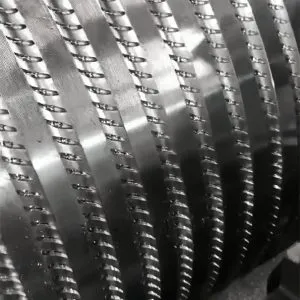

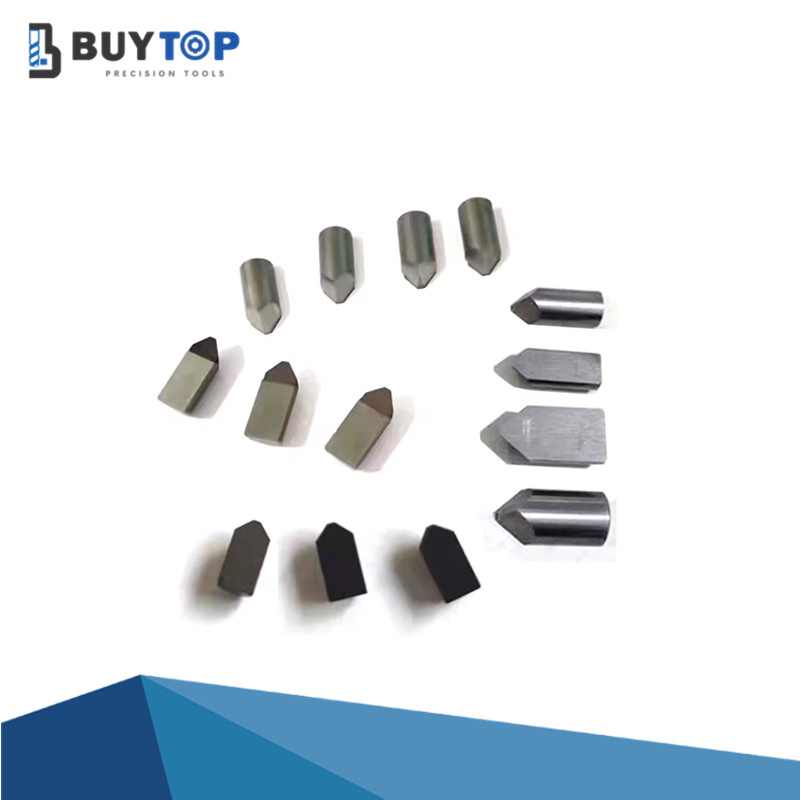

The Carbide and PCD boring tools are made by solid carbide or PCD blanks brazing on the tungsten carbide body. Most common is full face pcd notching tools. They are used for machining various of tungsten carbide rollers.
| Size | Basic dimension (mm) | ||||
|---|---|---|---|---|---|
| Td | TL | BS | Alfa | H | |
| N6 | 2 | 3.5-4.0 | 0.4 | 60/70/80/90 | 1.4 |
| N6 | 2.5 | 4.5--5 | 0.5 | 70/80/90 | 1.6 |
| N6 | 2.7 | 4.5--5.5 | 0.5 | 70/80/90 | 1.6 |
| N8 | 3 | 5.5--6.5 | 0.5 | 70/80/90 | 1.8 |
| N8 | 3.2 | 5.5--6.5 | 0.6 | 70/80/90 | 1.9 |
| N10 | 4 | 6.5--9.5 | 0.7 | 80/90 | 2 |
| N10 | 4.5 | 6.5--10.5 | 0.9 | 80/90 | 2.5 |
| N14 | 5 | 8.5--11 | 1.2 | 80/90 | 2.5 |
| N16 | 6 | 10-11.5 | 1.4 | 90 | 3 |
| Grade | Density(g/ cm3) | Hardness (HRA) | T. R. S (MPa) | Grain size (μm) | Composition (%) | Equal to ISO |
|---|---|---|---|---|---|---|
| YL10.2 | 14.4~14.6 | ≥92.2 | ≥4000 | 0.6~0.8 | 10%Co 90%WC | K30 |
| YG6X | 14.85~15.0 | ≥92.0 | ≥1860 | 0.8~1.0 | 6%Co 94%WC | K10 |
| YG15 | 14.0~14.1 | ≥85.0 | ≥2800 | 1.2~2.0 | 15%Co 85%WC | / |
| YG10 | 14.5~14.6 | ≥85.5 | ≥2600 | 1.2~2.0 | 10% Co 90%WC | K20 |
| YG8 | 14.65~14.85 | ≥89.5 | ≥2320 | 1.2~2.0 | 8%Co 92%WC | K20 |
| YG6 | 14.85~15.05 | ≥90.0 | ≥2150 | 1.2~2.0 | 6%Co 94%WC | K10 |

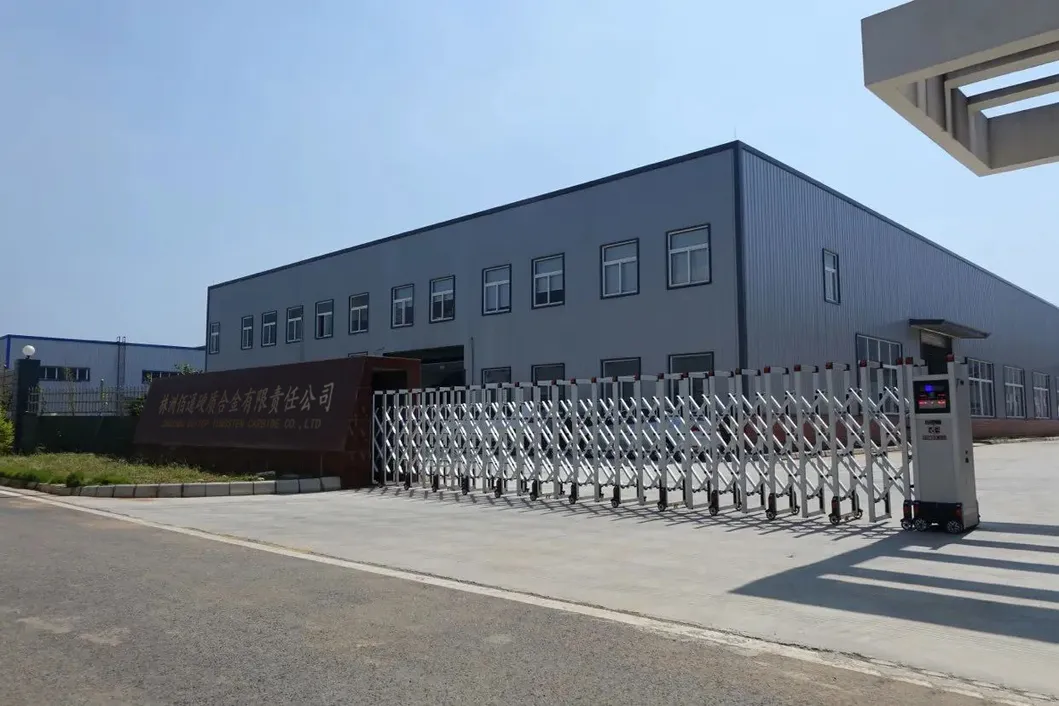

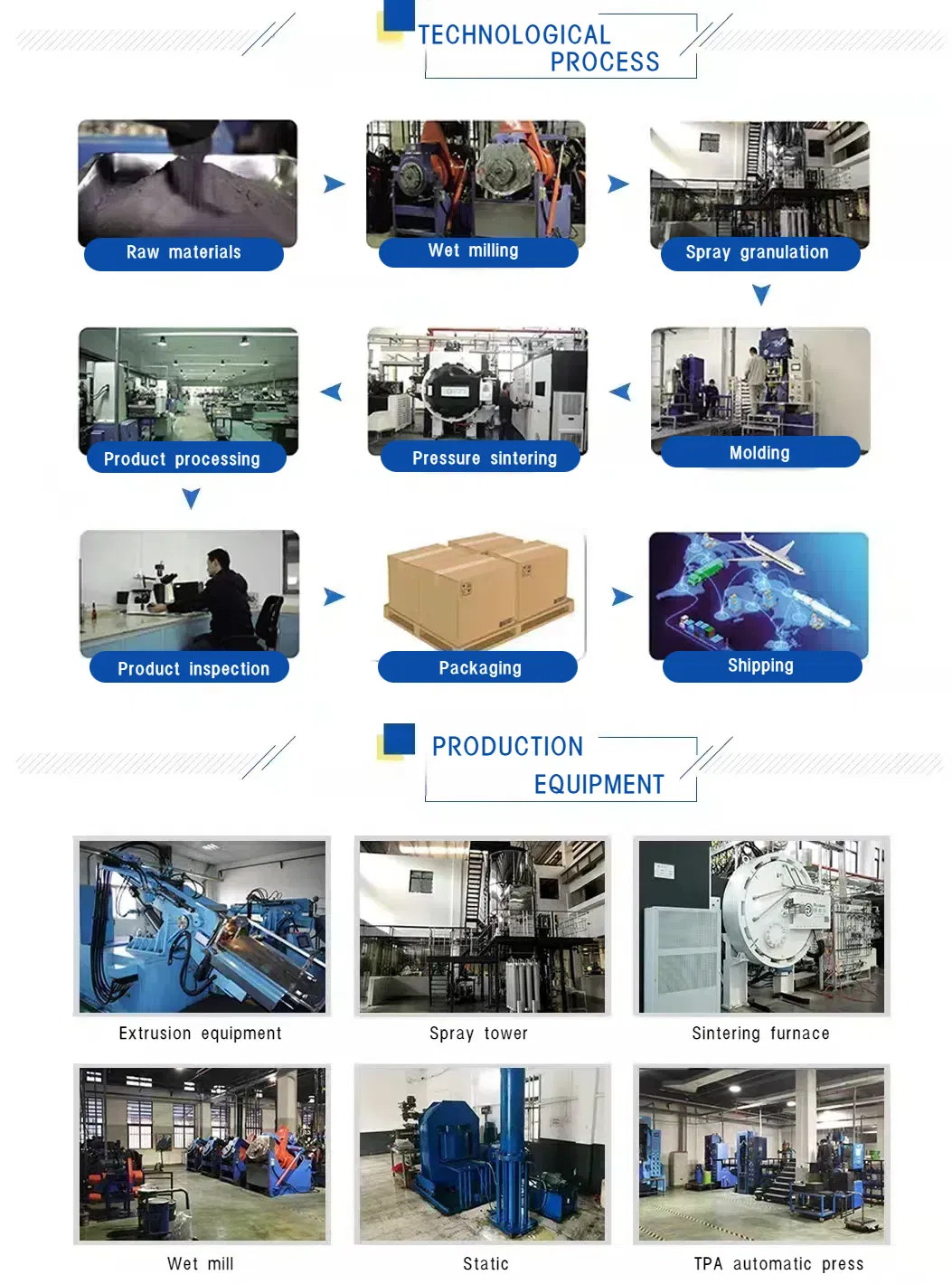

We have more than 22 years' experience in manufacture, design and sale of various kinds of carbide products, especially carbide cutting tools and carbide non-standard shaped tools. The factory has ISO 9001:2008 quality system, possesses advanced production equipment's, complete testing instruments, strong R&D center, and QC team. Over the decade, we have actively collaborated with researcher and university to enhance the carbide tools design and tool life, we have successfully helped our customer to reduce their cost and gain more market share with us. Our mission and vision are to help customer solve the business needs by providing One-Stop Procurement peace of mind solution with various tungsten carbide material and carbide tools to all customers all over the world.
