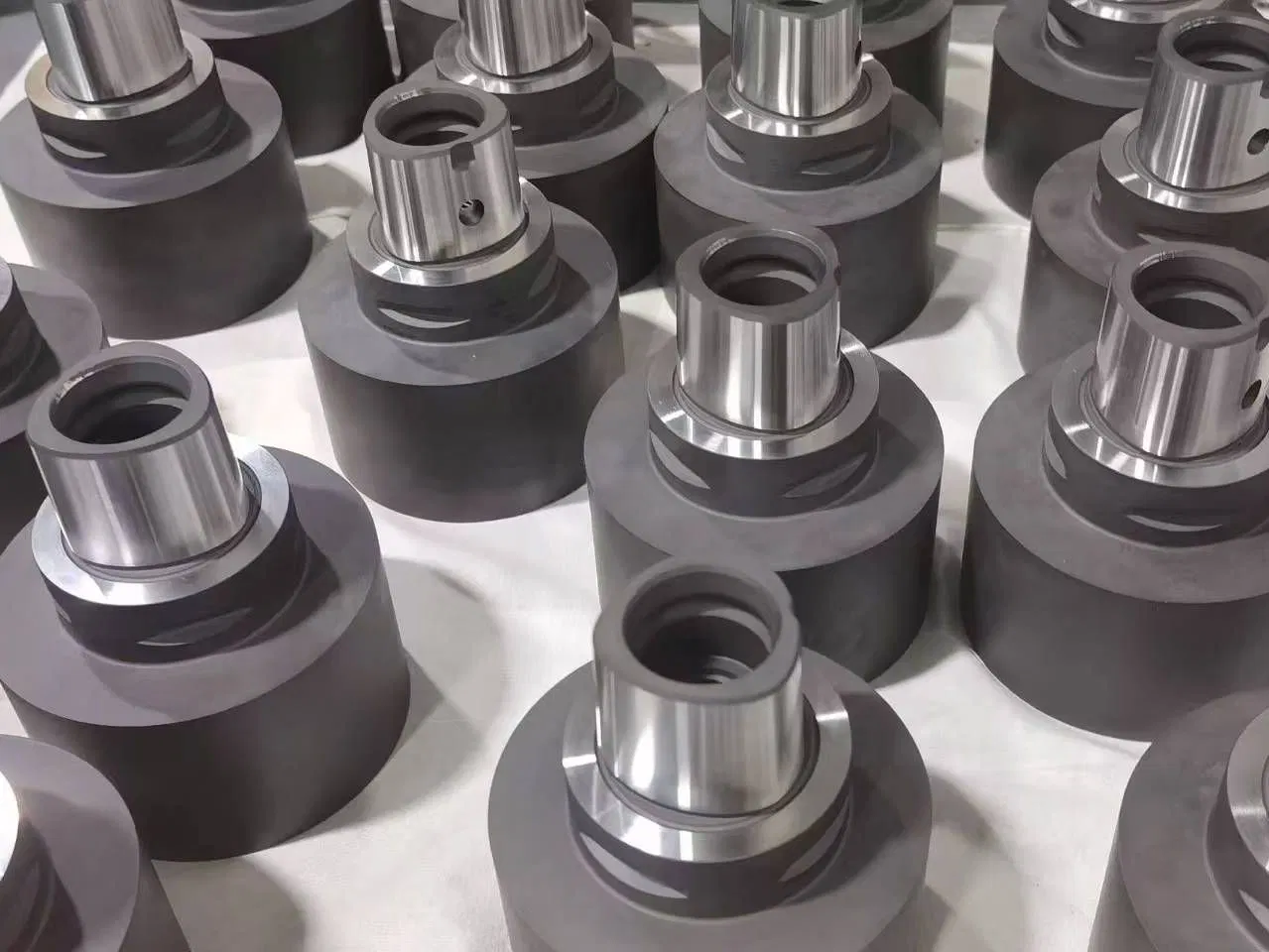

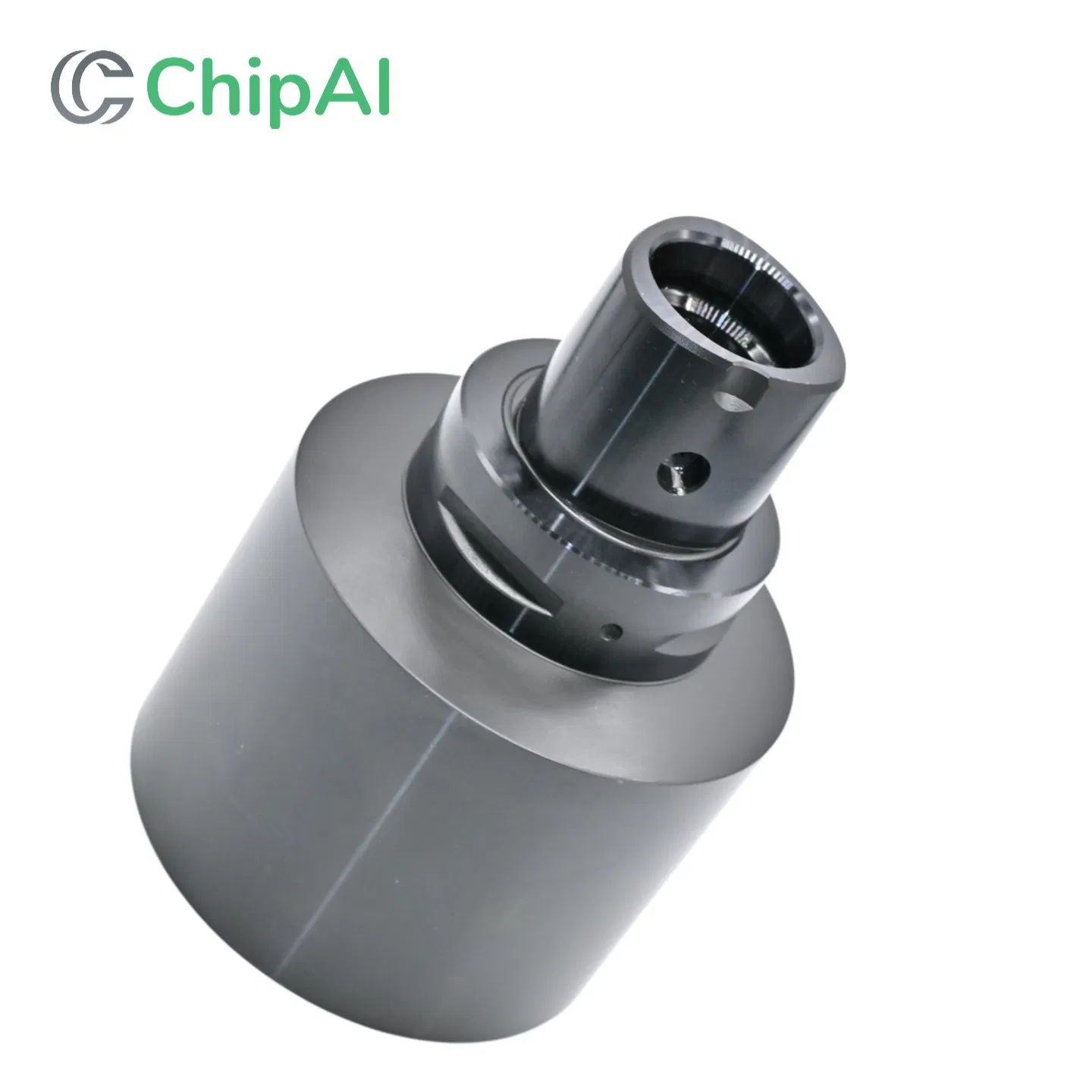

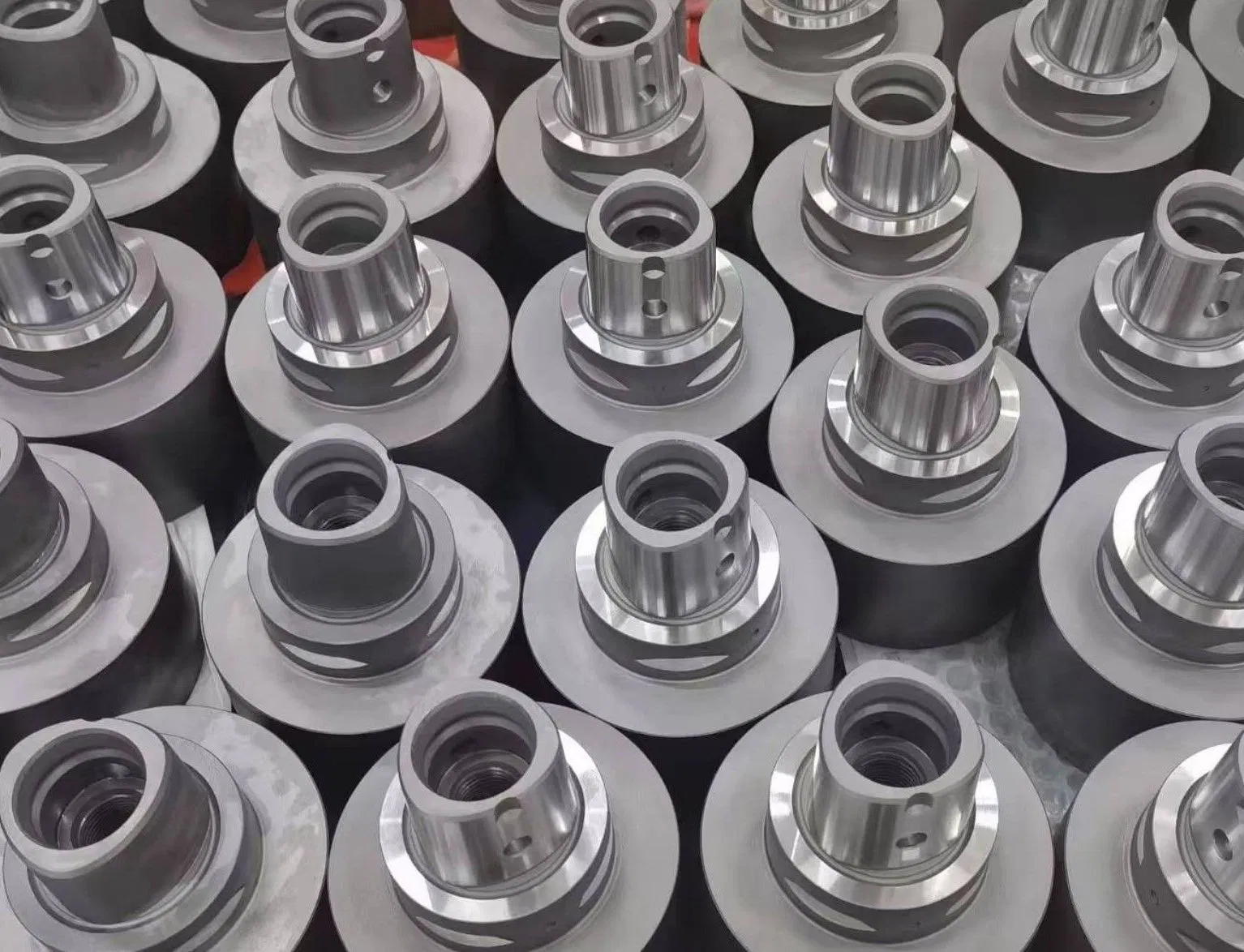

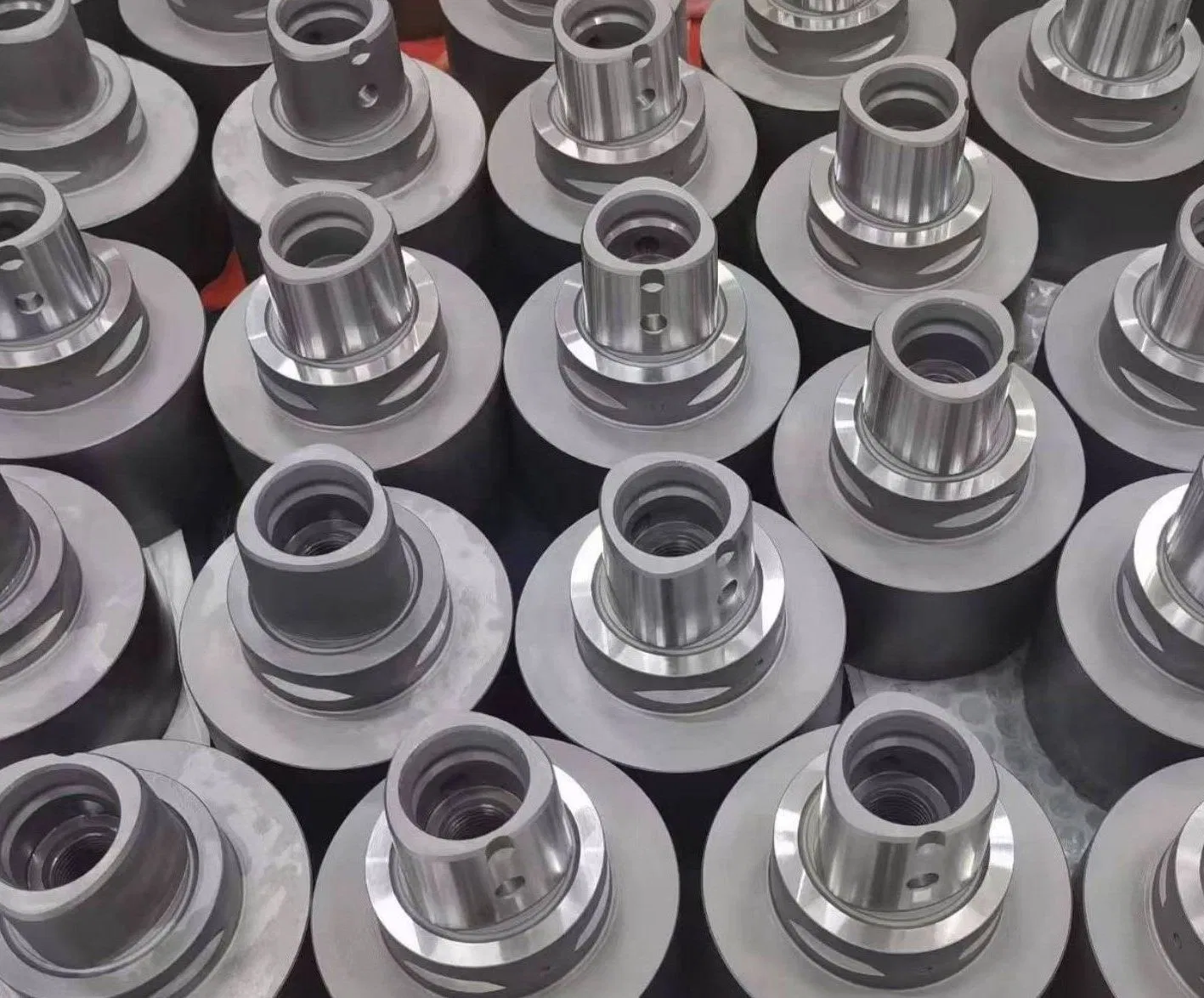

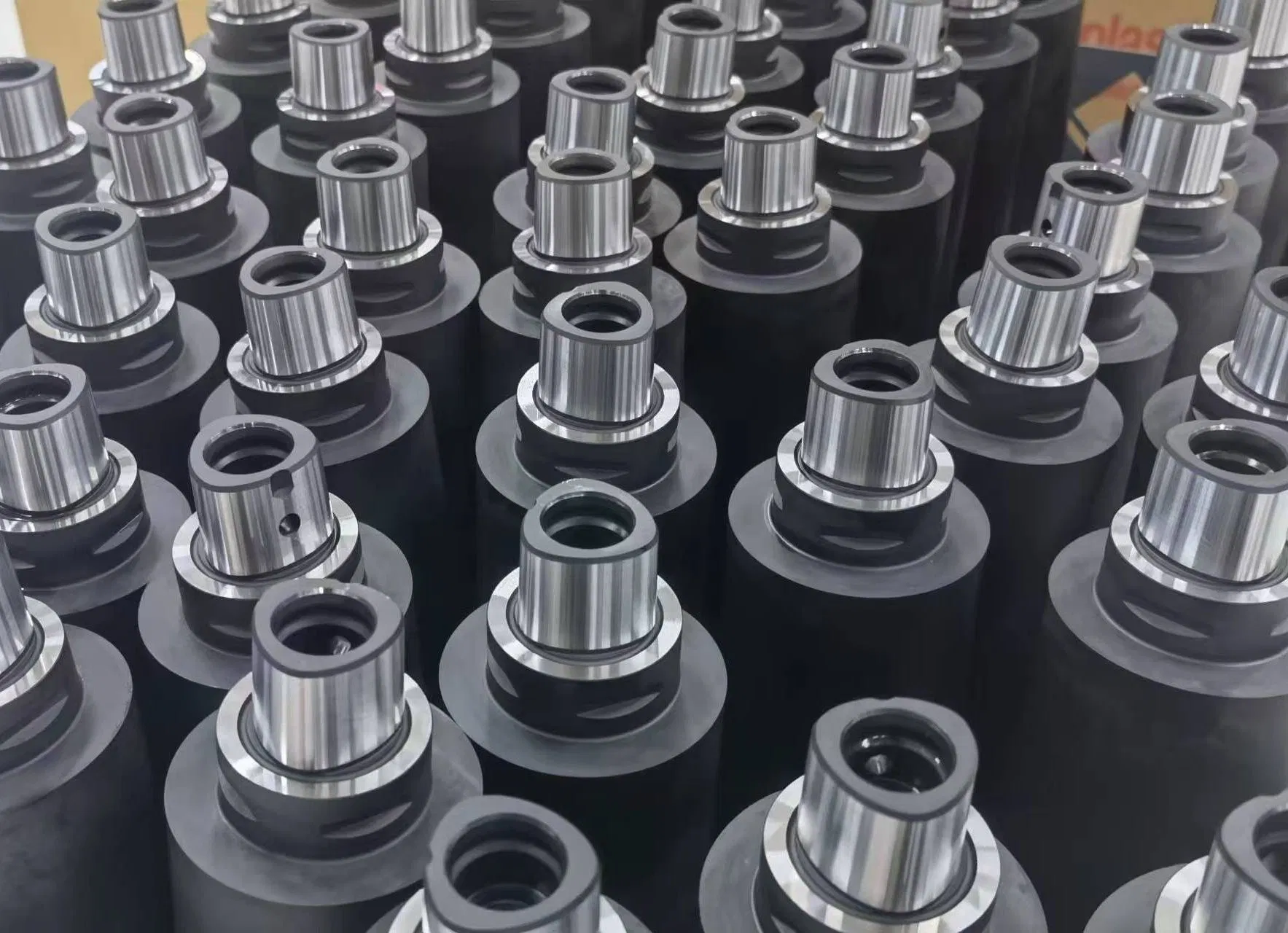

Psc63 Blank Used for Psc Turning, Psc Milling, Psc Drilling and Psc Boring Tools Production

Customization:	Available
Type:	Psc Blank
Machine Compatibility:	Multi-Task

Basic Info

Model NO. PSC63 BLANK

Product Name Psc63 Blank

Workpiece Material Tooling Steel

Process Usage Turning, Milling, Drilling and Boring

Weight 0.2 Kg

Coating Blank

Transport Package 1 PCS in Plastic Box

Specification PSC63

Production Capacity 5000PCS/Year

HS Code 8208101100

Packaging & Delivery

Package Size 10.00cm * 10.00cm * 20.00cm

Package Gross Weight 0.500kg

Product Parameter

Parameter Key	Specification Details
Product Name	PSC Internal Turning
Standard number(STDNO)	ISO26623-1
Body material (BMC)	Steel
Model Range	PSC32/40/50/63/80/100
Keywords	Internal turning for hole
Positioning Accuracy	±0.002mm
Length	From 30mm To 200mm (standard). Support special length.
Clamping Method	Hook/Platen/Screw
Finish	Black
Application	Turning, Boring...

Production and QC

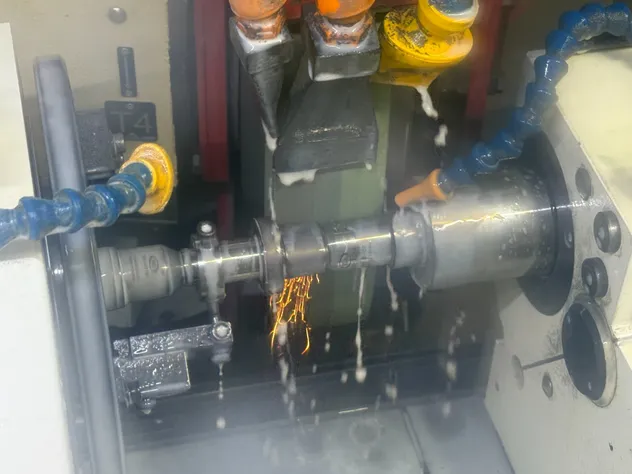

Male coupling grinding

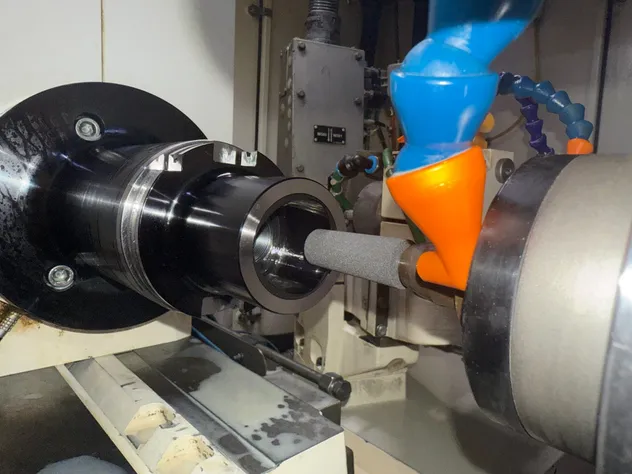

Female coupling grinding

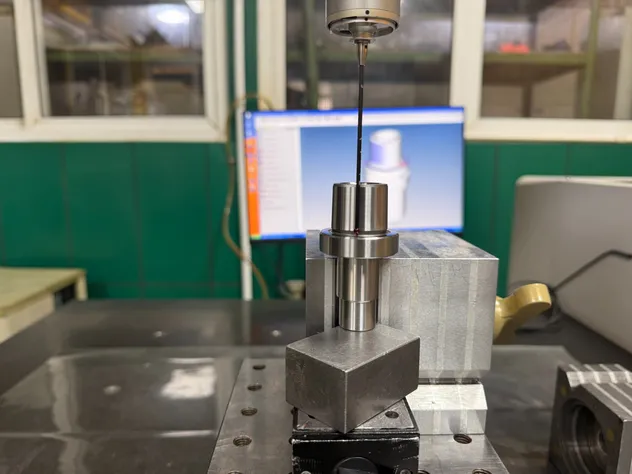

ZEISS QC

Product Description

PSC Products

Includes PSC external turning, PSC internal turning, PSC parting and grooving, PSC threading, PSC multi-task tools, PSC Static Holder, PSC Driven Tool Holder, PSC ATC System, PSC Pallet...

20+ years of experience in the PSC field, Studer grinding machines.

C3 to C10 range sizes available.

Most of the PSC items are kept in stock for fast delivery.

Key Features and Parameters

PSC Holders, Tapered Polygon Shape The PSC holder has a unique triangular/polygonal tapered shape. This design ensures the holder is self-centring and eliminates the need for drive keys.

Dual-Contact Interface The holder makes contact on both the taper and the flange face. This "double contact" provides extreme rigidity and resistance to bending forces, which is critical for heavy-duty milling and long-reach boring.

High Torque Transmission Because the entire polygon shape acts as a drive, torque is transmitted evenly across the surface. This allows it to handle much higher torque than HSK or steep taper (BT/SK) holders of comparable size.

Micron-Level Repeatability It offers exceptional precision (typically within ± 2 µm ). This means you can preset tools offline and swap them into the machine without needing to re-measure tool offsets, significantly reducing setup time.

Modular Versatility The same interface is used for static turning and rotating milling tools. This allows a shop to use a single set of adapters across different machine types (lathes, mills, and multitasking centres).

Internal High-Pressure Coolant Most PSC holders are designed with through-coolant capabilities as standard, supporting high-pressure delivery (up to 200 bar) directly to the cutting edge.

Key Advantages

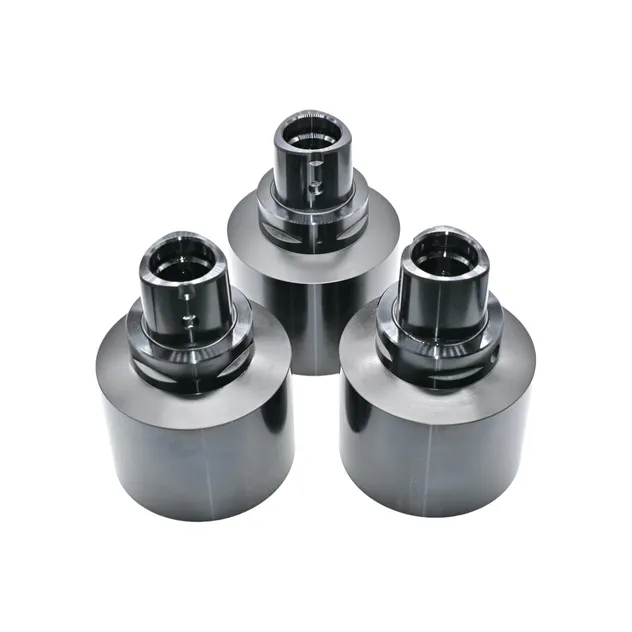

High-Quality Steel

Made of high-grade steel for enhanced hardness and stability, ensuring long-term precision.

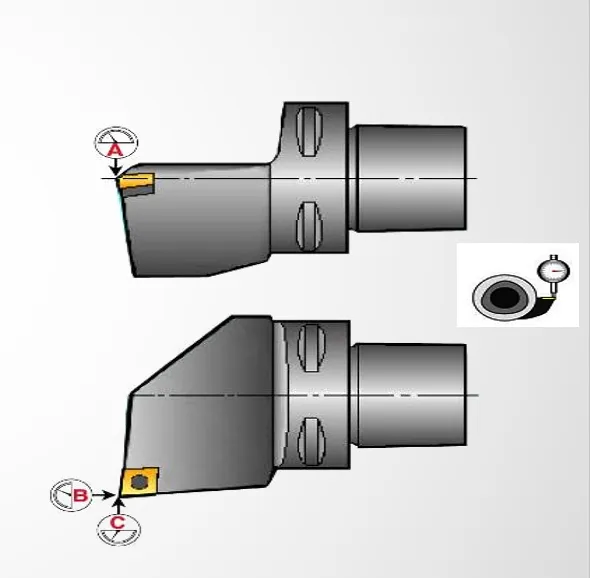

High Repeat Accuracy

Triangular taper design achieves 2μm repeatability, featuring a double contact surface.

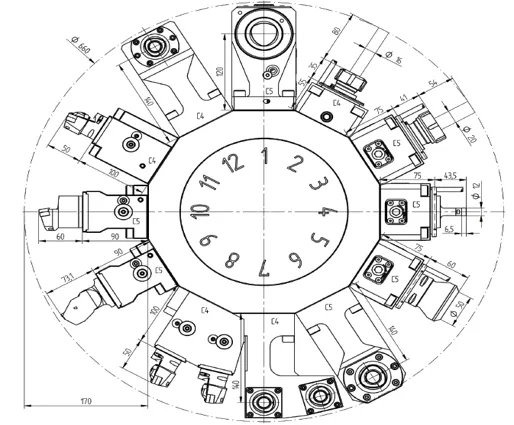

High Productivity: Quike-Change System

Tool change completes in 10 seconds, significantly boosting overall machine uptime.

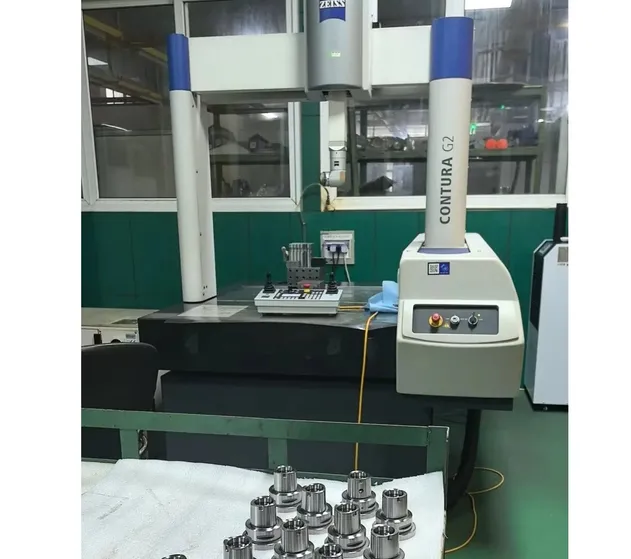

High QC Standard

100% Full inspection with test reports provided for worry-free use, the quality is the same as European brands.

High Rigidity: All-Scenario Compatibility

Its excellent torsional rigidity and vibration resistance allow it to easily handle both light and heavy-duty tasks.

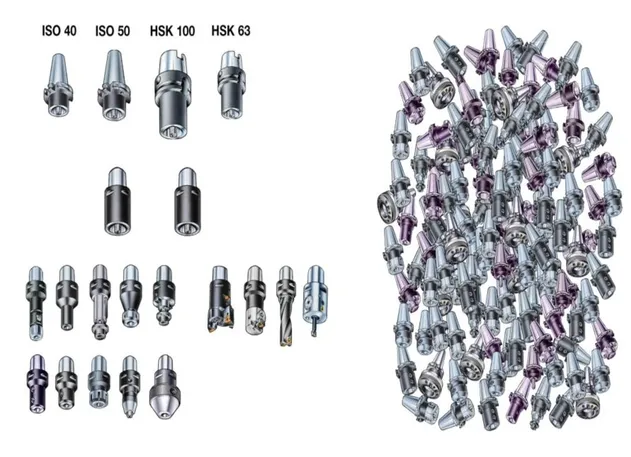

Low Cost: Modular Design, Save Stock

The PSC system features a modular design and flexible configuration, allowing for precise matching of tools to order requirements, thus reducing inventory buildup.

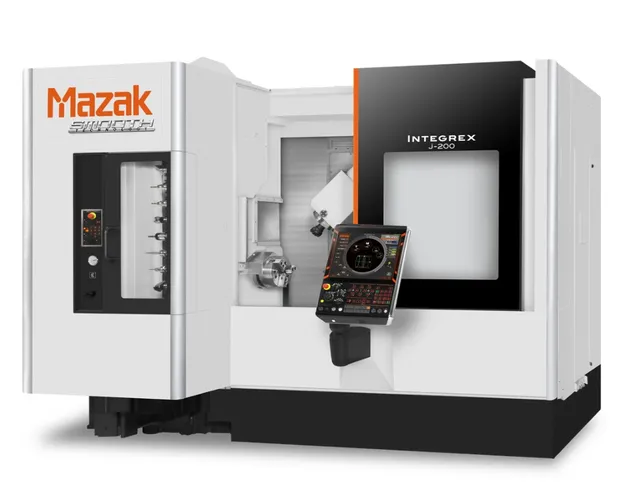

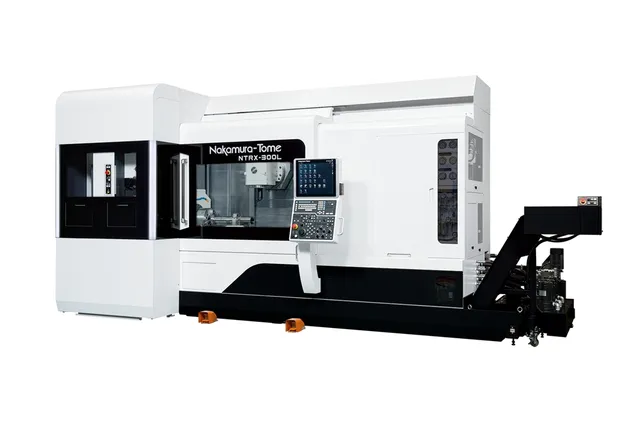

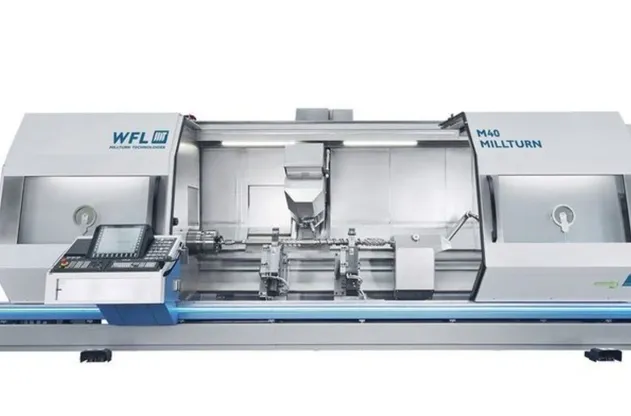

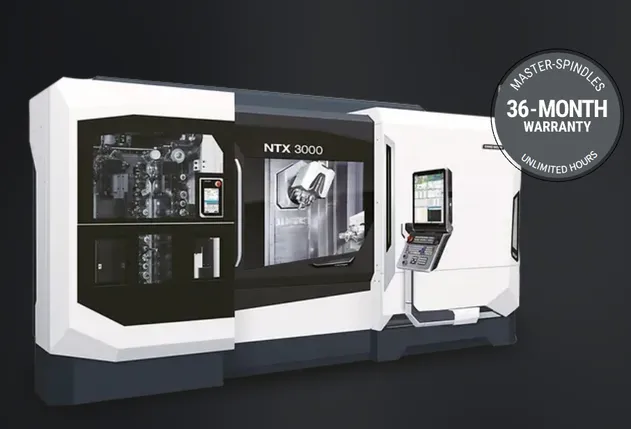

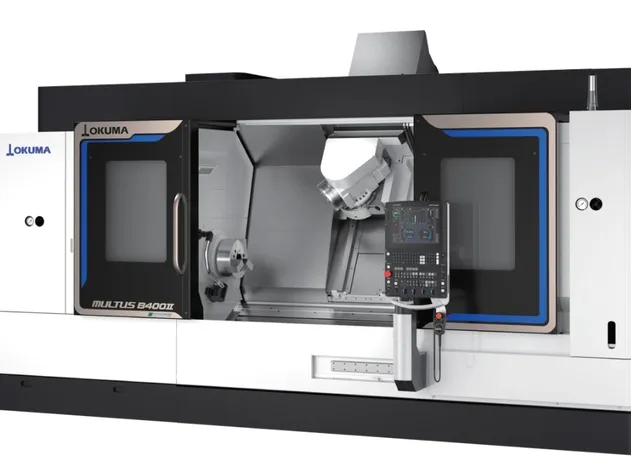

MTM Application

Factory Video

Packaging & Shipping

Frequently Asked Questions

Q1: How do you control the quality of your products?

A: Our products meet the ISO 9001 standard. We have our own state-of-the-art testing equipment and highly skilled inspection personnel.

Q2: Are you a manufacturer or a trade company?

A: We are a manufacturer and have Studer grinders.

Q3: What are the main products?

A: PSC Tools, PSC Holders, PSC Fixtures, PSC ATC, PSC Pallet... CIM Carbide Insert.

Q4: Which MTMs have you collaborated with for your PSC products?

A: Mazak, OKUMA, TAKISAWA, DMG MORI, Muratec Murata, Nakamura Tome, Takamaz, Tsugami, DN Solution, EMAG, WFL, Index, Goodway, YouJi and other Turn-Mill machines.

Q5: Could you undertake customisation?

A: Yes. We support OEM & ODM business.

Q6: Do you have an MOQ requirement?

A: For standard products, no MOQ is required. For non-standard products, the MOQ is 3 PCS.
