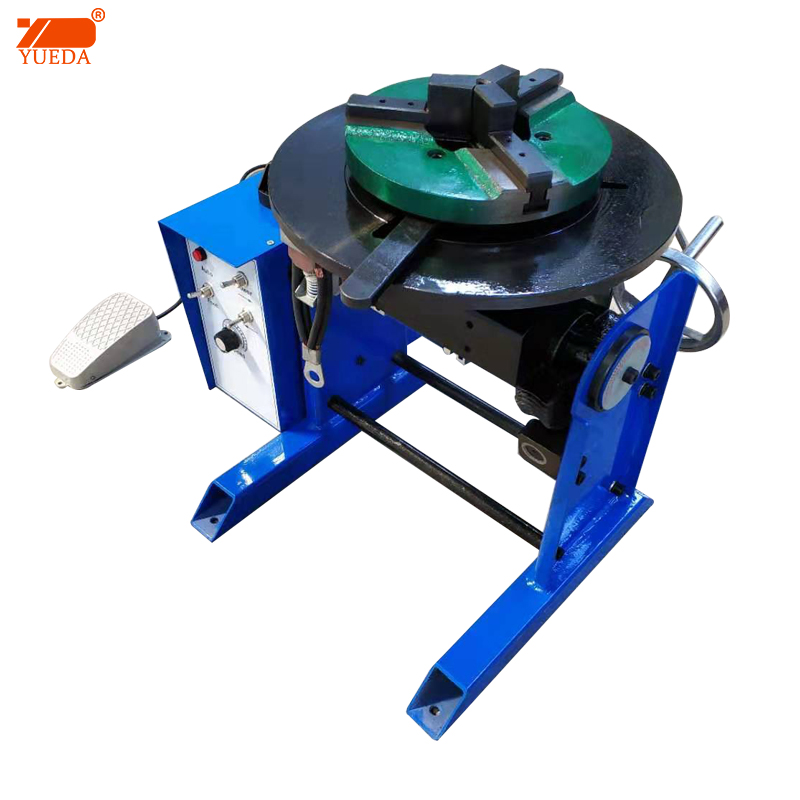

Welding Equipment Positioner Small Manual Workpiece Chuck

Production Description

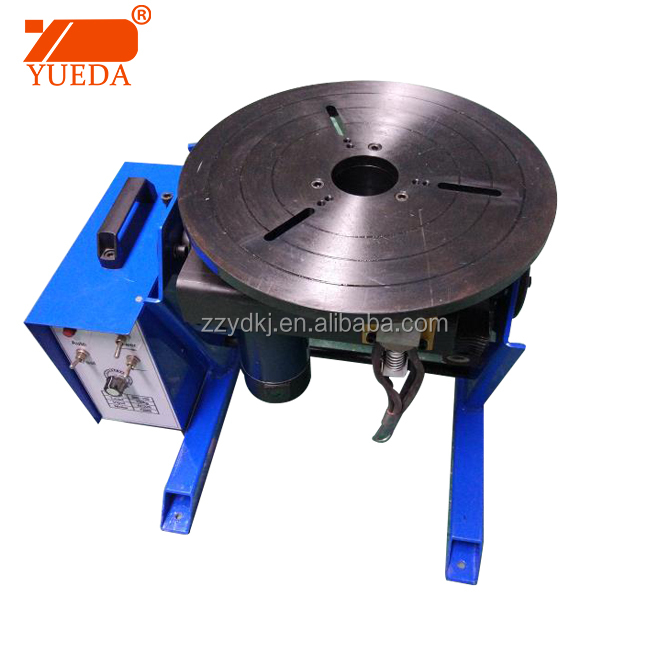

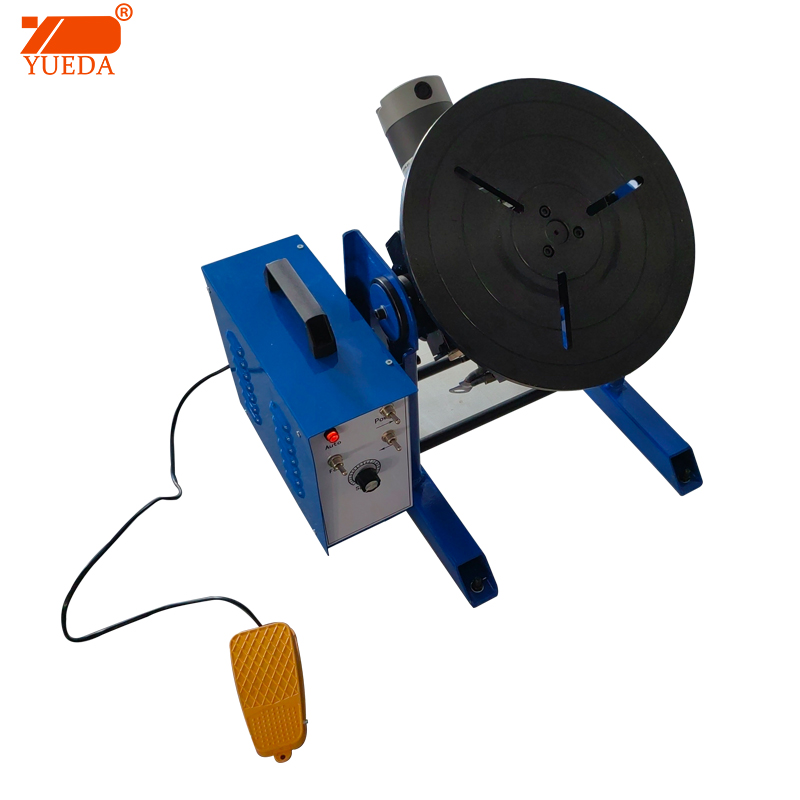

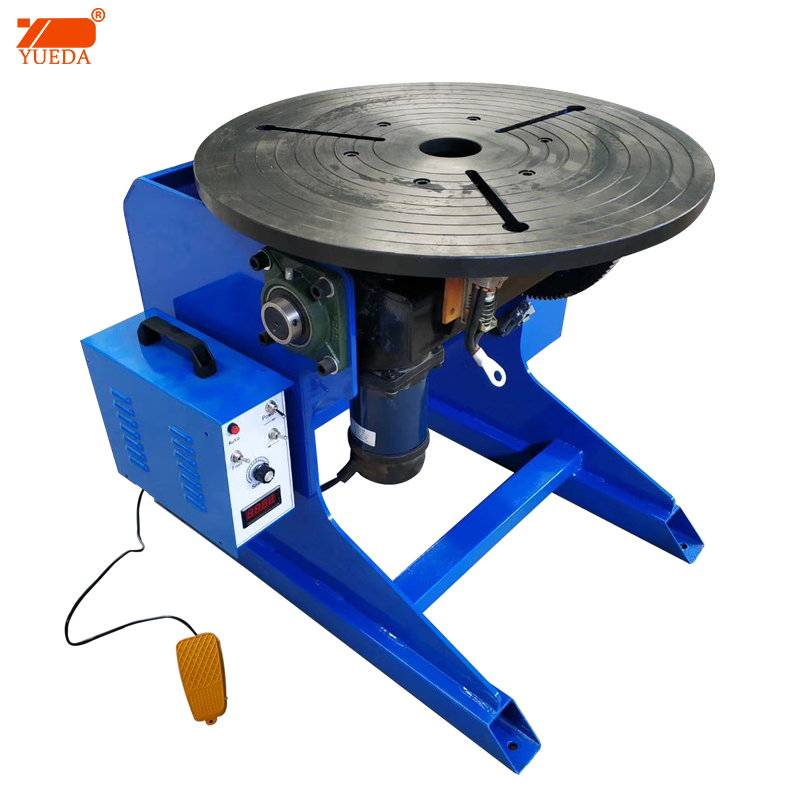

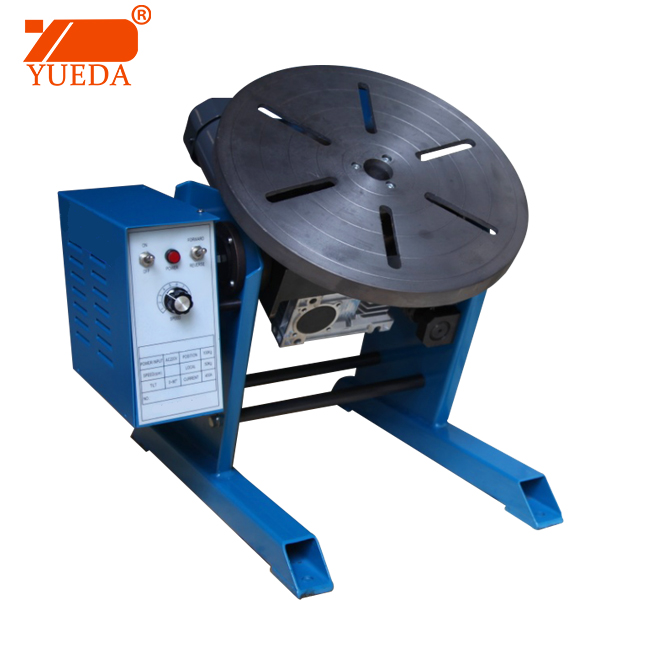

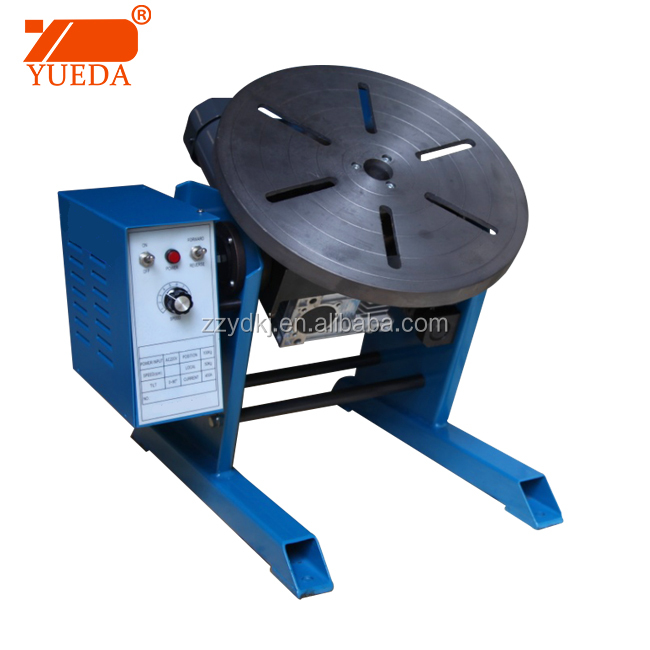

Welding positioner normally composed by worktable slewing mechanism and turnover mechanism, which let the work piece that fixed on the worktable in the desired welding or fitting angle by worktable’s lifting, turnover and slewing. And the worktable’s slewing is frequency inverter stepless speed regulation to achieve the satisfactory welding speed.

It’s can match with welding manipulator to form into automatic special welding machine, and it’s also match with robot peripheral equipment and robot to realize welding automation. And we also can make customized welding positioner according to clients’ different work piece and technological requirements.

Specification

BWJ series welding positioner technical parameters
Model	BWJ-10	BWJ-30	BWJ-50	BWJ-100	BWJ-200	BWJ-300
Rated loading capacity (kg) Horizontal/vertical	10/5KG	30/15KG	50/25KG	100/50KG	200/100KG	300/150KG
Rotation speed (r/m)	2-20	1-15	1-15	0.5-5	0.5-5	0.2-2.5
Motor power	20W	40W	120W	120W	125W	200W
Table diameter	180mm	310mm	320mm	360mm	400mm	500mm
Diameter of machine through hole	/	25/65mm	/	65mm	100/140/170mm	140/170mm
Adaptive chuck	65/80mm	125/200/300mm	200/300mm	200/300/400mm	300/400mm	400/500mm
Weight(KG)	12	30	35	75	80	120
Length (mm)	320	380	380	500	530	650
Width (mm)	285	360	360	415	490	560
Height (mm)	230	400	400	450	500	600

More Products

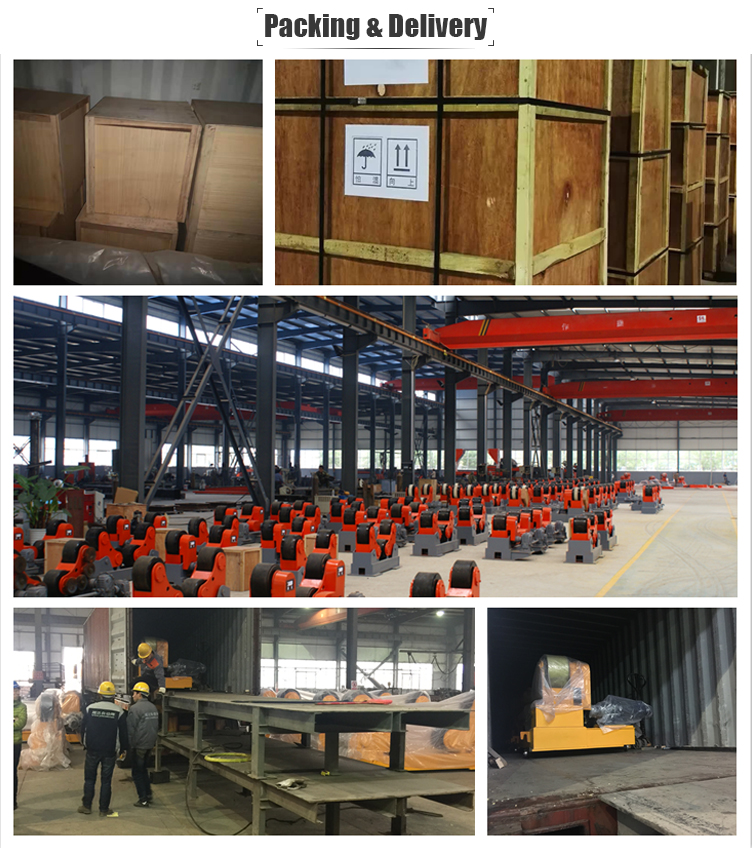

Packing & Delivery

FAQ

Are we a trading company or a manufacturer?

We are a professional manufacturer with a long-standing history in producing high-quality welding automation equipment.

Where is your factory located? How can I visit there?

Our factory is located in China. All of our clients, from both domestic regions and abroad, are warmly welcome to visit us!

Can the machines be customized?

Yes, both OEM and ODM services are available. We can customize the welding positioner according to your specific workpieces and technical demands.

How do you guarantee product quality?

We implement a strict quality control system throughout the entire production process. Clients are also welcome to visit our facility and inspect the products before delivery.

How long is the warranty period?

We offer a one-year warranty on all of our standard welding positioners.

What is the primary function of a welding positioner?

A welding positioner tilts, rotates, and lifts the workpiece to place it in the ideal position, ensuring smooth, precise, and efficient welding operations.
