| YBC152 |
P10-P20 |
Steel |
Thick TiCN and thick Al2O3 coatings improve the impact toughness and abrasion resistance, which makes it suitable for finishing and semi-finishing of steel at high speed. Cutting speed can increase by more than 25%, while the tool life can increase by more than 30% at the same cutting speed. |

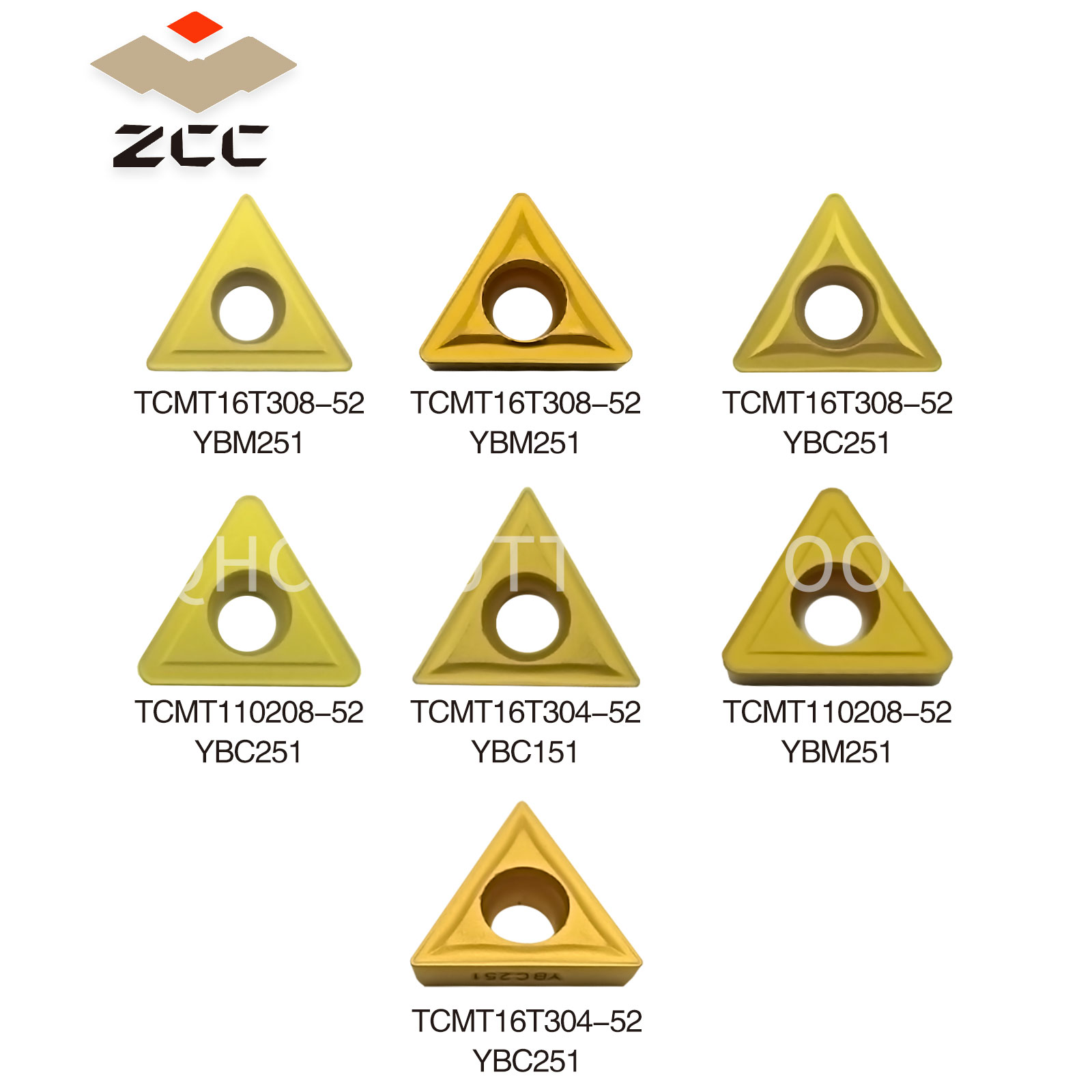

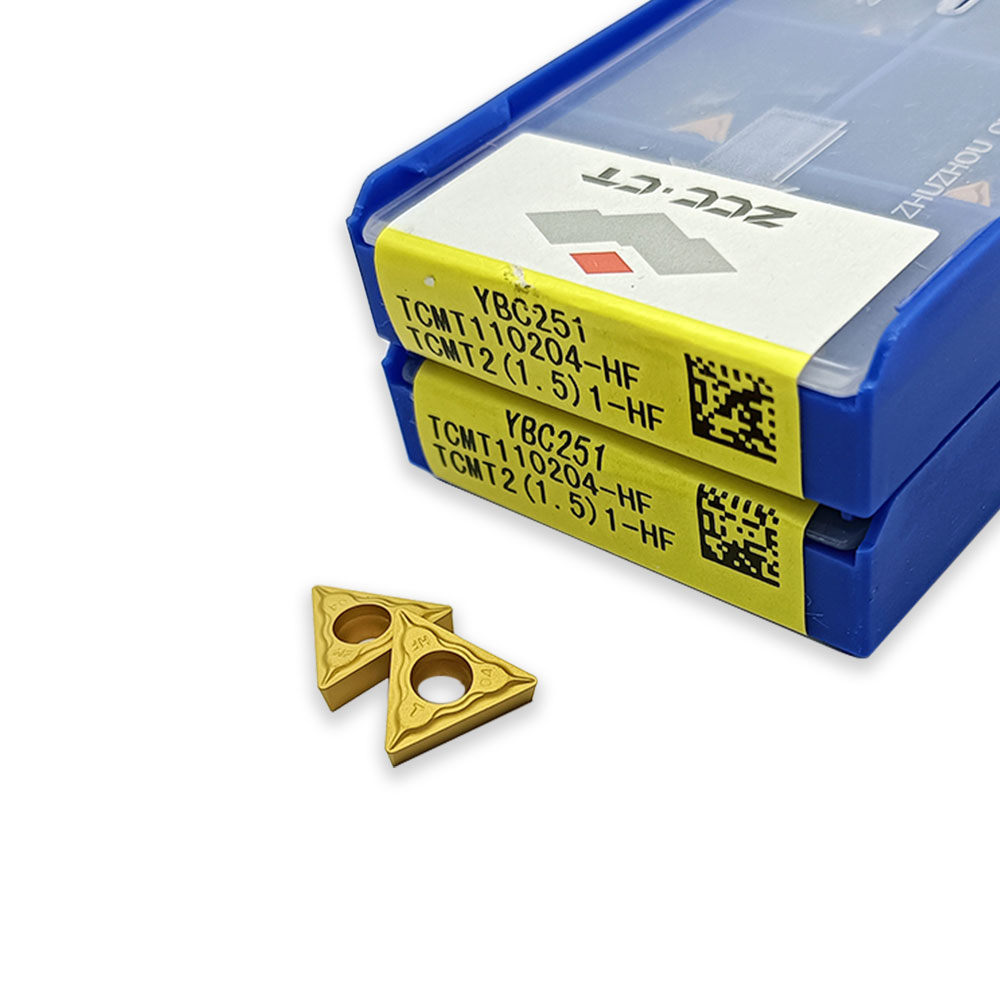

| YBC251 |
P20-P35 |
Steel |
The substrate with good toughness and high security of cutting edge, in optimal combination with coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel semi-finishing. |
| YBC252 |
P20-P35 |
Steel |
Comprising of thick TiCN and thick Al2O3 coatings, the grade has high capability against plastic deformation and good hardness of cutting edge. It is preferred grade for machining of steel from finishing to roughing. Under the same cutting conditions, the cutting speed can be increased by more than 25%, while the tool life can be 30% longer under the same cutting speed. |
| YBC351 |
P20-P40 |
Steel |
The best combination of substrate with high wear resistance and coating composed of MT-Ti (CN), thick Al2O3 layer and TiN makes it suitable for finishing and semi-finishing of cast iron materials. |
| YBM153 |
M10-M25 |
Stainless Steel |
CVD coated M10-M25 carbide grade for finishing to medium application in stainless steel. High wear resistance and capability against plastic deformation at higher cutting speed. |
| YBM251 |
P20-P30 / M15-M35 |
Stainless Steel |
CVD coated P20-P30/M15-M35 carbide grade for medium to roughing operation in stainless steel and steel with wide application field. Good wear resistance and capability against plastic deformation at normal cutting speed. |
| YBM253 |
M15-M35 |
Steel |
CVD coated M15-M35 carbide grade for medium to roughing operation in stainless steel with wide application field. High wear resistance and capability against plastic deformation at higher cutting speed. |
| YBD052 |
K05-K15 |
Cast Iron |
CVD coated carbide grade for cast iron material. Excellent wear resistance in higher cutting speed and dry machining. |

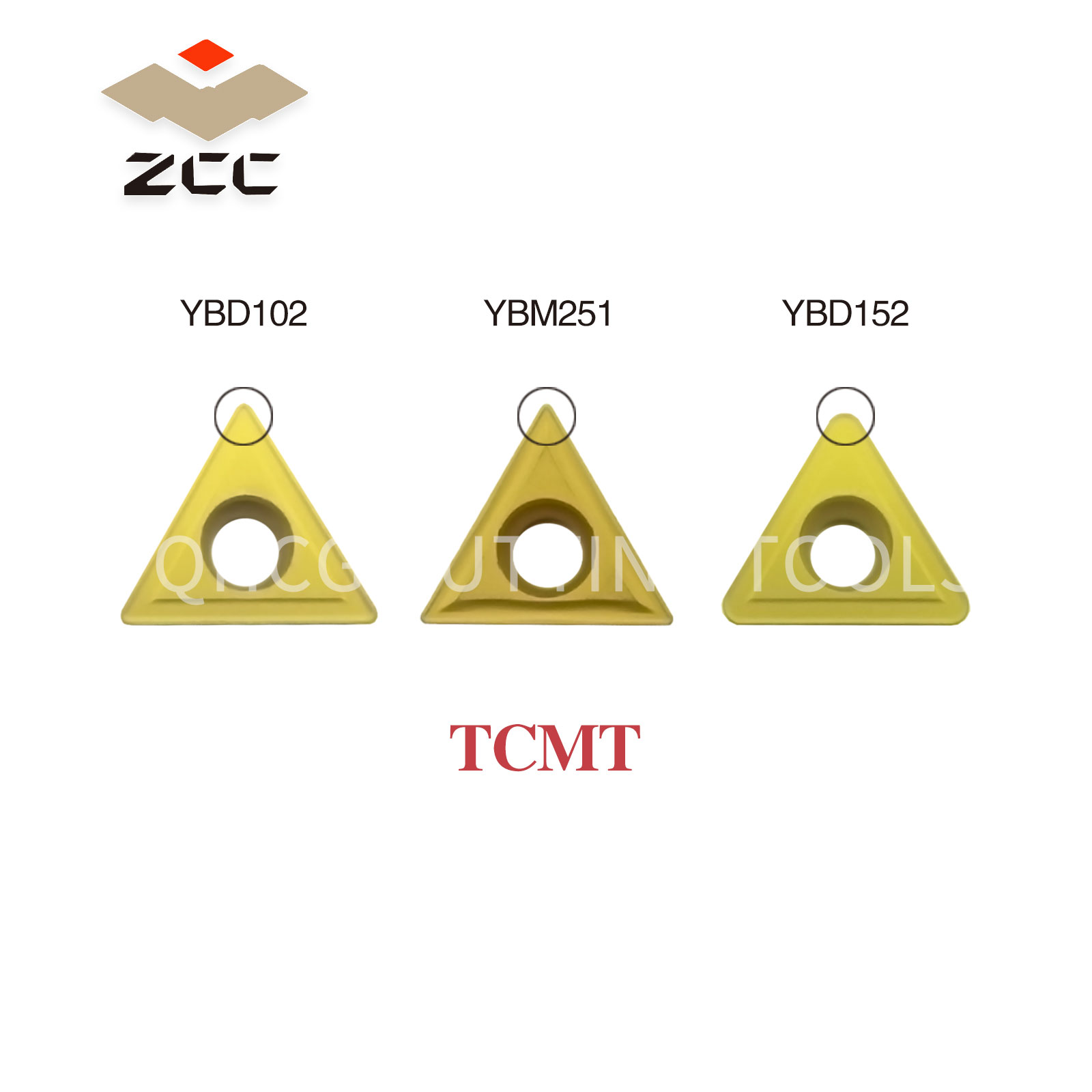

| YBD102 |
K05-K20 |
Cast Iron |
CVD coated for medium operation of cast iron, special nodular cast iron and hard steel at high cutting speed. |
| YBD152 |
K10-K25 |
Cast Iron |
CVD coated K10-K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Good wear resistance and toughness at higher cutting speed. |
| YBG202 |
P10-P30 / M10-M25 |
Steel / Stainless Steel |
PVD coated M10-M25/P10-P30 carbide substrate for finishing to medium application of stainless steel and steel (milling). Good wear resistance in a wide application field. |
| YBG201 |
P10-P30 / M10-M30 |
Steel / Stainless Steel |
PVD coated P10-P30/M10-M30 carbide substrate for finishing to medium application of steel and stainless steel. Good wear resistance in a wide application field. |
| YBG205 |
P10-P30 / M20-M40 / S15-S25 |
Steel / Stainless Steel / Heat-resistant Alloy |
PVD multilayer coated M20-M40/S15-S25/P10-P30 carbide substrate for finishing to medium application of stainless steel, super alloy and steel (milling). Good wear resistance and thermal stability in a wide application field. |
| YBG252 |
P10-P20 / M10-M20 / K10-K20 |
Steel / Stainless Steel / Cast Iron |
PVD coated P10-P20/M10-M20/K10-K20 carbide grade for finishing to medium operation of steel, stainless steel and cast iron. Good wear resistance and toughness for a wide application field. |
| YB6315 |
P10-P20 |
Steel |
CVD coated P10-P20 carbide grade for finishing to medium operation of steel, casting steel and high chrome material. Outstanding performance under high cutting speed and temperature with excellent wear resistance. |
| YB9320 |
P10-P30 / M10-M25 |
Steel / Stainless Steel |
CVD coated K10-K25 carbide substrate. Optimized for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. |
| YB7315 |
K10-K25 |
Cast Iron |
CVD coated for medium to roughing operation of cast iron. Improved wear resistance and toughness at high cutting speed. |
| YD101 |
N05-N20 / K05-K20 |
Aluminum / Hard Wood |
Uncoated N05-N20/K05-K20 carbide substrate for fine to medium application in aluminum and other material. |
| YD201 |
N10-N30 / K10-K30 |
Aluminum / Hard Wood |
Uncoated N10-N30/K10-K30 carbide substrate for medium application in aluminum and other material. |
