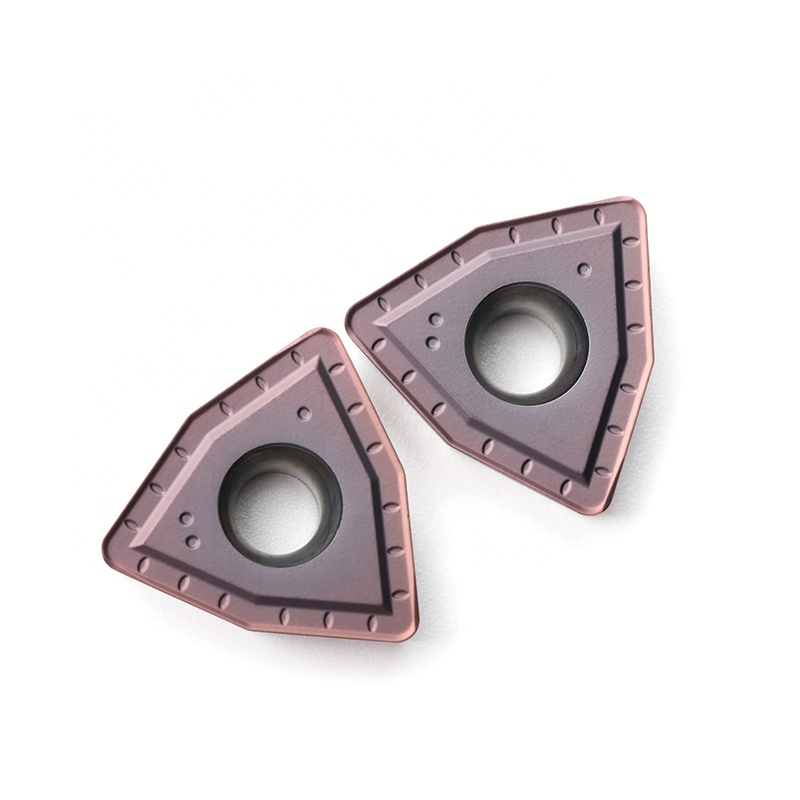

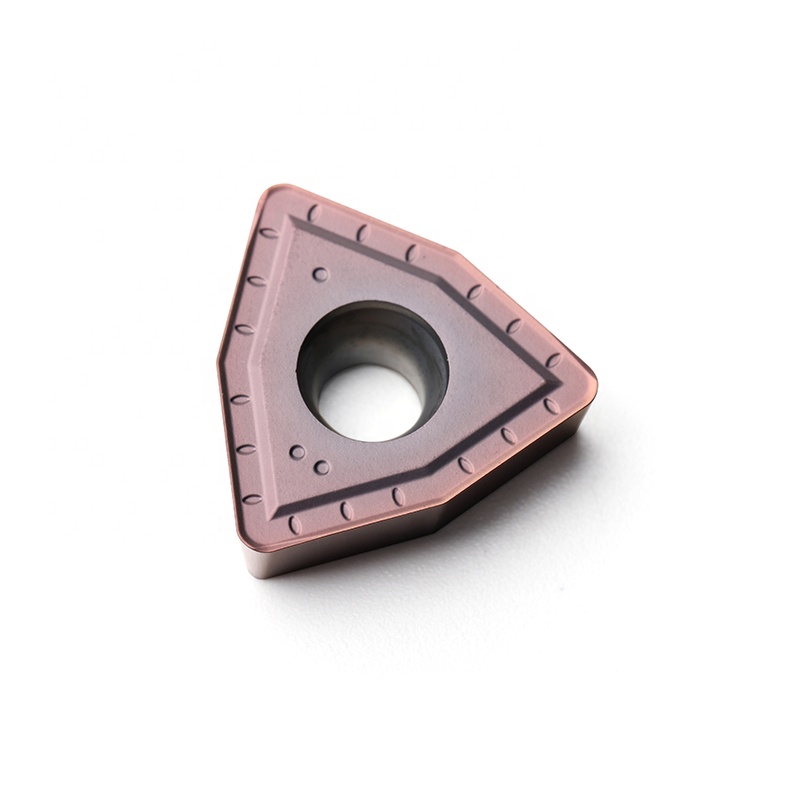

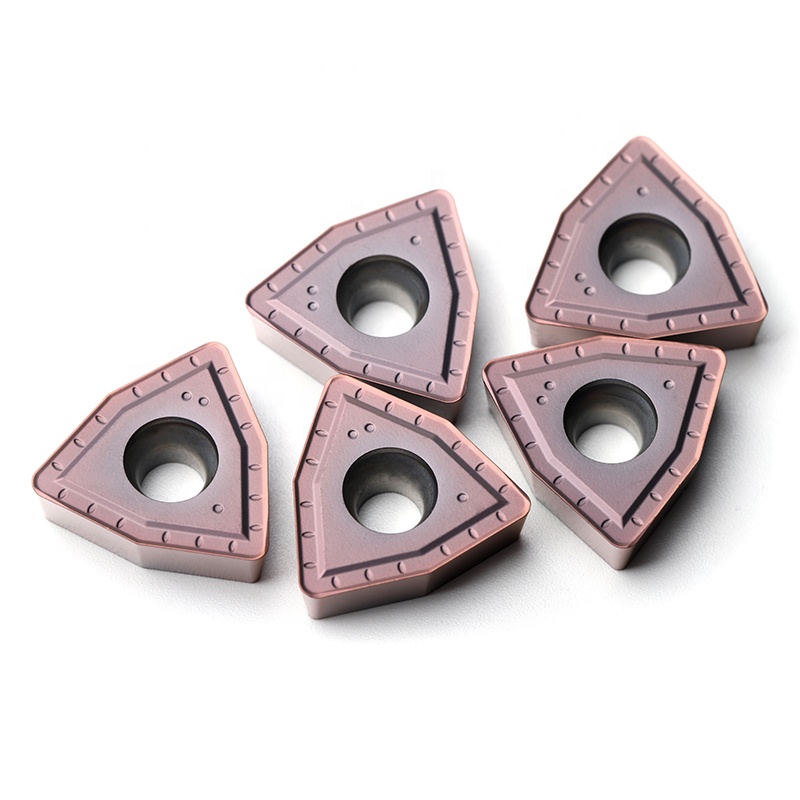

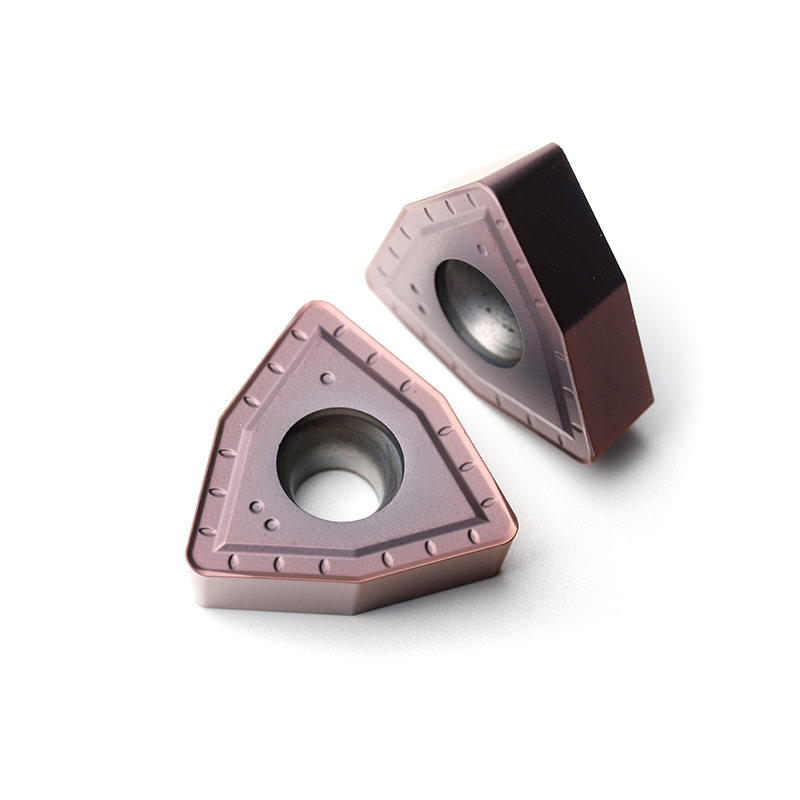

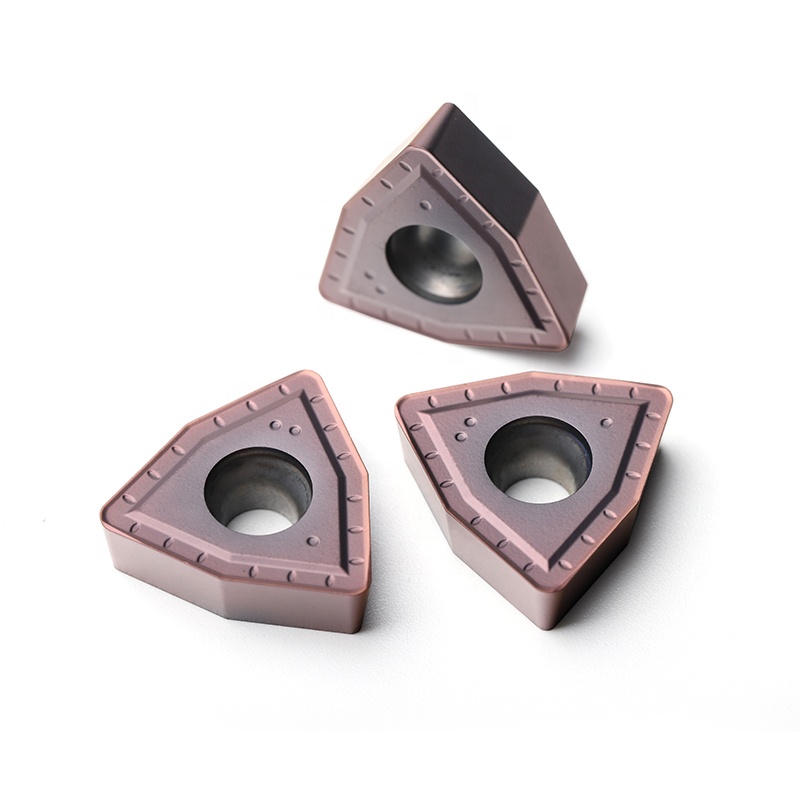

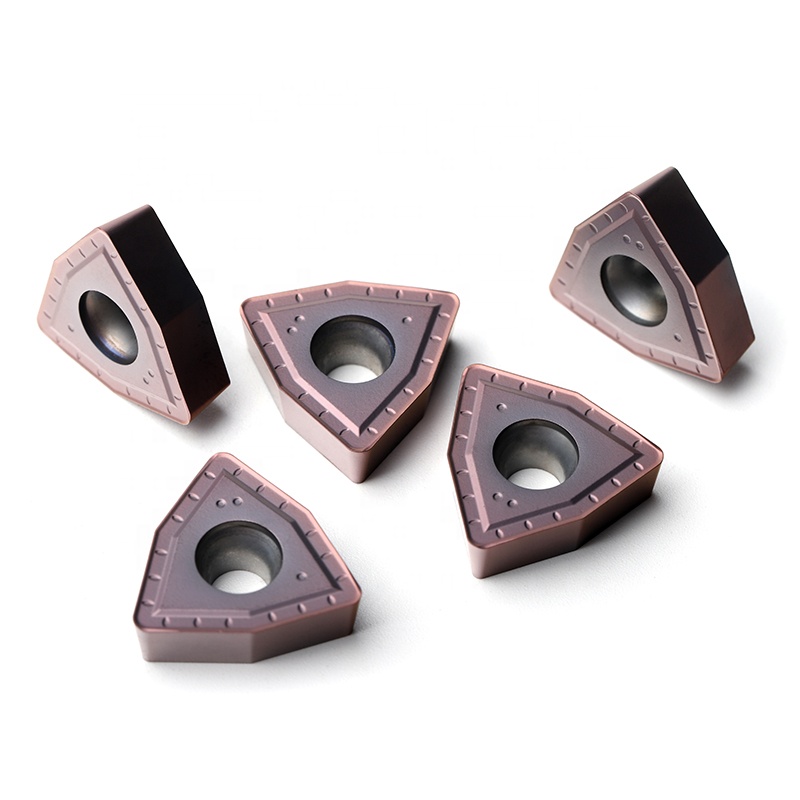

WCMX Carbide Drilling Inserts PVD Coated Carbide Inserts Tungsten Carbide Lathe Tool Inserts
# PVD Coated Carbide Inserts
# Tungsten Carbide Lathe Tool Inserts
# Carbide Drilling Inserts

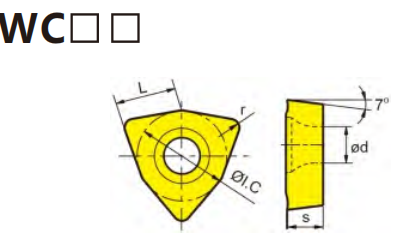

| Dimensions (mm) |
L |
φI.C |
S |
φd |
r |
| WCMX030208-SK |
3.8 |
5.56 |
2.38 |
2.8 |
0.8 |
| WCMX040208-SK |
4.3 |
6.35 |
2.38 |
3.1 |
0.8 |
| WCMX050308-SK |
5.4 |
7.94 |
3.18 |
3.2 |
0.8 |
| WCMX06T308-SK |
6.5 |
9.525 |
3.97 |
3.7 |
0.8 |
| WCMX080412-SK |
8.7 |
12.7 |
4.76 |
4.3 |
1.2 |
| Product Name |
WCMX Carbide Drilling Inserts PVD Coated Carbide Inserts Tungsten Carbide Lathe Tool Inserts |
| Place of Origin |
Hunan, China |
| Model Number |
WCMX030208-SK, WCMX040208-SK, WCMX050308-SK, WCMX06T308-SK, WCMX080412-SK |
| Application |
Stainless Steel |
| Grade |
YP731 |
| Coating |
PVD |
Product: WCMX Carbide Drilling Inserts PVD Coated Carbide Inserts Tungsten Carbide Lathe Tool Inserts
Packaging Details: 10 pieces packed in one red plastic box.
HS Code: 8208101100
Frequently Asked Questions (FAQ)
Q: What is the primary application for WCMX carbide drilling inserts?
A: WCMX inserts are specifically designed for high-efficiency indexable drilling and are highly optimized for machining stainless steel and other difficult-to-cut metals.
Q: What are the advantages of the PVD coating on these inserts?
A: The PVD (Physical Vapor Deposition) coating provides high surface hardness, excellent thermal barrier properties, and superior wear resistance, which significantly extends tool life.
Q: What grades are available for these inserts and what do they mean?
A: These inserts come in grade YP731, which is formulated to offer optimal toughness and resistance against chipping, particularly when working with tough stainless steel operations.
Q: What dimensions and models are available in the WCMX series?
A: We offer multiple standard sizes, including WCMX030208-SK, WCMX040208-SK, WCMX050308-SK, WCMX06T308-SK, and WCMX080412-SK to fit different indexable drill diameters.
Q: How are these inserts packaged for delivery?
A: The inserts are packaged in industry-standard packaging containing 10 pieces per red plastic box, ensuring optimal protection during transportation and storage.
Q: What is the HS code for customs clearance?
A: The designated international HS Code for these tungsten carbide tool inserts is 8208101100.
