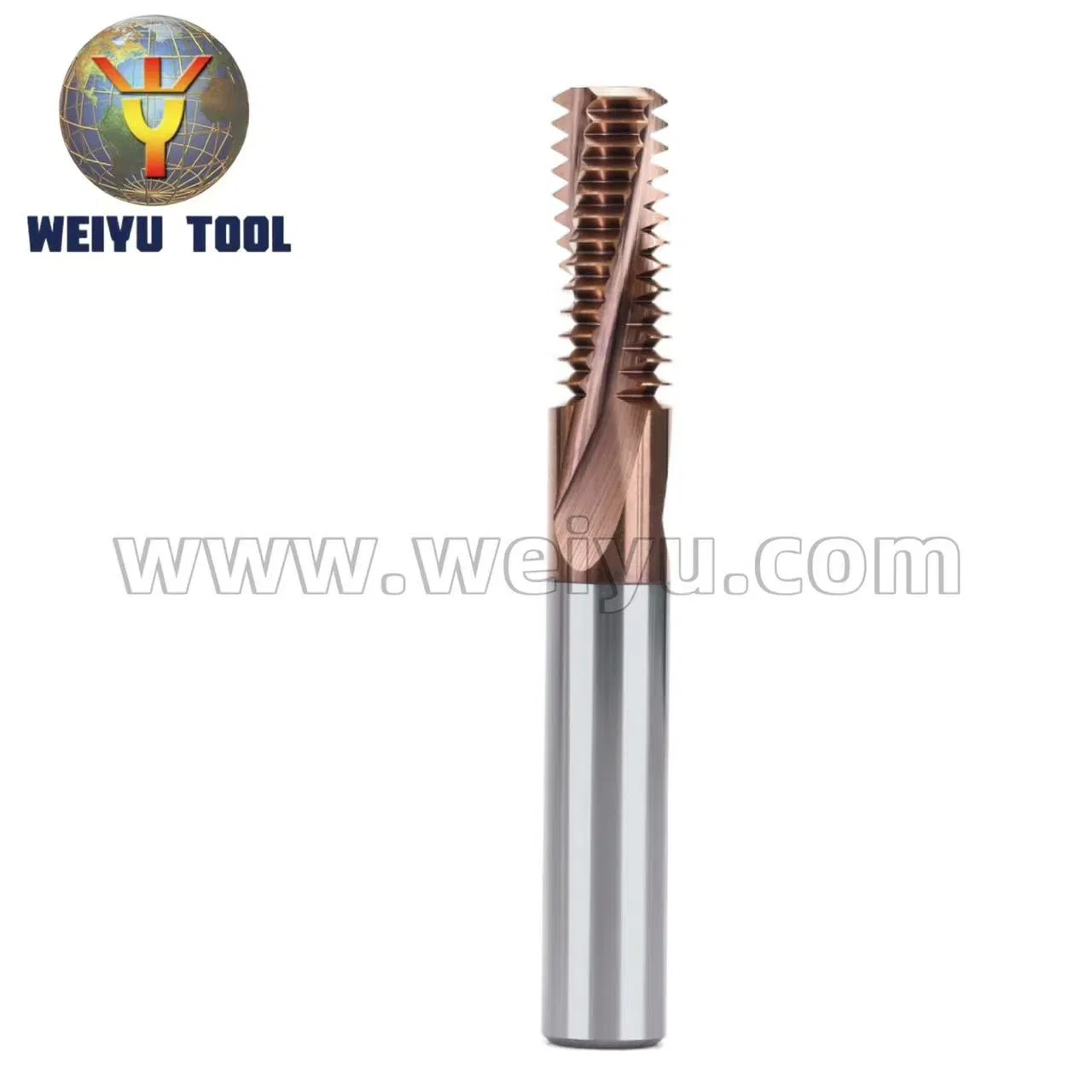

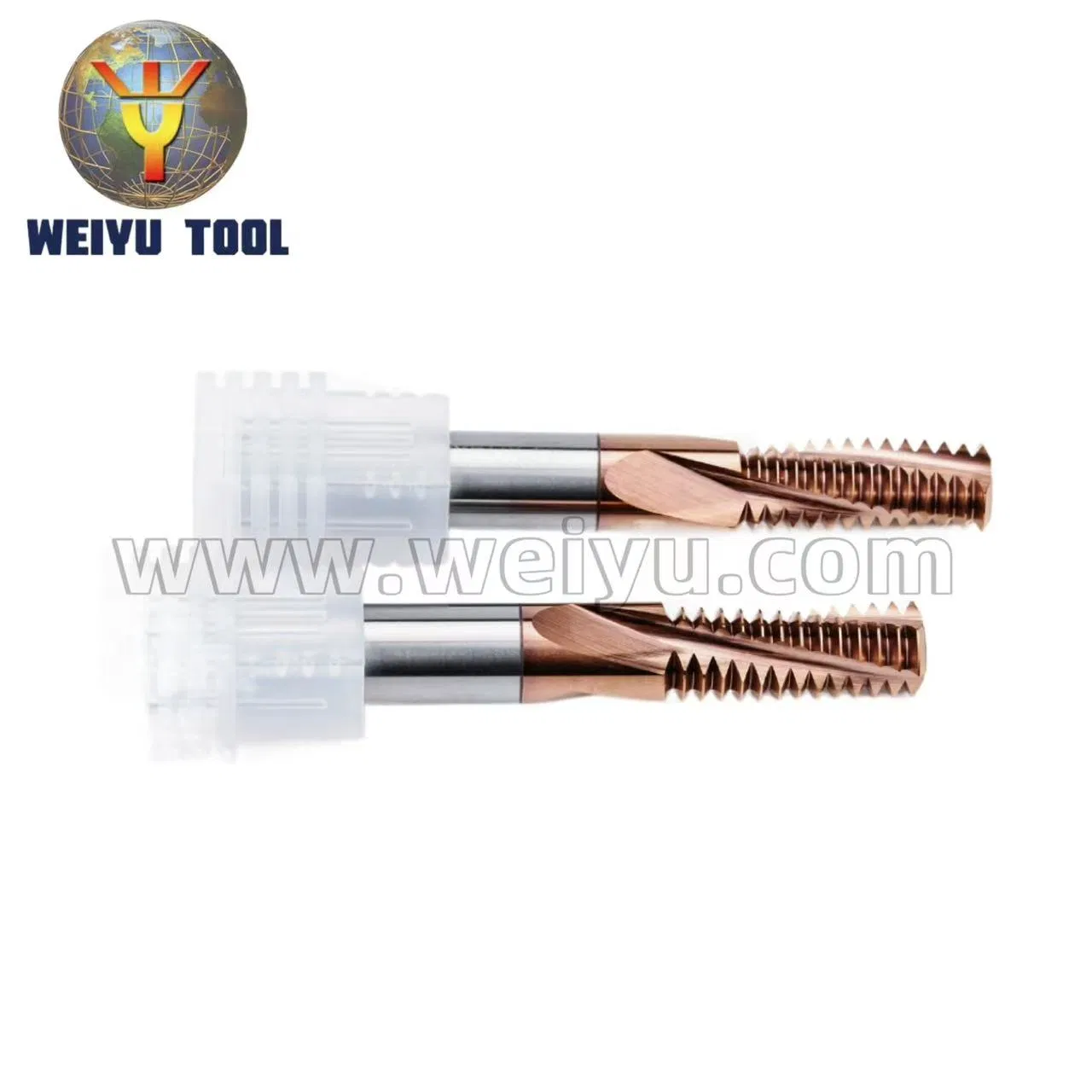

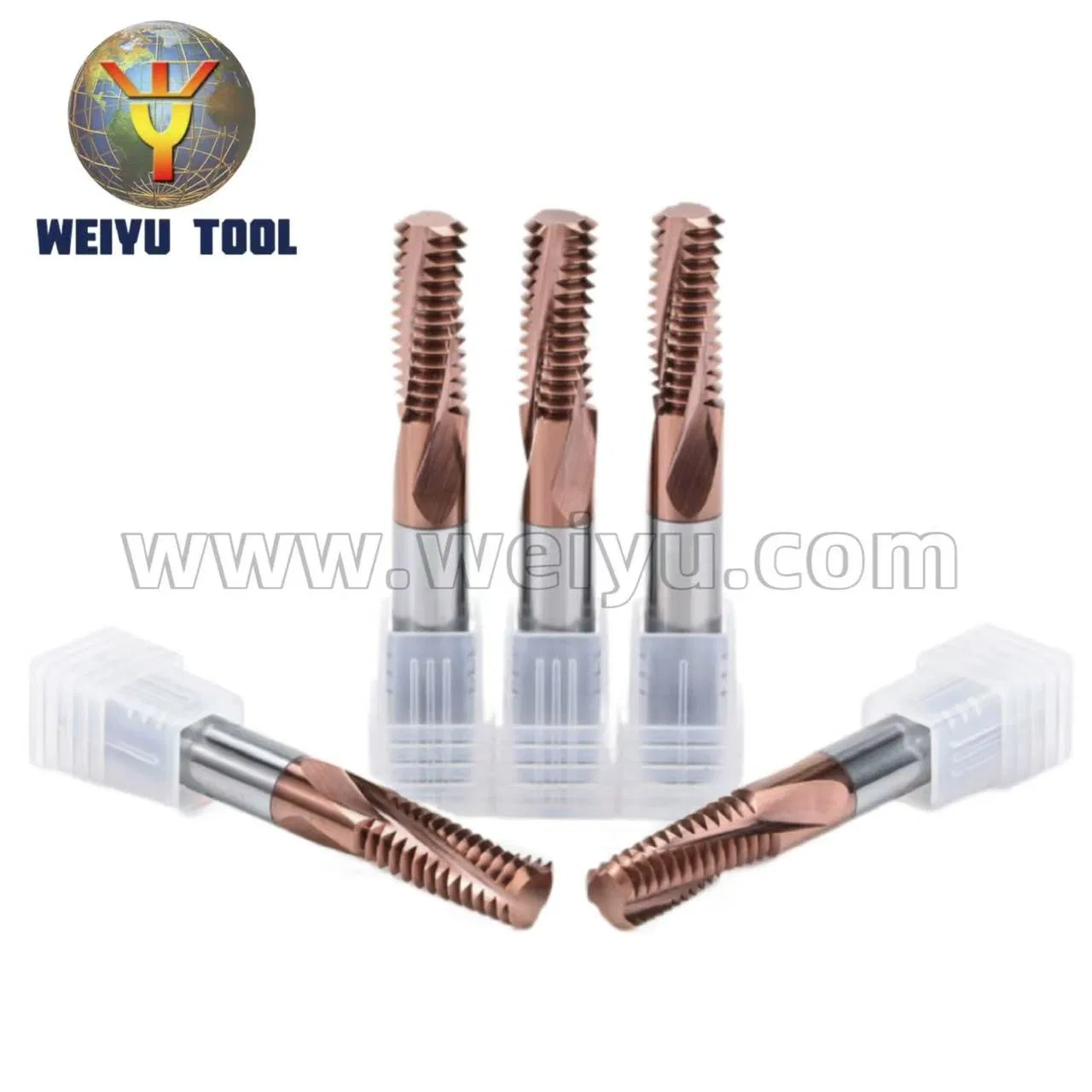

Factory Direct CNC Cutting Tools Solid Tungsten Carbide Milling Thread End Mill Cutter

Basic Specifications

Model NO.

Carbide Thread End Mill

Transport Packing

Each Piece with Plastic Box in Carton

Flute Diameter

0.3-40mm

HRC

50/55/60/65HRC

Controlling Mode

CNC Tooling System

Finish Surface

Plain Surface, The Side, Socket

Coating

Tooth Form

Spiral Tooth

Tooth Space

Sparse Tooth

Structure

Integral

Material

Tungsten Steel

Type

Vertical Milling Cutter

Transport Package

Carton Packing

Specification

SGS

Origin

China

HS Code

8207709000

Production Capacity

5000 Piece/Pieces Per Month

Product Overview

Solid Tungsten Carbide Milling Thread End Mill Cutter Banner

High Hardness Options

Available in hardness configurations of HRC45, HRC55, HRC58, HRC60, and HRC65 to match varied heavy-duty machining tasks.

Advanced Coating Selection

Coated variations include AlTiN, TiAlN, TiAISI, TiSiN, TiN, DLC, Nano, and Diamond coatings for enhanced heat defense and wear prevention.

Wide Processing Capability

Designed for effective processing of plastic, wood, aluminium, copper, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel.

Key Advantages

1. Special Cutting Edge

Specialized cutting edge geometry boosts cutting power, significantly increasing the operational lifetime of both the tooling and the CNC machinery.

2. Smooth and Wide Flute

Engineered with a smooth, expansive flute design to facilitate smoother, faster, and more efficient chip evacuation during high-speed milling.

3. Heat-Resistant Coating

Equipped with highly heat-resistant HELICA coating structures, allowing the cutters to perform reliably under demanding high-speed conditions.

4. Wear Detection Design

Features specific colored coatings (including orange/bronze) that make physical tool abrasion clear and instantly visible to operators.

5. Premium Raw Materials

Constructed entirely using high-toughness, ultra-fine micro-grain carbon tungsten steel to guarantee robust fundamental hardness and durability.

6. Polished Surface Treatment

Highly polished tool surfaces drastically lower the friction coefficient, boosting overall lathe output rates and shaving down essential run cycles.

Product Gallery

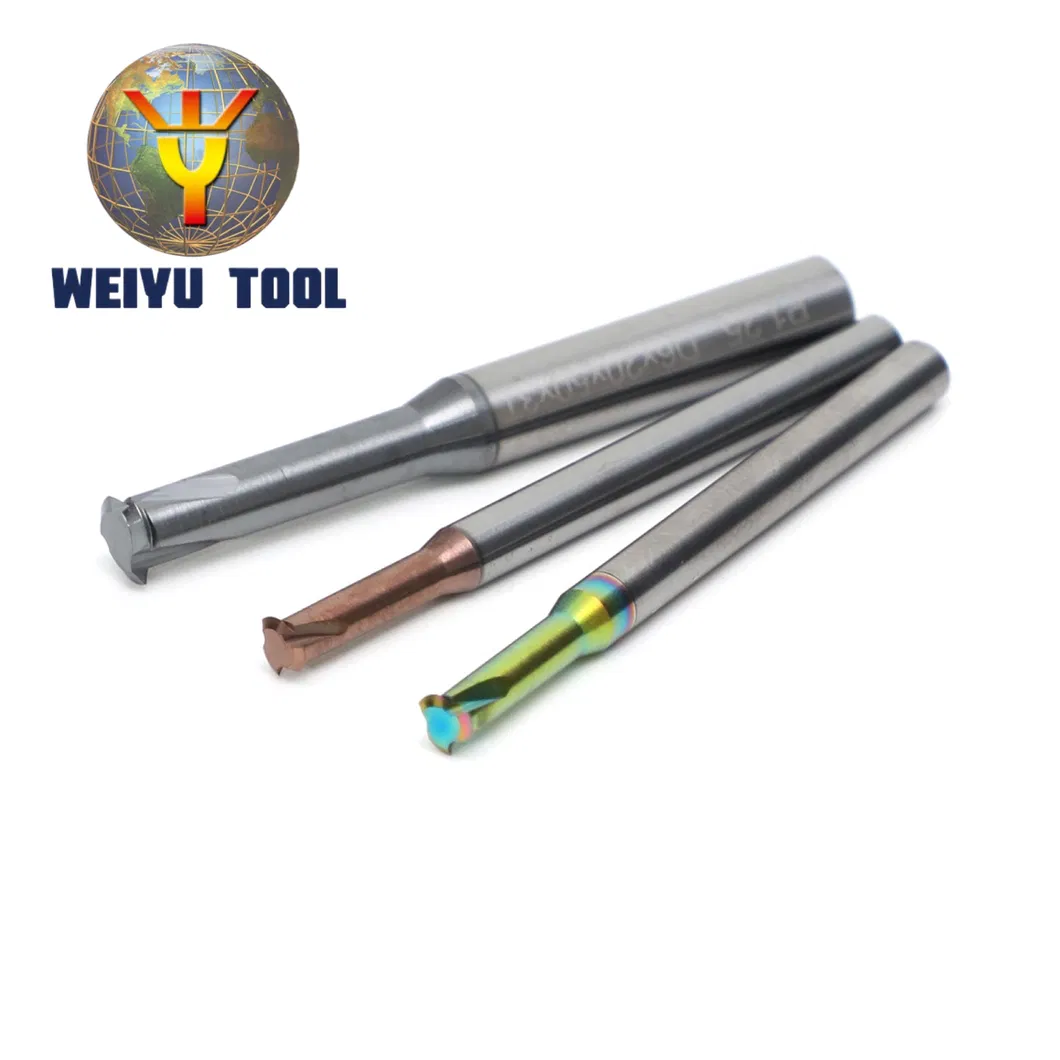

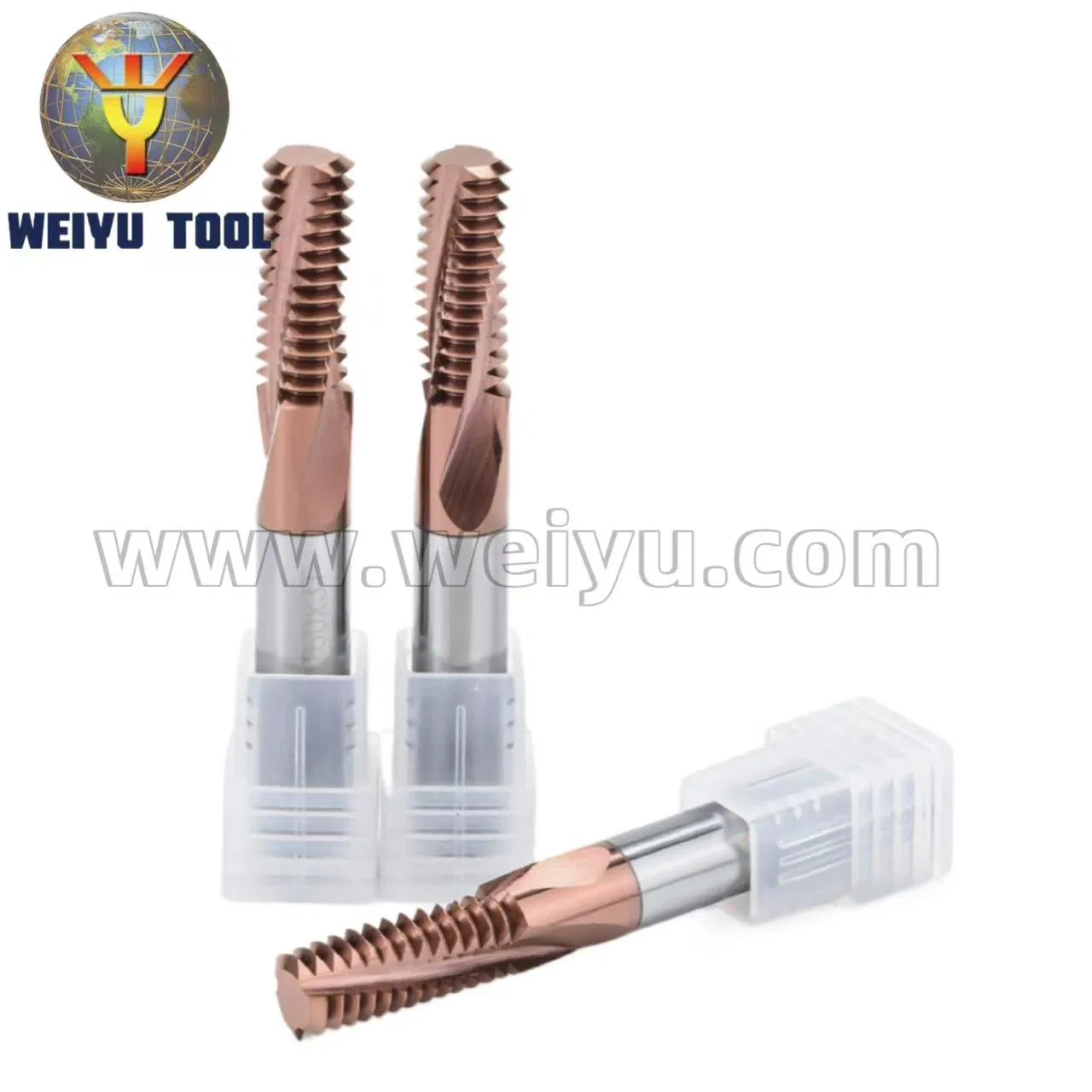

Carbide Thread End Mill Product Showcase 1

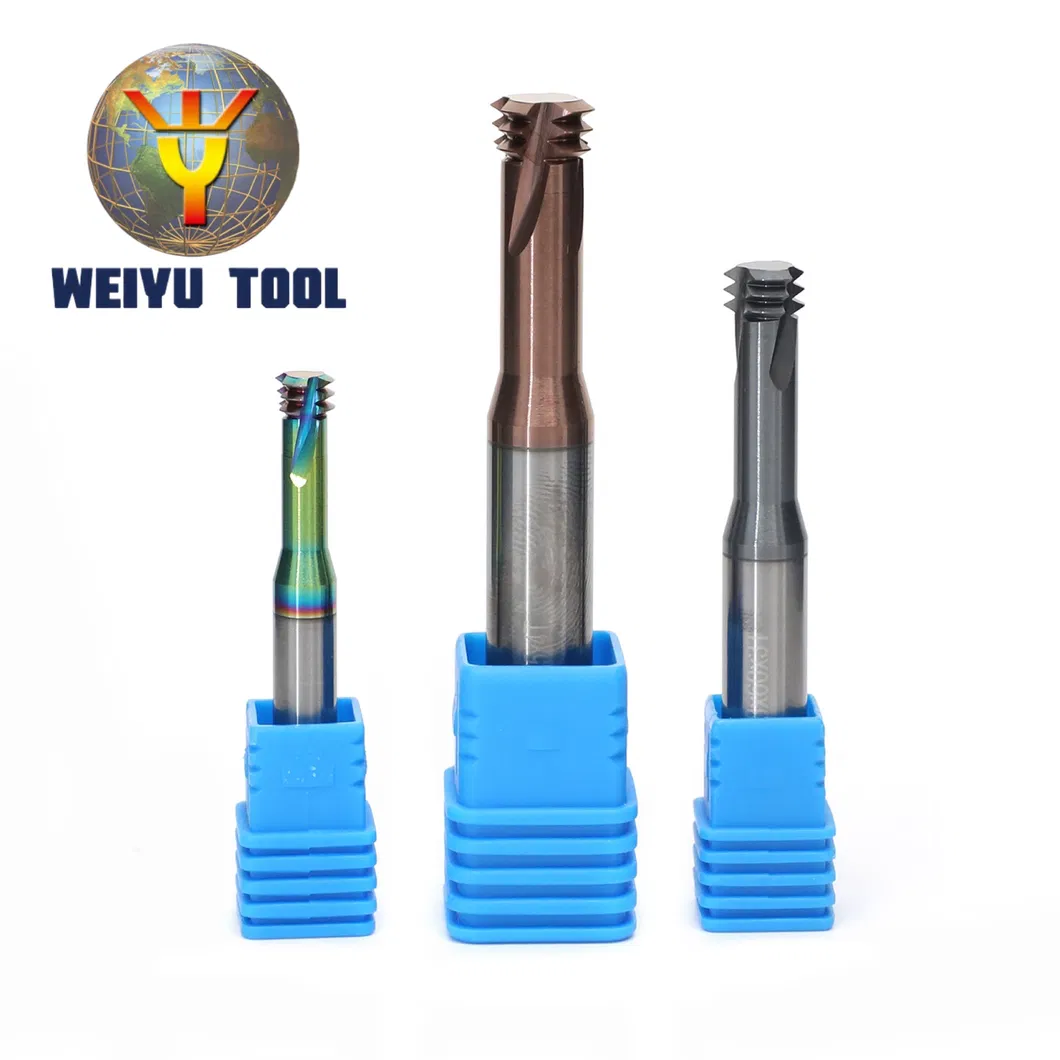

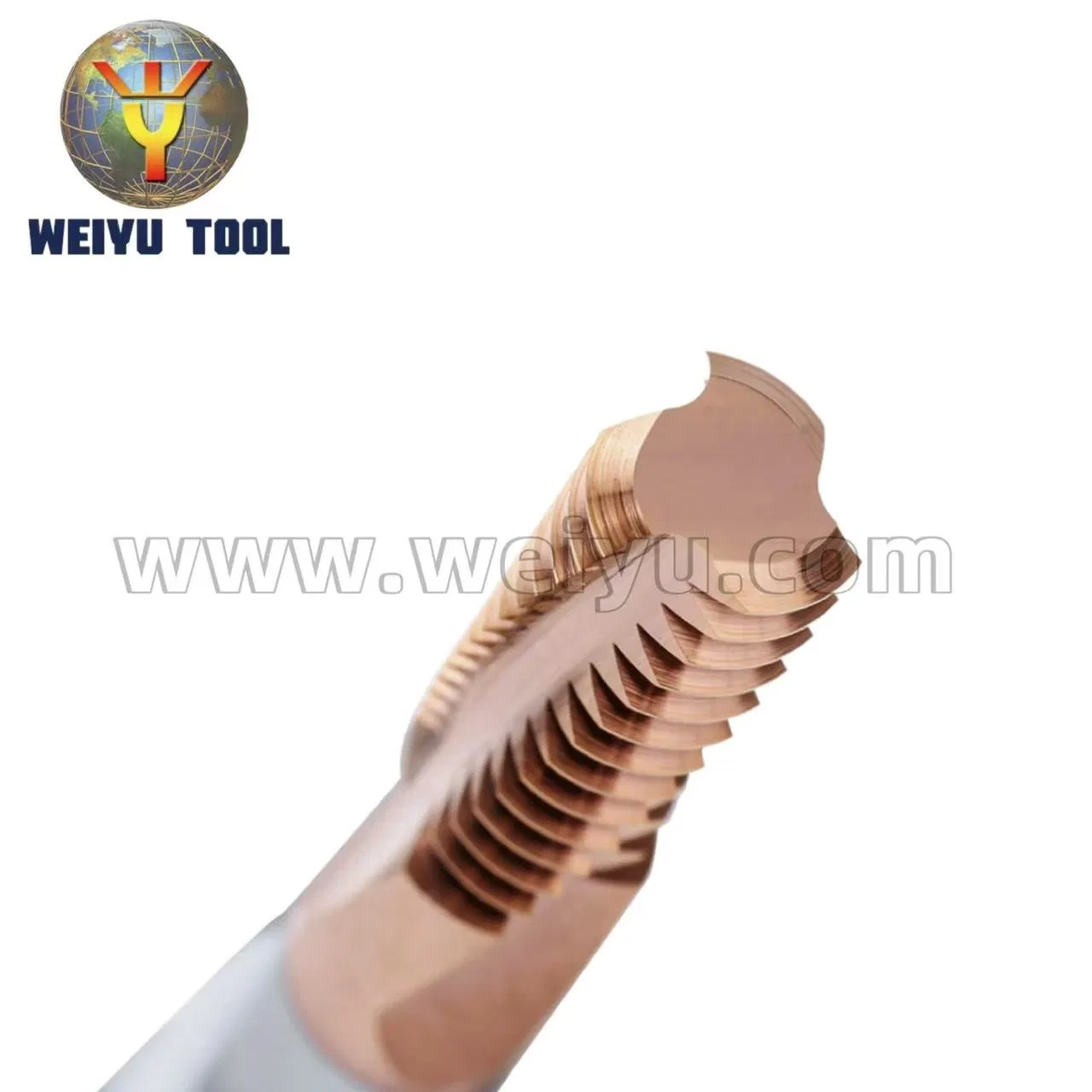

Carbide Thread End Mill Product Showcase 2

Dimensions & Specifications

D	d1	P	d2	l1	L2	Z
M3	2.35	0.5	4	50	6	3
M4	3.15	0.7	4	50	6	3
M5	4.00	0.8	6	50	10	3
M6	4.75	1.0	6	60	12	4
M8	6.45	1.25	8	60	16	4
M10	8.10	1.5	10	75	20	4
M12	9.75	1.75	12	75	24	4
M14	11.40	2.0	14	75	28	4
M16	13.30	2.0	16	90	32	6
M18	14.75	2.5	18	90	36	6
M20	16.65	2.5	18	100	40	6

Material & Coating Data

HRC 45	HRC 55	HRC 60	HRC 65
YG10X	YL10.2 & WF25	Germany K44 & K40	Sandvik H10F
Grain size 0.7 μm, Co10%, Flexural strength 3320N/mm²	Grain size 0.6 μm, Co10%, Flexural strength 4000N/mm²	Grain size 0.5 μm, Co12%, Flexural strength 4300N/mm²	Grain size 0.5 μm, Co10%, Flexural strength 3320N/mm²

Coating	Hardness HV	Thickness μm	Friction Coefficient	Oxidation Temp	Color
AlTiN	3500	2.5-3	0.3	900	Black
TiAlN	2800	2.5-3	0.3	900	Violet
TiSiN	3600	3.0	0.45	1000	Bronze
AlTiSiN	4000	3.0	0.4	1200	Blue
TiN	2500	2-3	0.5	600	Gold

Applications & Details

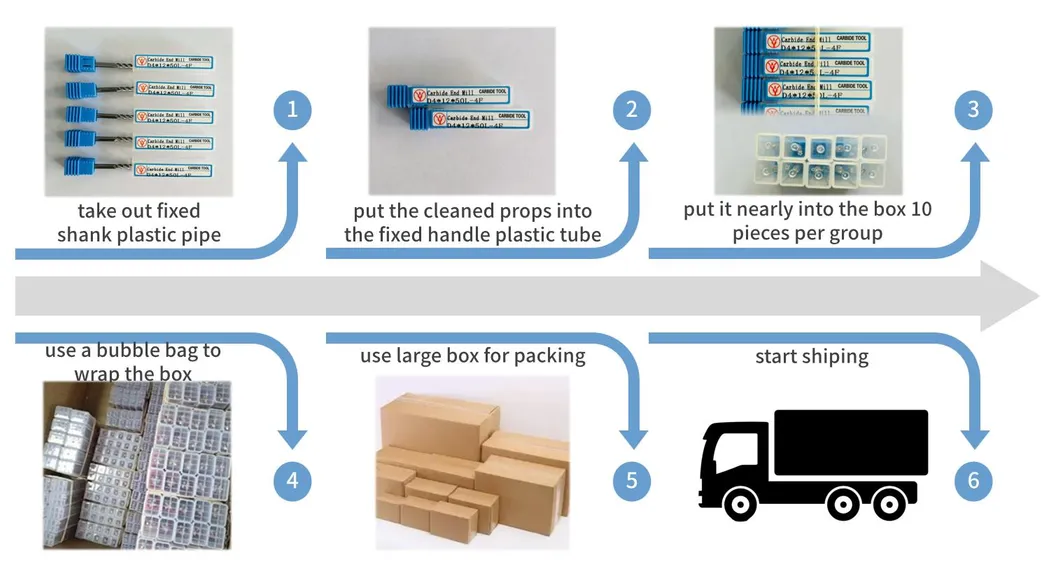

Exhibition & Packaging

Frequently Asked Questions

Are you a manufacturer? Do you have your own factory?

Yes, we are a professional manufacturer with more than 20 years of experience in this solid carbide cutting tools field.

What products can we buy from you?

We supply carbide end mills, ball end mills, round nose end mills, thread end mills, carbide drills, saw blade cutters, carbide round rods, and various custom milling tools.

Is free shipping possible?

We do not offer free shipping services directly. However, we can offer volume-based discounts for large orders and coordinate with partner express shipping companies to secure the best transport rates.

Can you ship our products to our shipping forwarder in China?

Yes, if you have a designated shipping agent/forwarder located in China, we are glad to arrange direct domestic delivery to their warehouse.

What CNC grinding machines do you use for manufacturing?

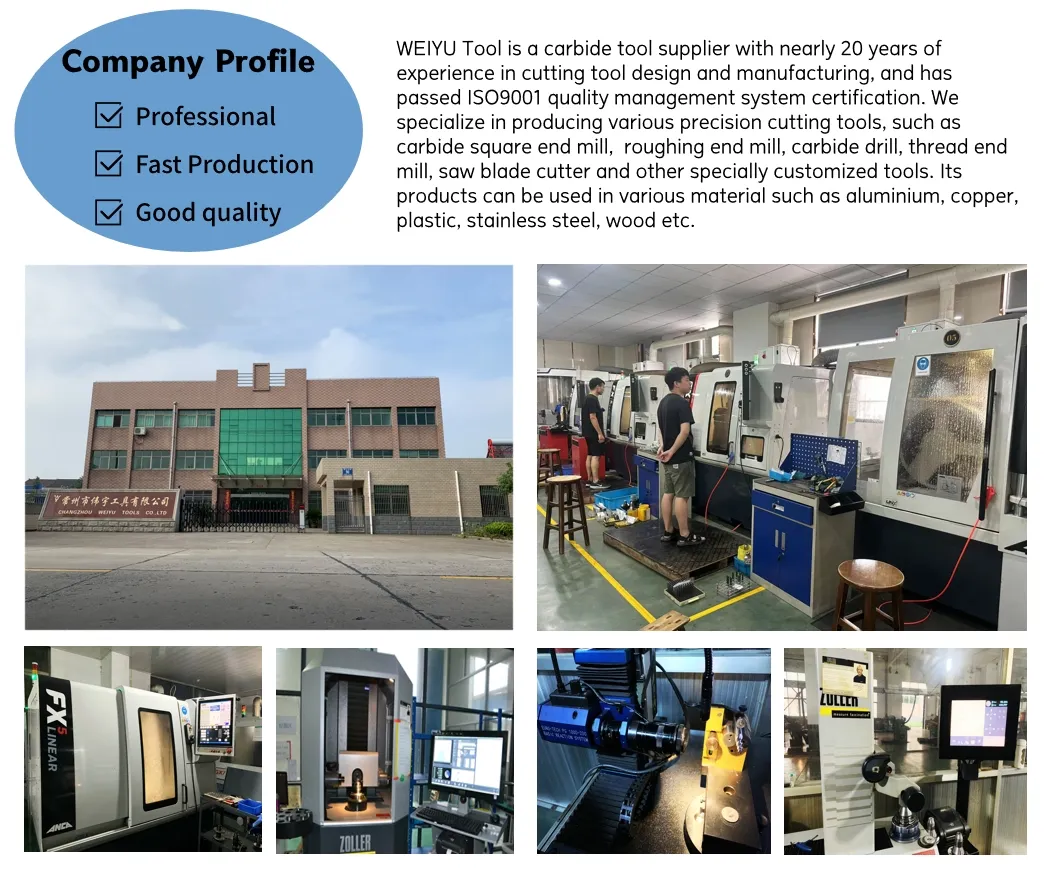

Our workshop is equipped with more than 5 units of advanced ANCA and Walter CNC grinding machines, run by professional technicians to guarantee high precision, reliability, and short turnaround times.

Can you produce custom/special cutting tools according to drawings?

Yes, we can. We accept custom designs. Please send us your drawings, and our engineering team will evaluate them and reply with feedback within one working day.
