DentFix Tool
1 / 5
| D | d1 | P | d2 | l1 | L2 | Z |
|---|---|---|---|---|---|---|
| M3 | 2.35 | 0.5 | 4 | 50 | 6 | 3 |
| M4 | 3.15 | 0.7 | 4 | 50 | 6 | 3 |
| M5 | 4 | 0.8 | 6 | 50 | 10 | 3 |
| M6 | 4.75 | 1 | 6 | 60 | 12 | 4 |
| M8 | 6.45 | 1.25 | 8 | 60 | 16 | 4 |
| M10 | 8.1 | 1.5 | 10 | 75 | 20 | 4 |
| M12 | 9.75 | 1.75 | 12 | 75 | 24 | 4 |
| M14 | 11.4 | 2 | 14 | 75 | 28 | 4 |
| M16 | 13.3 | 2 | 16 | 90 | 32 | 6 |
| M18 | 14.75 | 2.5 | 18 | 90 | 36 | 6 |
| M20 | 16.65 | 2.5 | 18 | 100 | 40 | 6 |
| Super Raw Material | |||
|---|---|---|---|
| HRC 45 | HRC 55 | HRC 60 | HRC 65 |
| YG10X | YL10.2 & WF25 | Germany K44 & K40 | Sandvik H10F |
| Grain size 0.7 μm, Co10%, Flexural strength 3320N/mm² | Grain size 0.6 μm, Co10%, Flexural strength 4000N/mm² | Grain size 0.5 μm, Co12%, Flexural strength 4300N/mm² | Grain size 0.5 μm, Co10%, Flexural strength 3320N/mm² |
| Super Coating | |||||
|---|---|---|---|---|---|
| Coating | Hardness HV | Thickness μm | Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Bronze |
| AlTiSiN | 4000 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |

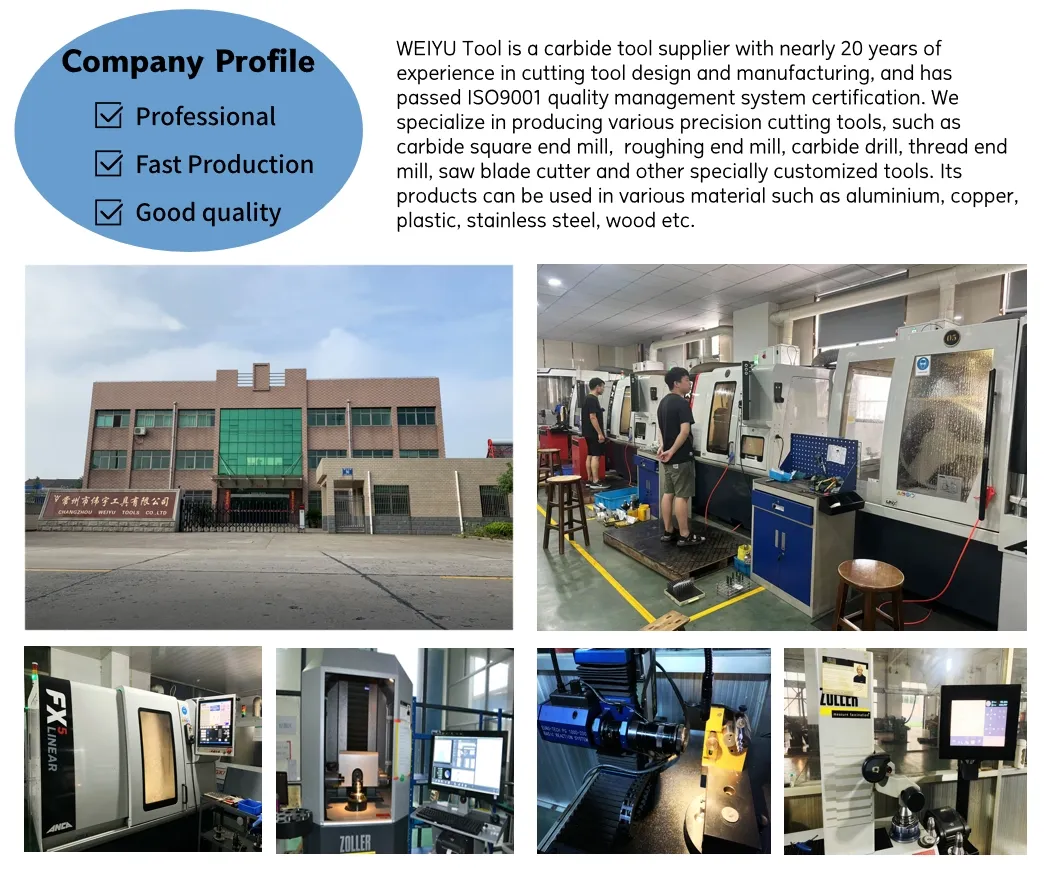

We are professional manufacturer and we have more than 20 years experience in this field.
You can buy carbide end mill, ball end mill, round nose end mill, thread end mill, carbide drill, saw blade cutter, carbide round rod and so on.
We can't offer free shipping service, but we will give you some discount if you buy large quantity products. We have cooperation express companies that can offer you the best price of shipping cost.
Yes, if you have Forwarder in China, we are willing to send products to him/her.

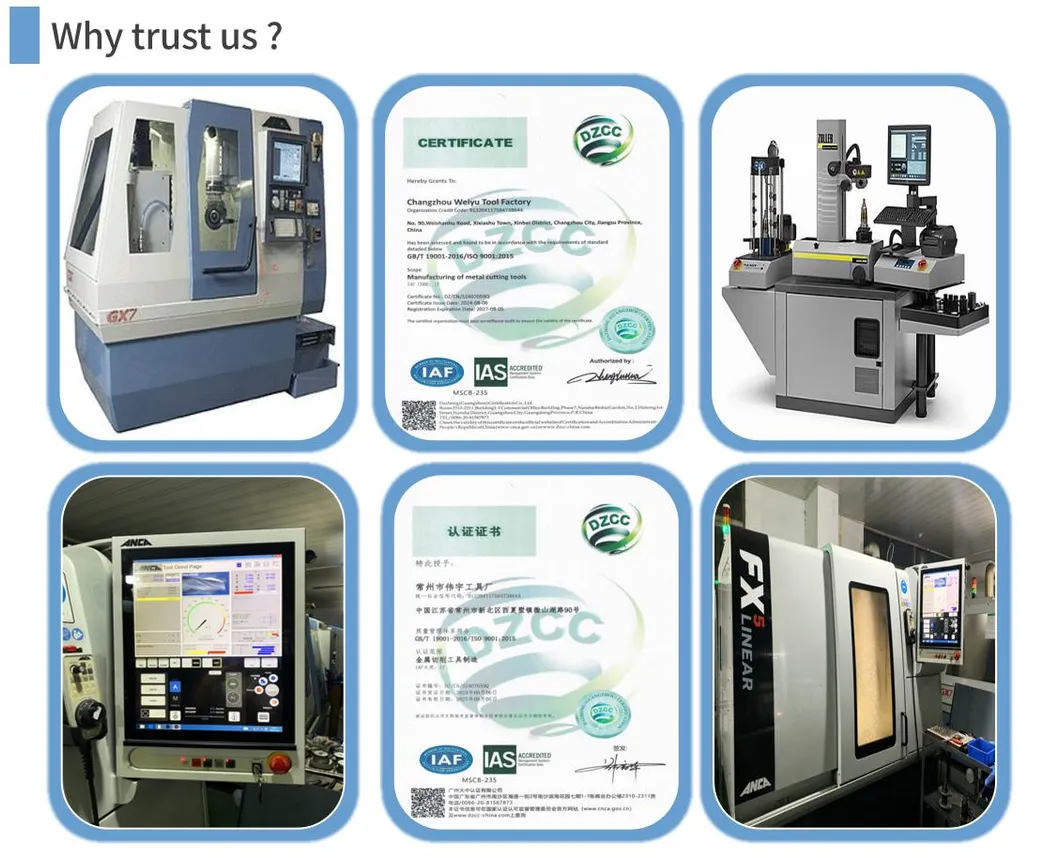

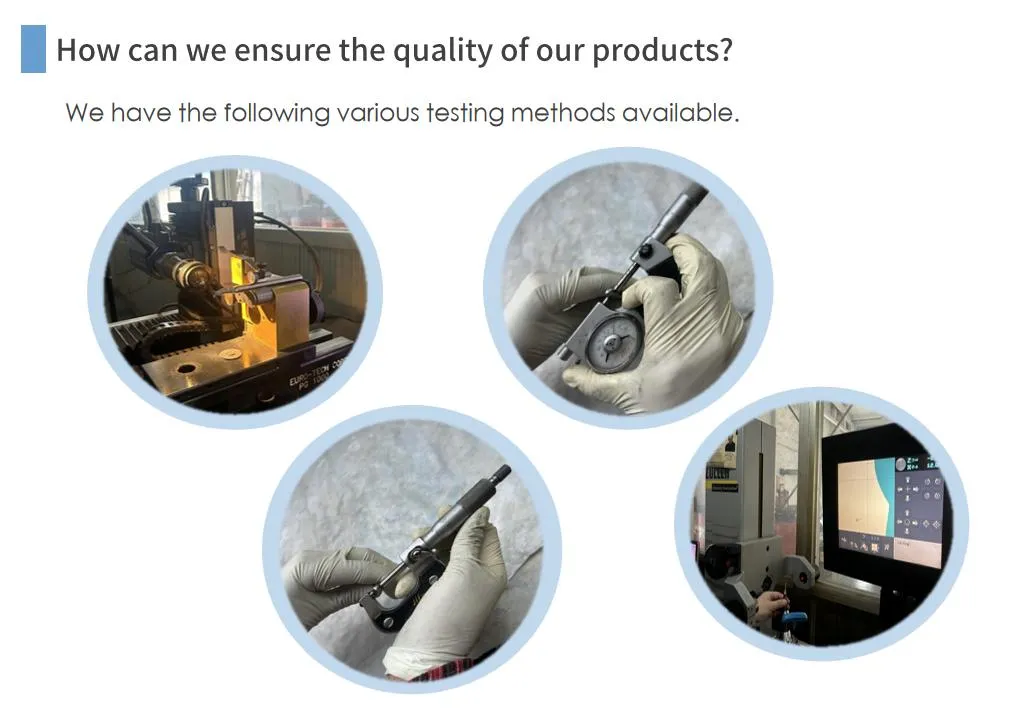

We have more than 5 PCS ANCA, Walter CNC grind machines, and professional staff to make sure the good quality, with short delivery time.
Yes We can. We will check the drawing and reply you in 1 workday.
