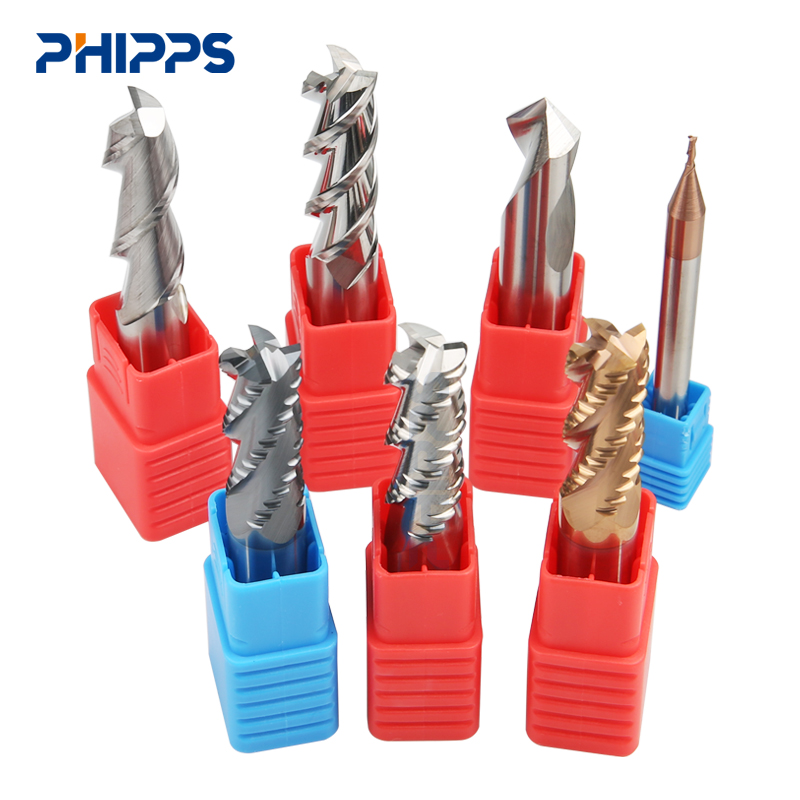

HRC45/55/65 2/3/4 flutes indexable micro Custom Tungsten carbide end mill CNC cutting tools CNC milling cutters for metal
| Product Name | Custom Tungsten carbide end mill CNC cutting tools CNC milling cutters for metal |
|---|---|
| Material | 100% raw material |
| Coating | AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, DLC or your requirements |
| Flutes | 2F/3F/4F/Customized |
| Type | Carbide end mill |
| HRC | HRC45/55/60/65 |
| Tolerance | ±0.01mm |
| Machine Type | CNC Milling Machine, Engraving machine, High speed machine |
| Specification | D12*45*d12*100L-4F |
All cutting materials are from international famous brands, ensuring high hardness and long tool life.
| HRC | Grade | Helix Angle | Co Content (%) | Grain Size (UM) | Bending Strength (N/mm²) | Application |
|---|---|---|---|---|---|---|
| HRC45 | YG10X | 35° | 10% | 0.8 | 3800 | General steel, cast iron. |
| HRC55 | ZK30UF | 35° | 10% | 0.6 | 3800 | Carbon steel, alloy steel, cast iron. |
| HRC60 | GU25UF | 35°/45° | 12% | 0.4-0.5 | 4200 | Carbon steel, alloy steel, stainless steel, cast iron. |
| HRC65 | GU25UF | 45° | 12% | 0.4 | 4300 | Carbon steel, alloy steel, stainless steel, cast iron. |

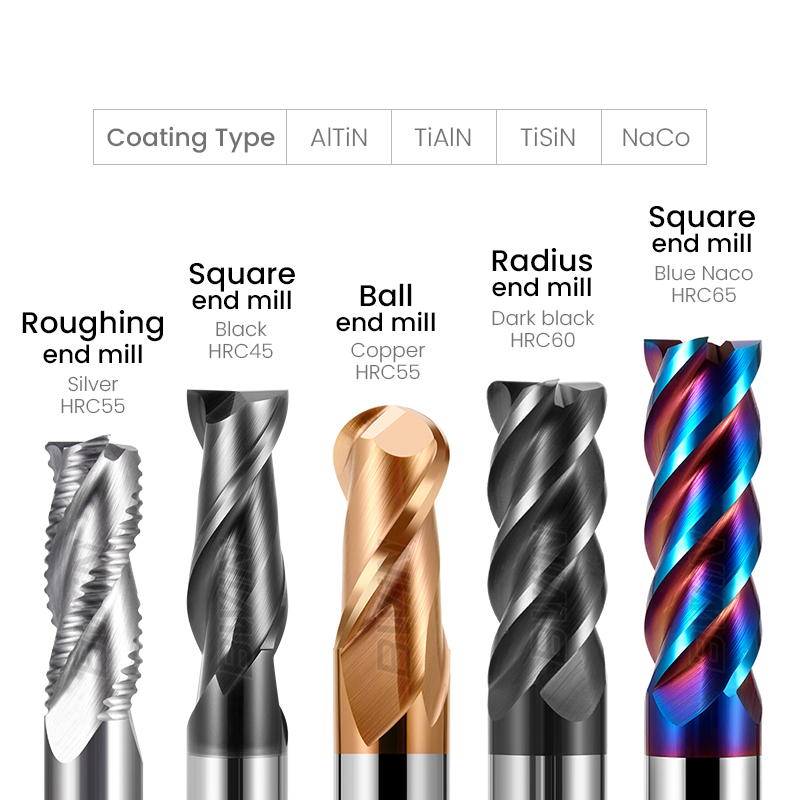

Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
| Coating | Hardness(HV) | Thickness (UM) | Friction Coefficient | Oxidation Temp.(°C) | Color |
|---|---|---|---|---|---|
| AlTiN | 3500 | 2.5-3 | 0.3 | 850°C | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900°C | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1100°C | Copper |
| AlTiSiN | 4000 | 4 | 0.4 | 1200°C | Blue |
| TiN | 2500 | 2.5-3 | 0.5 | 600°C | Gold |

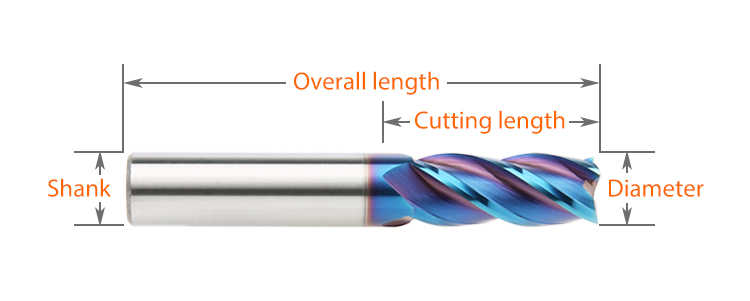

| Specification | Diameter | Cutting Length | Shank | Overall Length | Flutes |
|---|---|---|---|---|---|
| 3*8*3*50 | 3 | 8 | 3 | 50 | 4 |
| 3*12*3*75 | 3 | 12 | 3 | 75 | 4 |
| 3*15*3*100 | 3 | 15 | 3 | 100 | 4 |
| 1*3*4*50 | 1 | 3 | 4 | 50 | 4 |
| 1.5*4*4*50 | 1.5 | 4 | 4 | 50 | 4 |
| 2*5*4*50 | 2 | 5 | 4 | 50 | 4 |
| 2.5*7*4*50 | 2.5 | 7 | 4 | 50 | 4 |
| 3*8*4*50 | 3 | 8 | 4 | 50 | 4 |
| 3.5*10*4*50 | 3.5 | 10 | 4 | 50 | 4 |
| 4*10*4*50 | 4 | 10 | 4 | 50 | 4 |
| 4*16*4*75 | 4 | 16 | 4 | 75 | 4 |
| 4*20*4*100 | 4 | 20 | 4 | 100 | 4 |
| 5*13*5*50 | 5 | 13 | 5 | 50 | 4 |
| 5*20*5*75 | 5 | 20 | 5 | 75 | 4 |
| 5*25*5*100 | 5 | 25 | 5 | 100 | 4 |
| 1*3*6*50 | 1 | 3 | 6 | 50 | 4 |
| 1.5*4*6*50 | 1.5 | 4 | 6 | 50 | 4 |
| 2*5*6*50 | 2 | 5 | 6 | 50 | 4 |
| 2.5*7*6*50 | 2.5 | 7 | 6 | 50 | 4 |
| 3*8*6*50 | 3 | 8 | 6 | 50 | 4 |
| 3.5*10*6*50 | 3.5 | 10 | 6 | 50 | 4 |
| 4*10*6*50 | 4 | 10 | 6 | 50 | 4 |
| 4.5*12*6*50 | 4.5 | 12 | 6 | 50 | 4 |
| 5*13*6*50 | 5 | 13 | 6 | 50 | 4 |
| 6*15*6*50 | 6 | 15 | 6 | 50 | 4 |
| 6*25*6*75 | 6 | 25 | 6 | 75 | 4 |
| 6*30*6*100 | 6 | 30 | 6 | 100 | 4 |
| 6*40*6*150 | 6 | 40 | 6 | 150 | 4 |
| 7*18*8*60 | 7 | 18 | 8 | 60 | 4 |
| 8*20*8*60 | 8 | 20 | 8 | 60 | 4 |
| 8*28*8*75 | 8 | 28 | 8 | 75 | 4 |
| 8*35*8*100 | 8 | 35 | 8 | 100 | 4 |
| 8*50*8*150 | 8 | 50 | 8 | 150 | 4 |
| 9*23*10*75 | 9 | 23 | 10 | 75 | 4 |
| 10*25*10*75 | 10 | 25 | 10 | 75 | 4 |
| 10*40*10*100 | 10 | 40 | 10 | 100 | 4 |
| 10*50*10*150 | 10 | 50 | 10 | 150 | 4 |
| 11*28*12*75 | 11 | 28 | 12 | 75 | 4 |
| 12*30*12*75 | 12 | 30 | 12 | 75 | 4 |
| 12*45*12*100 | 12 | 45 | 12 | 100 | 4 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 4 |
| 14*45*14*100 | 14 | 45 | 14 | 100 | 4 |
| 14*60*14*150 | 14 | 60 | 14 | 150 | 4 |
| 16*45*16*100 | 16 | 45 | 16 | 100 | 4 |
| 16*60*16*150 | 16 | 60 | 16 | 150 | 4 |
| 18*45*18*100 | 18 | 45 | 18 | 100 | 4 |
| 18*70*18*150 | 18 | 70 | 18 | 150 | 4 |
| 20*45*20*100 | 20 | 45 | 20 | 100 | 4 |
| 20*70*20*150 | 20 | 70 | 20 | 150 | 4 |

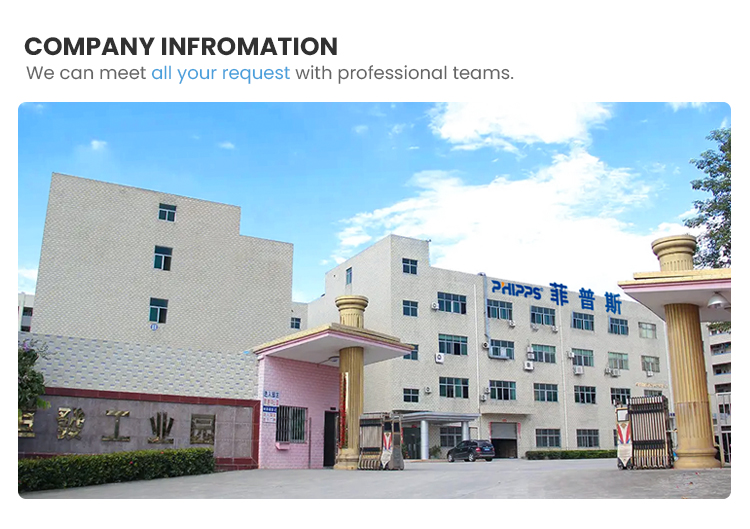

We are a leading professional manufacturer specializing in high-precision carbide cutting tools and CNC solutions. We focus on the R&D, production, and sale of premium tungsten carbide inserts, milling cutters, drill bits, and various non-standard customized tools.

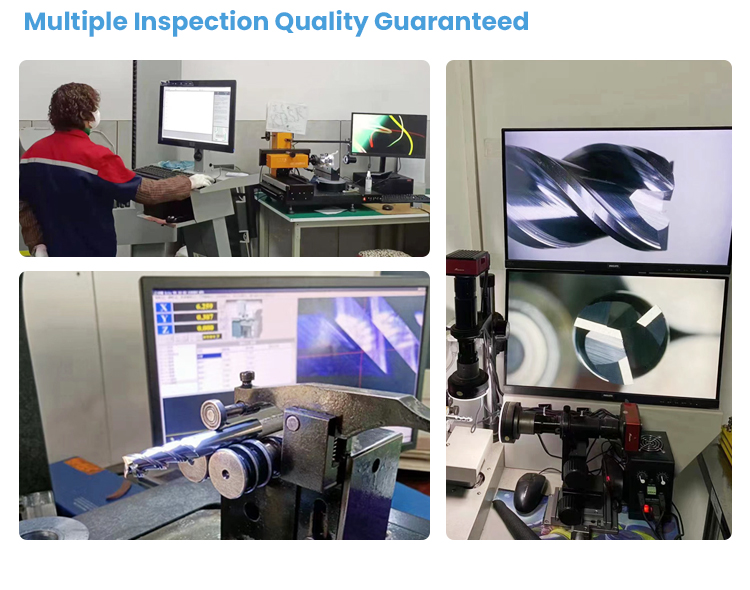

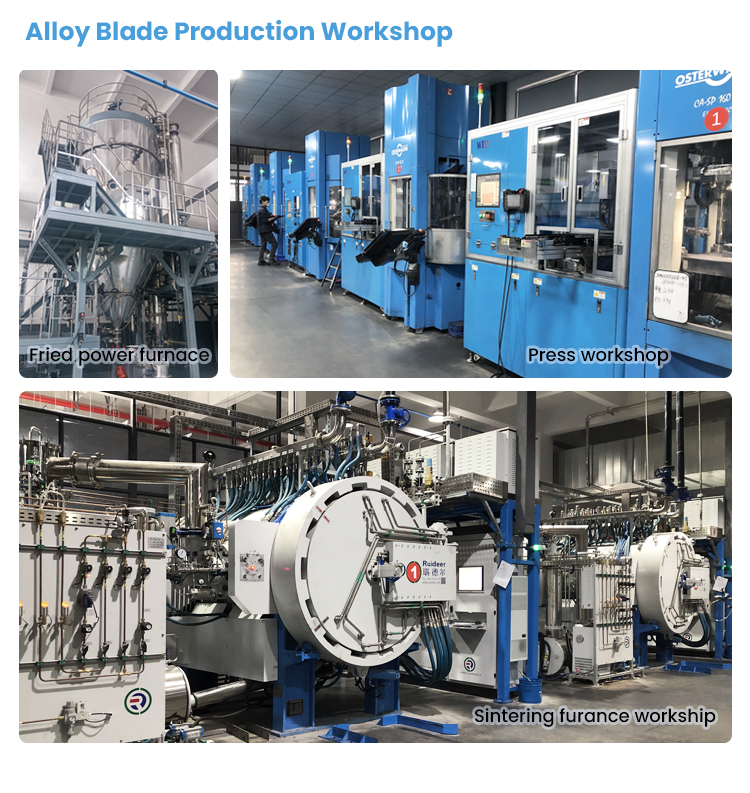

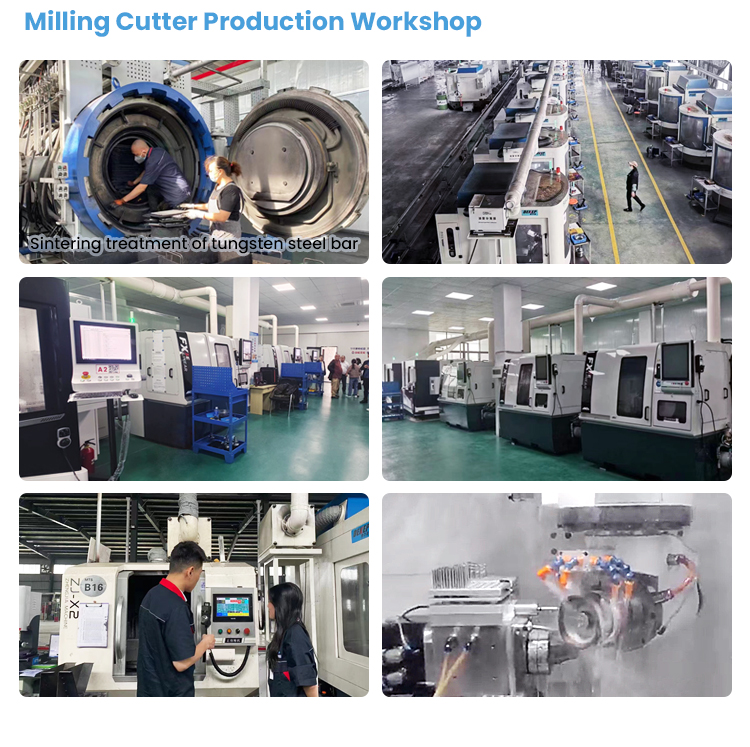

Manufacturing Excellence & Quality Assurance: To ensure world-class precision, our plant has introduced 20 advanced CNC grinders and high-end testing equipment from Germany, Australia, and Japan. By integrating top-tier manufacturing technology with rigorous quality control, our tools deliver the core advantages of extreme precision, extended service life, and maximum machining efficiency.

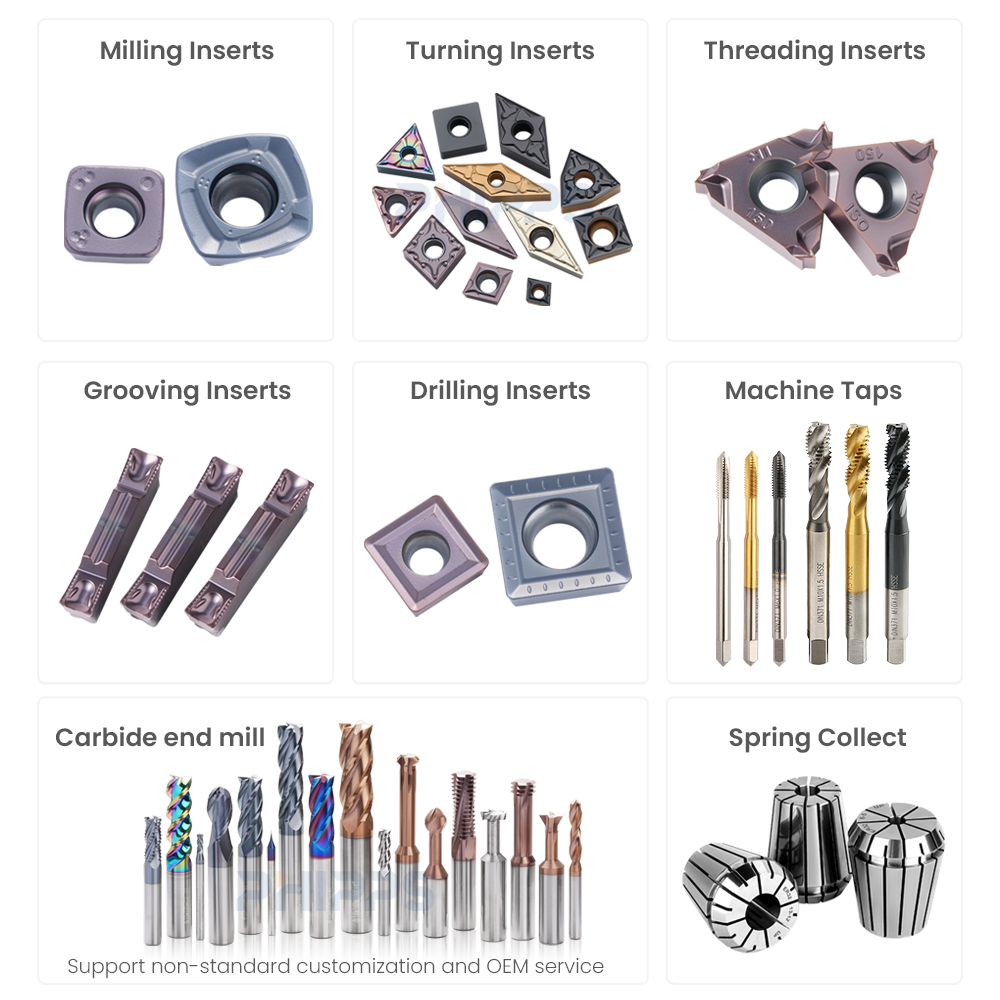

One-Stop CNC Tooling Solutions: We offer a comprehensive catalog of high-quality CNC spare parts and accessories to meet diverse industrial needs:

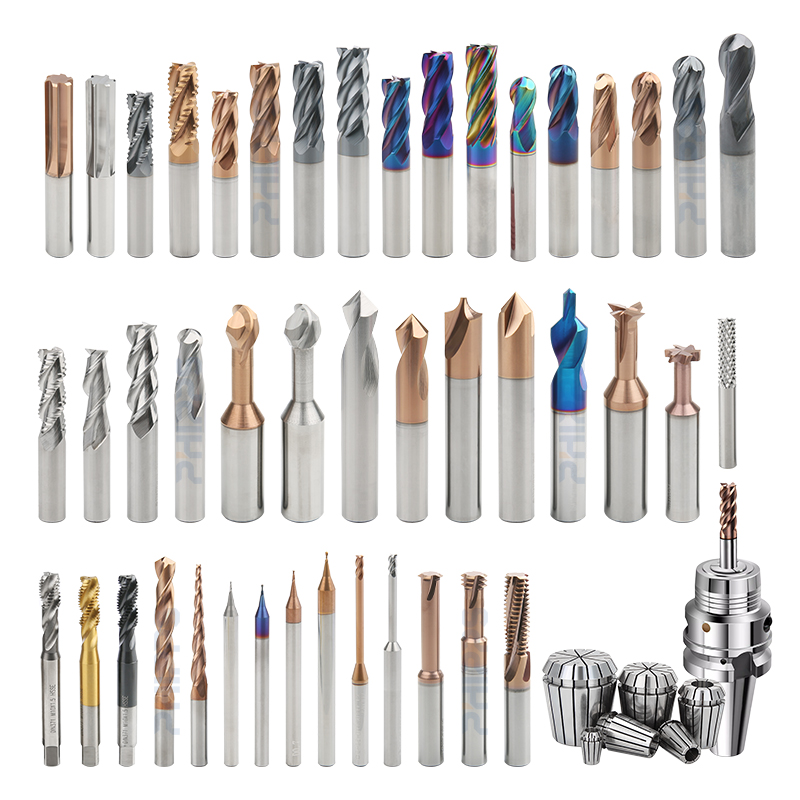

• Cutting Tools: Carbide end mills, carbide inserts, CNC turning tools, and face milling tools.
• Hole & Threading: High-efficiency drilling tools, thread tapping tools, and carbide burrs.
• Tooling Systems: Precision tool holders, machine vises, live centers, chucks, and CNC angle heads.
• Specialized Accessories: Carbide saw blades, clamping kits, and various CNC machine components.
Commitment to Your Success: We go beyond supplying products. We provide the industry's best parts support and technical services to ensure your machines operate at peak performance and your business runs smoothly. Choose us - Where Precision Meets Productivity.
