Our factory has advanced research and development means, perfect development materials, reasonable engineering and assembly tools, smooth product assembly lines, perfect quality assurance system and the highest performance cost in the world.
Our products are affordable and have a long service life. The product model can meet your needs and support customization.
We provide you with sufficient profit margins. We provide you with testing to ensure the quality of the product before leaving the factory. At the same time, we support customized colors and product brands.

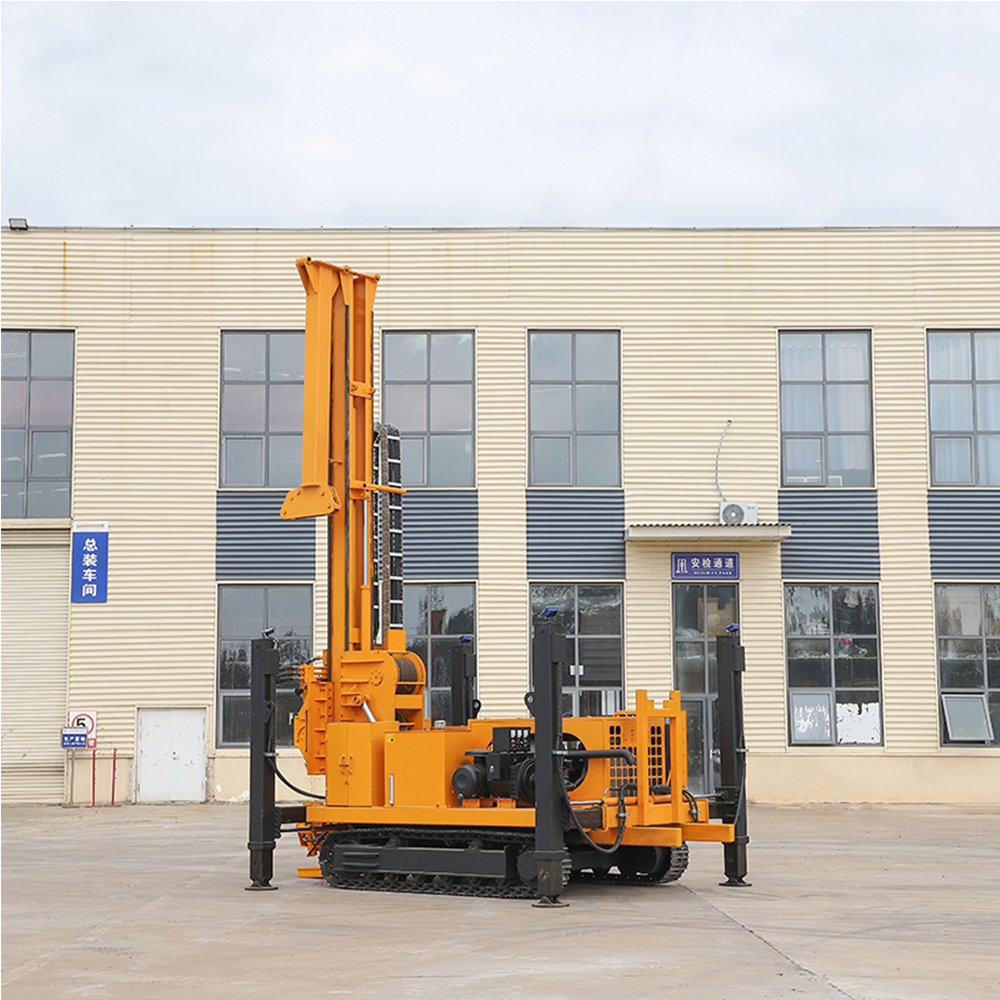

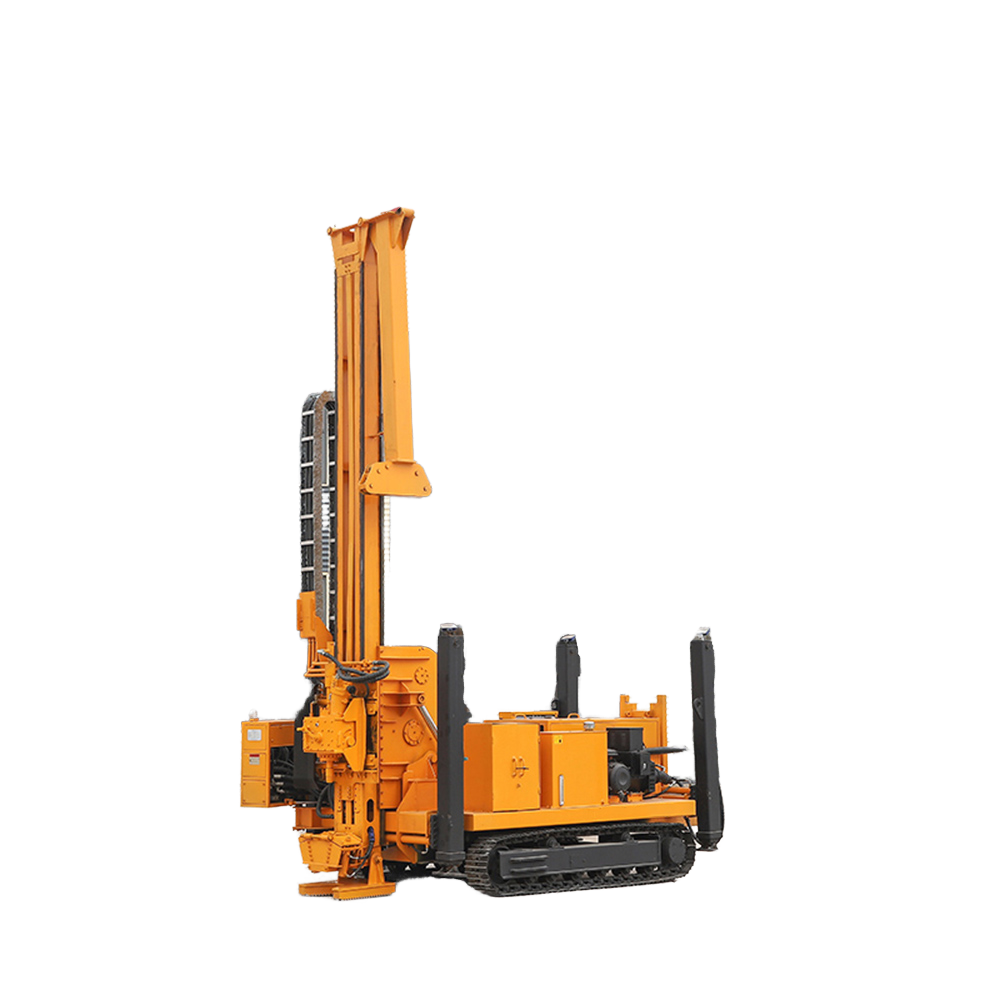

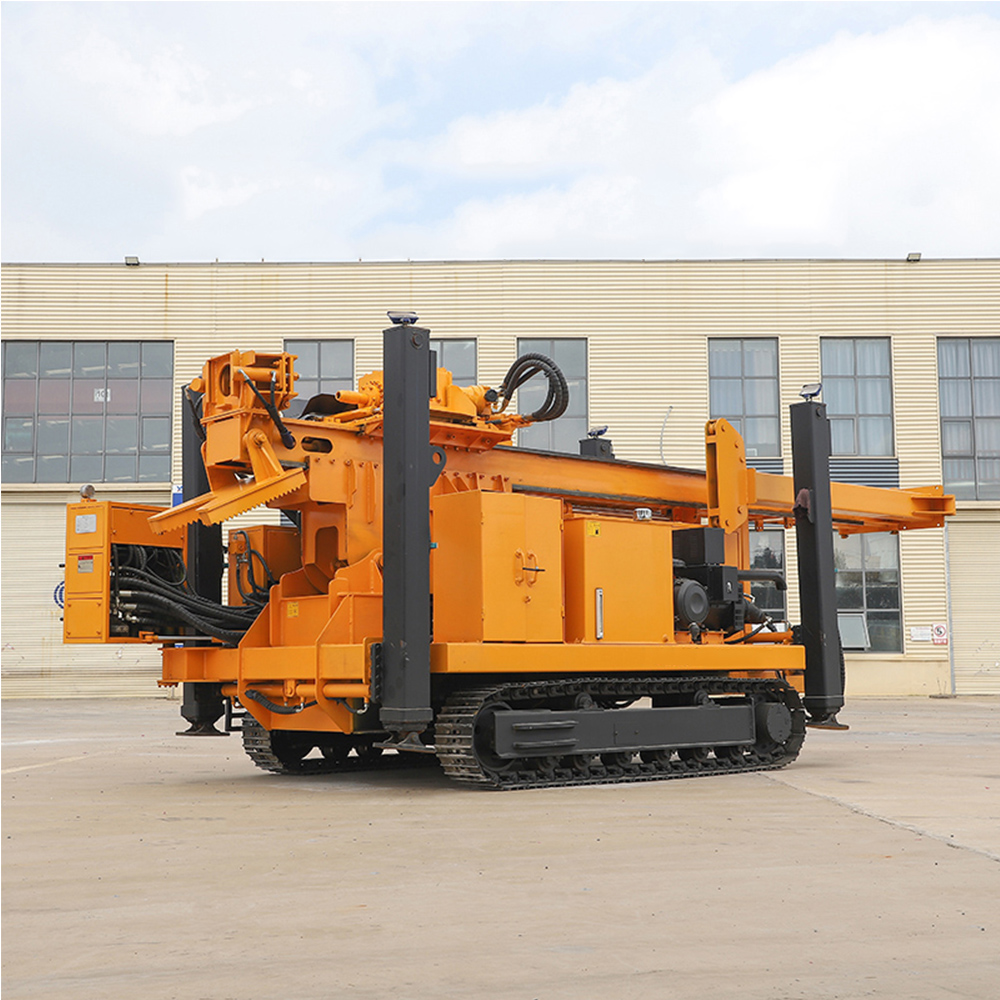

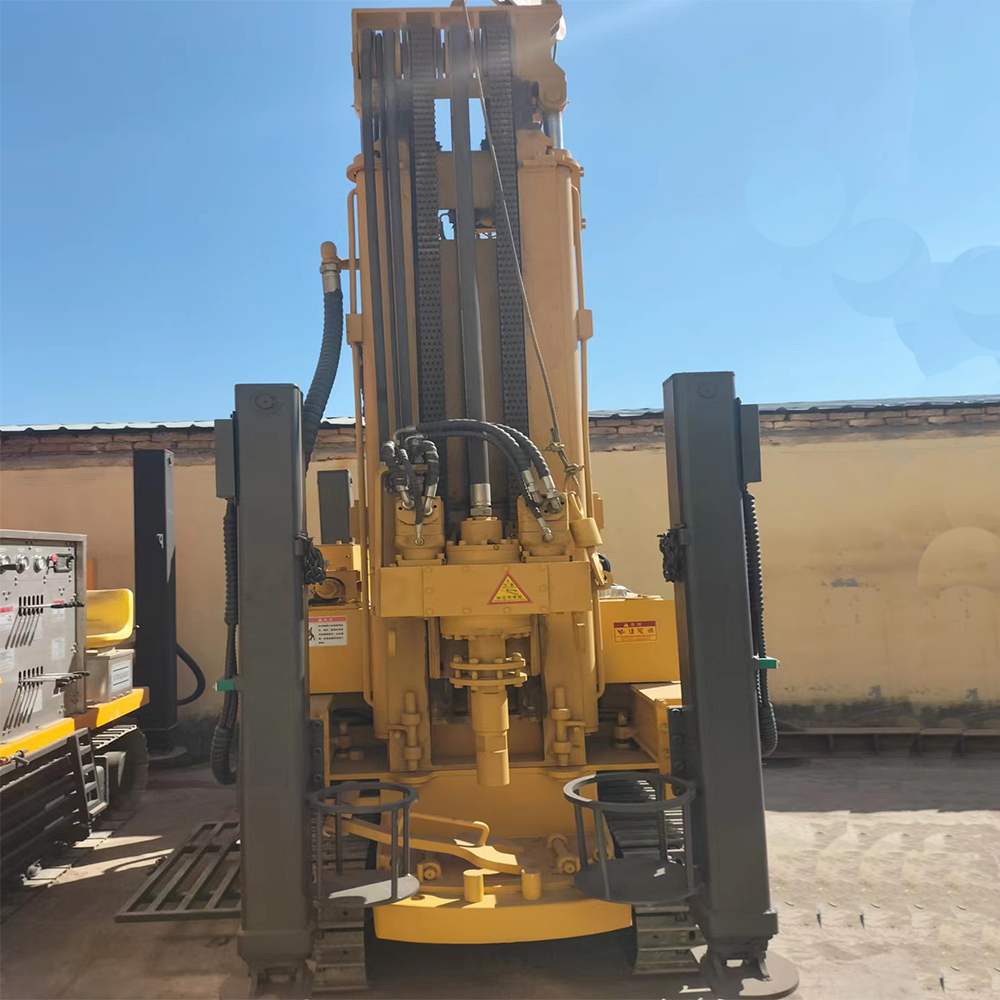

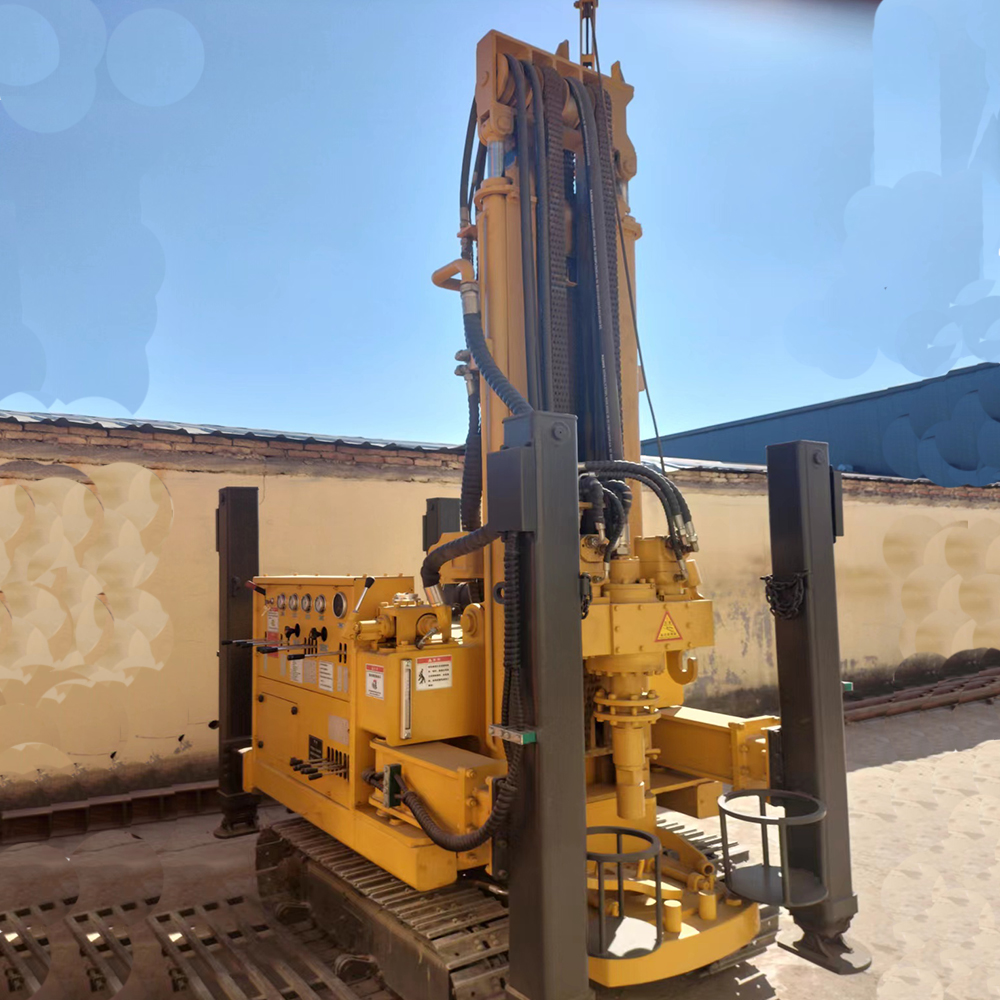

| Specifications | BX300B |
|---|---|
| Maximum depth(m) | 300 |
| Max drilling diameter(mm) | 105-273 |
| Rod length(m) | 3 |
| Rod diameter(mm) | 76/89/102 |
| Power head stroke(m) | 3.6 |
| Winch lifting force(T) | 1.5 |
| Lifting force(T) | 16 |
| Max rotary torque(Nm) | 6600 |
| Max rotary speed(r/min) | 100 |
| Power head motor | HMV8K500 |
| Engine model | Yuchai Power 83 |
| Oil pump model | 40/40/20 gear pump |
| Leg oil cylinder travel | 1.3M |
| Walk | Steel track walking with deceleration walking motor |
| Moving speed | 2.5km/h |
| Boundary dimension | 2400*1250*2000mm |
| Whole unit weight | 5.5t |
| Valid loading size | 3m horizontally and 2.62m vertically |
| Adaptation conditions | Loose layer and bedrock |
| Recommended air compressor | Kaishan 29-23, large aperture requires 31-25 |
