Product Description

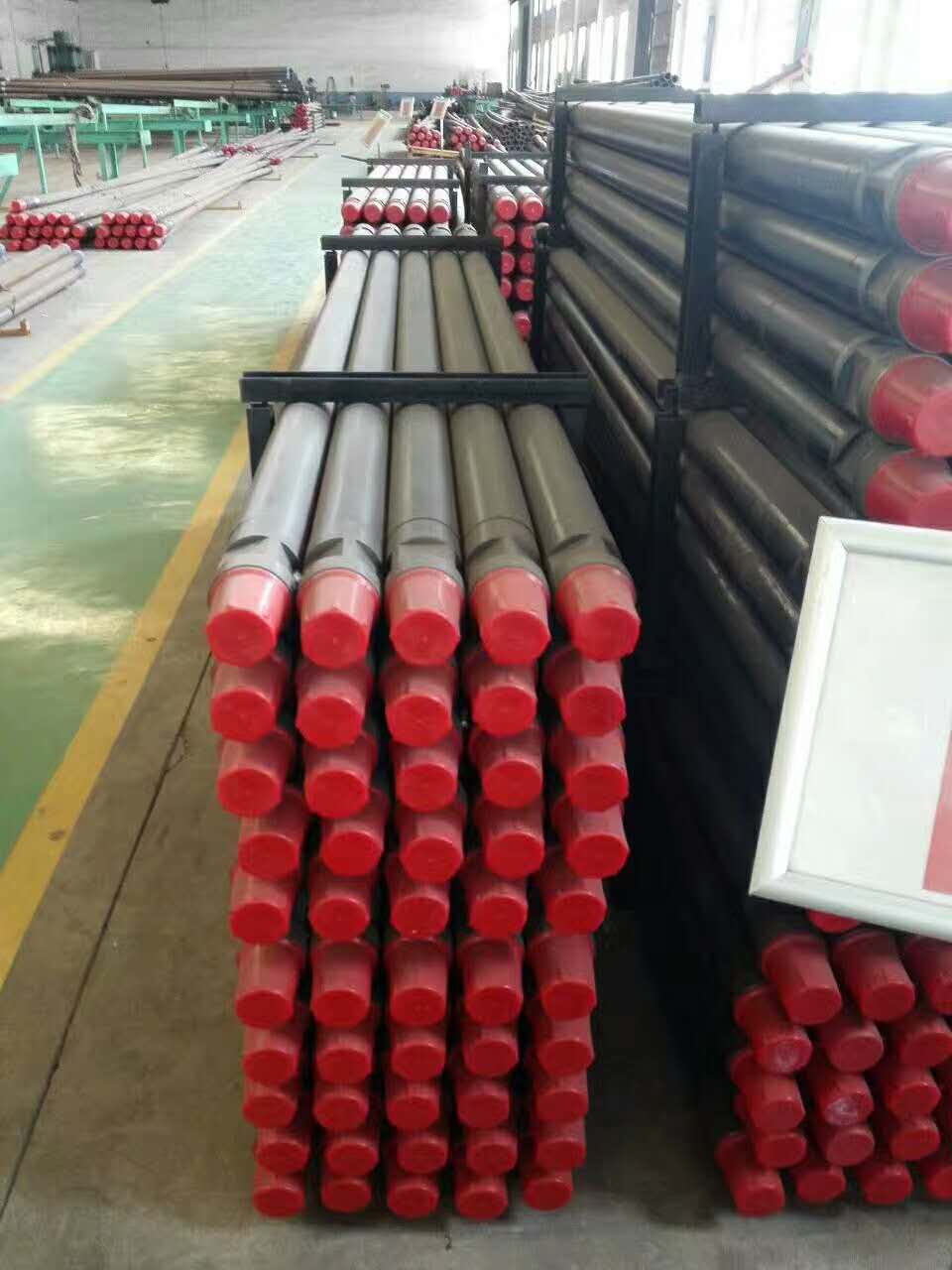

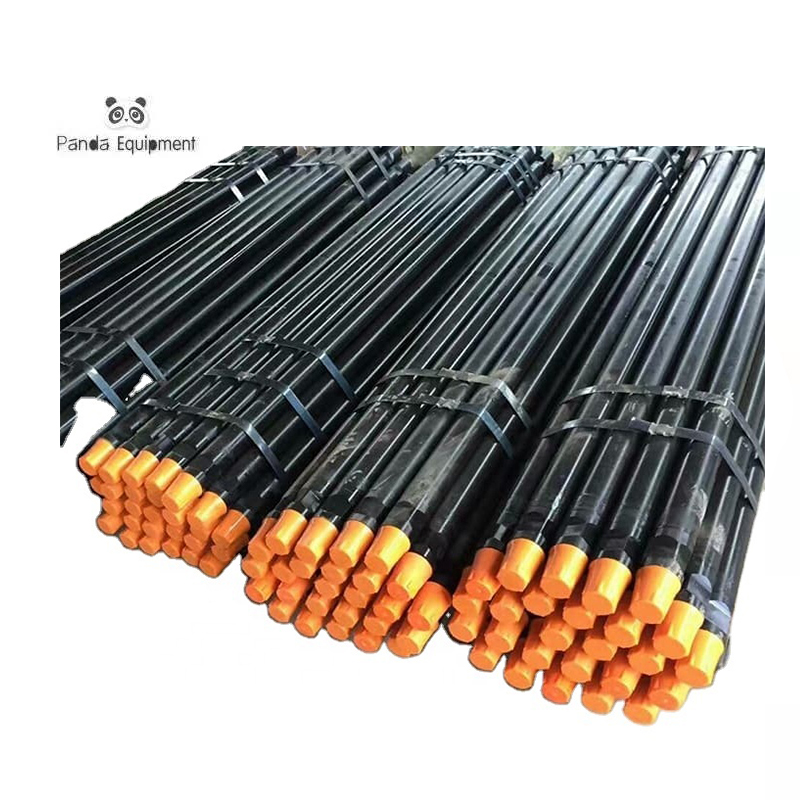

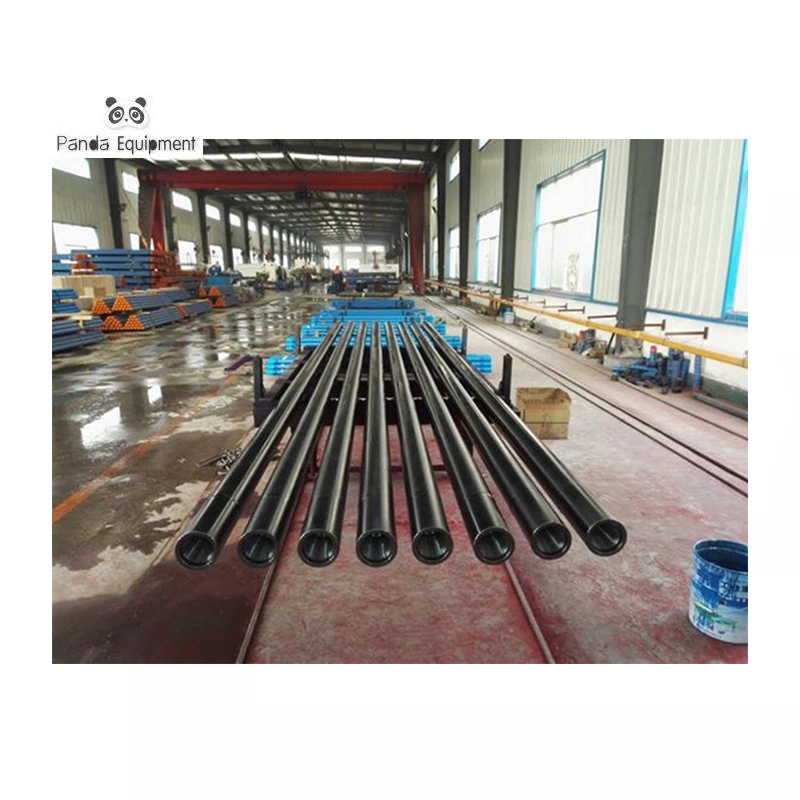

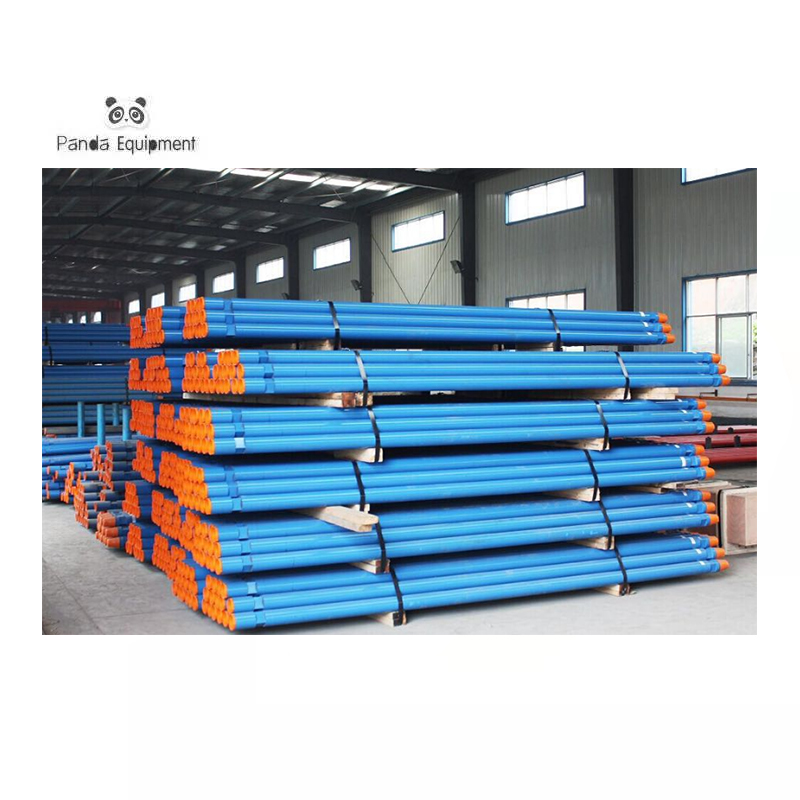

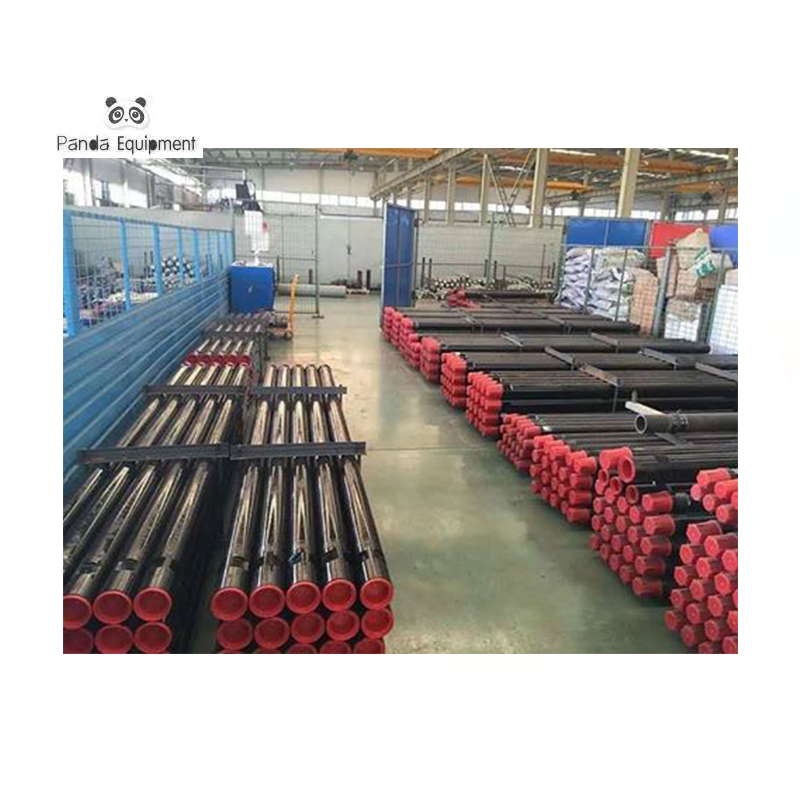

Drill pipes that are used in applications such as DTH / DTHR / DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.

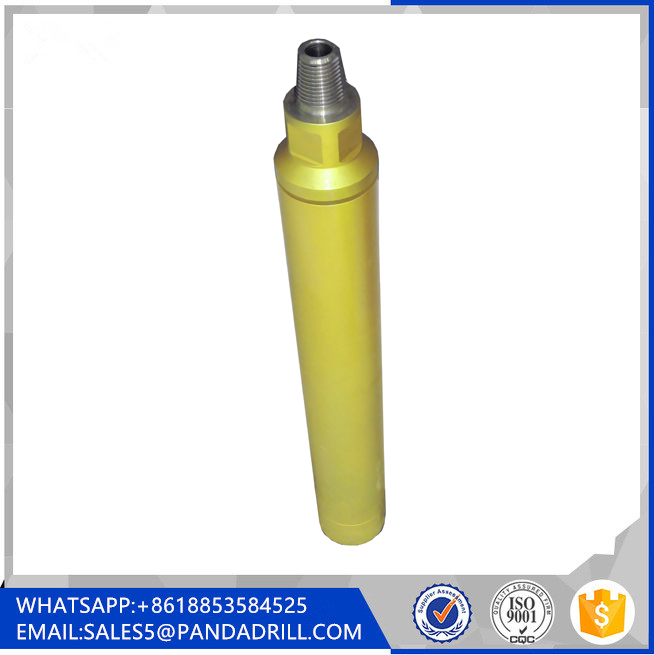

According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.

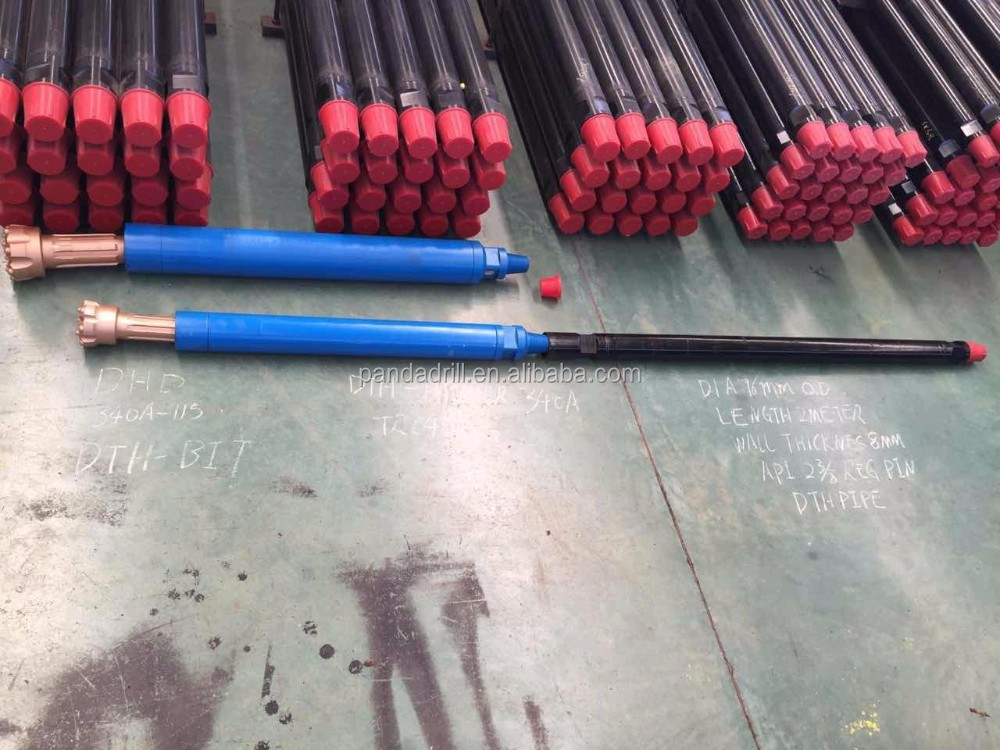

Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.
Specification
- Reliable working performance
- Outside Size: 60mm, 76mm, 89mm, 114mm, 140mm
- Thread: API Reg
- Wall Thickness: 5.5mm / 6.5mm / 7.5mm / 8.5mm / 10mm
Normal Specifications
| Code |
PA50 |
PA60 |
PA73 |
PA89 |
| Outer Diameter (mm) |
50 |
60 |
73 |
89 |
| Inner Diameter (mm) |
48 |
58 |
57 |
69 |
| Length |
1.5m / 3m / 4.5m |
1.5m / 3m / 4.5m |
1.5m / 3m / 4.5m / 6m |
1.5m / 3m / 4.5m / 6m |
| Unit Weight (KG) |
6.5kg/m |
8.6kg/m |
12.8kg/m |
19.4kg/m |
FAQ
QCan I have a sample for testing?
Samples are still to be paid but a discounted price can be provided.
QDo you have the inspection procedures?
Yes, we conduct 100% strict inspection and testing for every order before packing.
QHow can I get the after-sale services?
Free replacement will be provided once the problems are confirmed to be caused by our product quality.
QCan I have a visit to your factory before placing an order?
Sure, you are highly welcome to visit our factory.
QWhat sizes of drill tubes are available?
We offer diameters including 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, and 159mm.
QWhat connection threads do you support?
Our drill pipes are equipped with standard API connections, such as 2 3/8" API REG thread, 3 1/2" API REG thread, or API IF thread.
