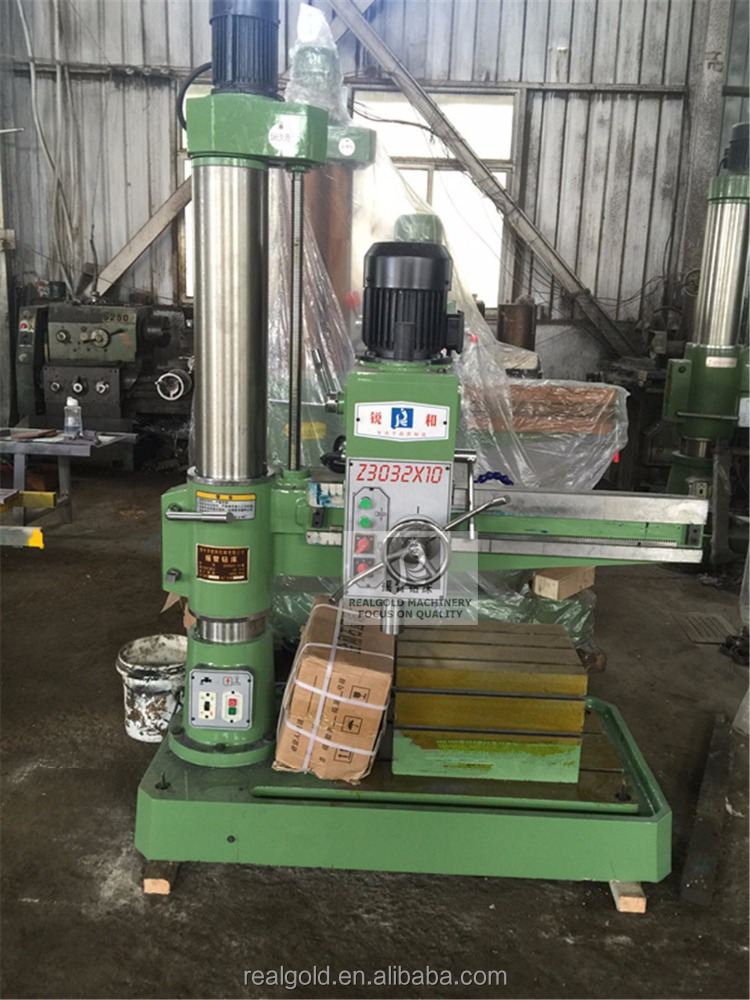

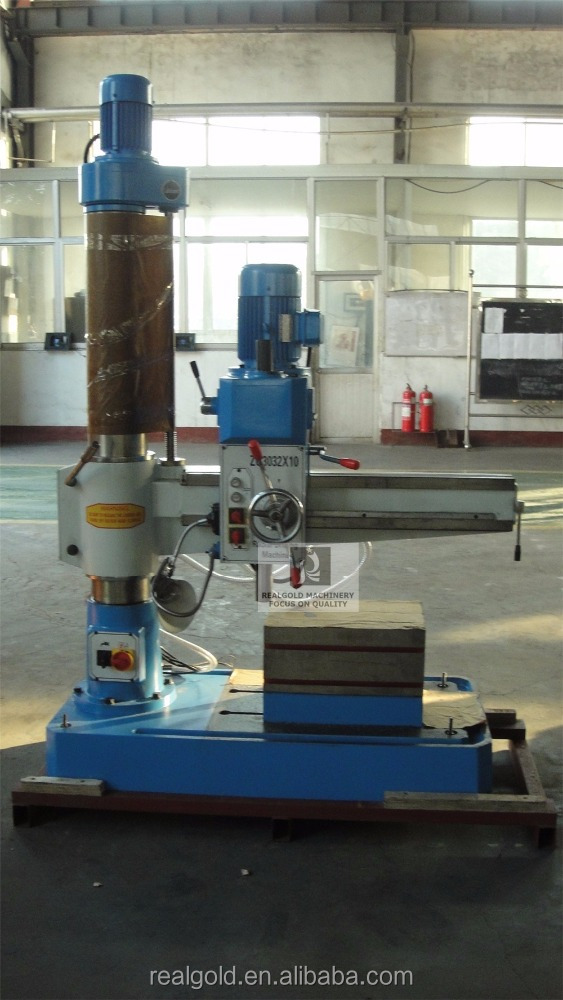

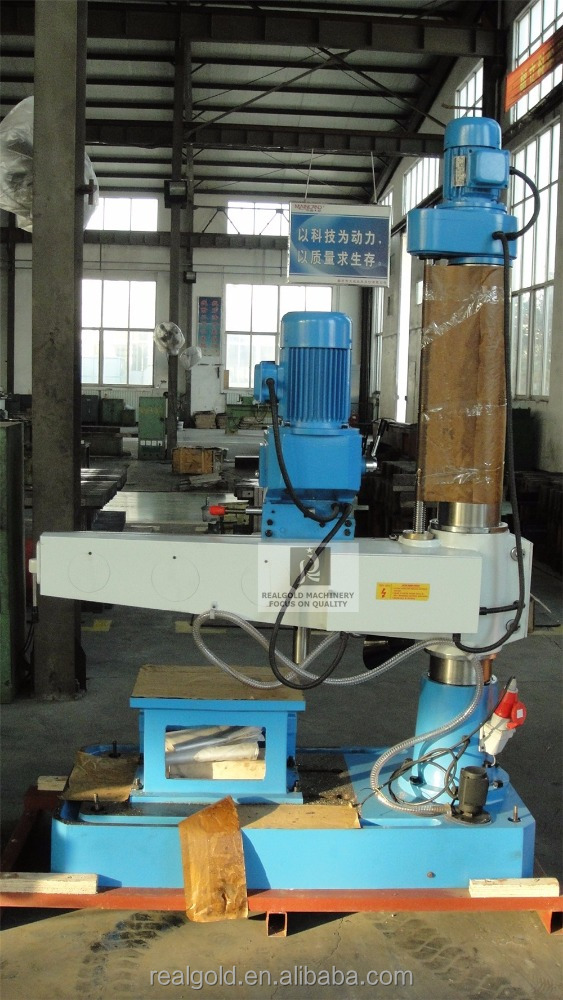

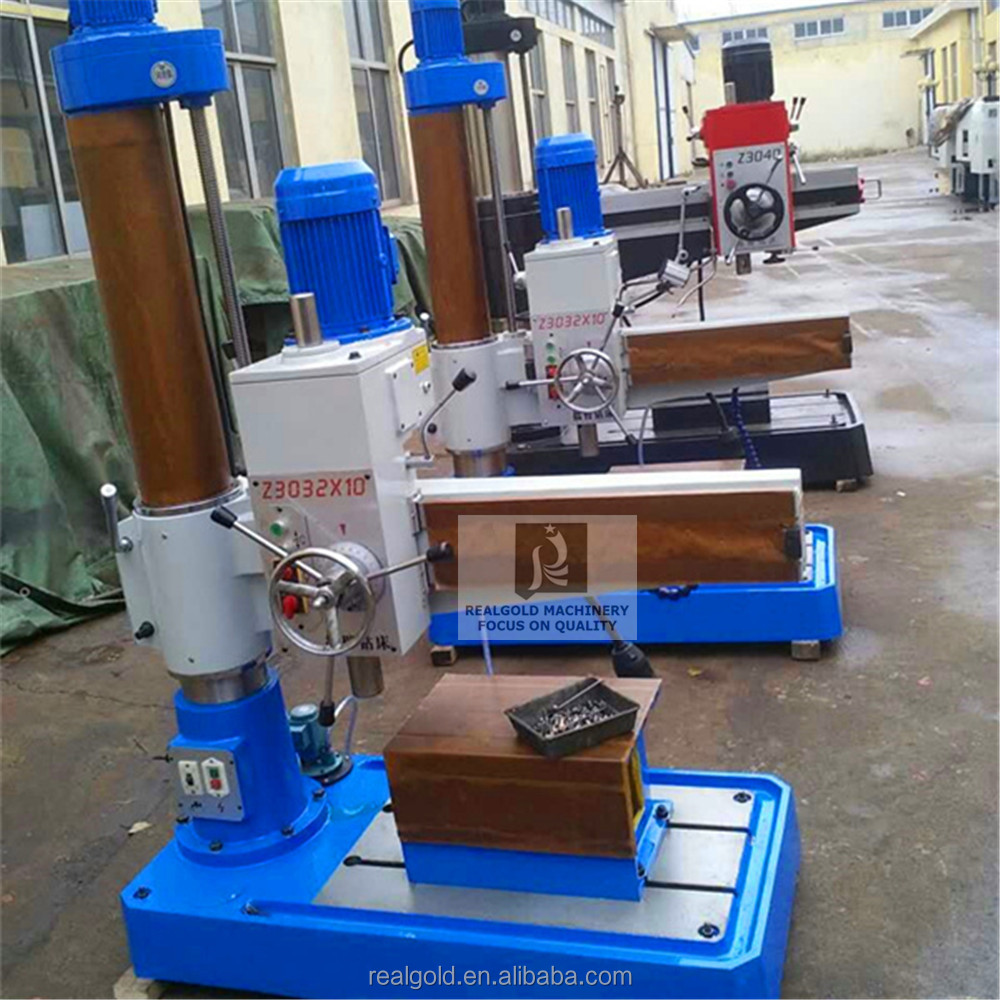

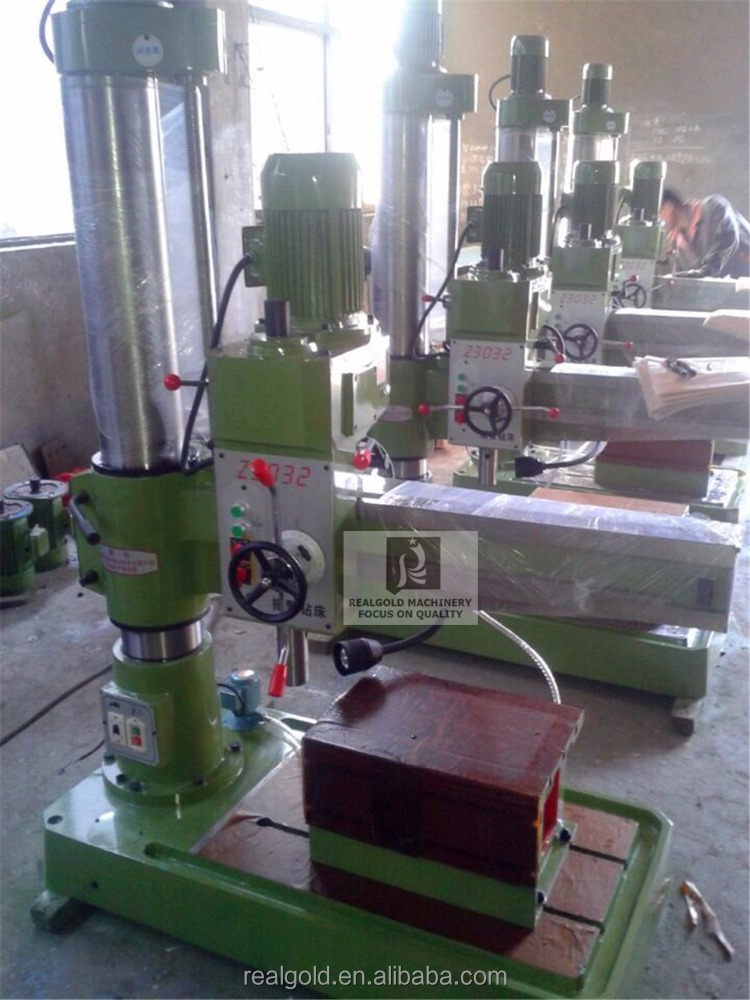

Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
1 / 5
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE
Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE

Z3032X10 RADIAL DRILLING MACHINE WITH LOW PRICE

Send Inquiry

Product Description

Product Description
RADIAL DRILLING MACHINE
Specifications Units Z3032×10
Max. drilling diameter mm Φ32
Column diameter mm 200
Distance of headstock horizontal movement mm 710
Distance spindle nose and working surface of base mm 330-1060
Rocker arm lift distance mm 730
Spindle travel mm 120
Spindle taper - MT4
Spindle speeds range r/min 108 162 262 398 665 1000(6 steps)
Spindle feeding range mm/r 0.10 0.16 0.25(3 steps)
Max. spindle allows feed resistance N 5300
Rocker arm lifting speeds m/min 1.21
Rocker rotary angle ° + 90°
Main motor power kw 1.5/2.2
Lifting motor power kw 0.55
Cooling pump motor power kw 0.04
Net weight kg 1080
Overall dimensions(L×W×H) mm 1400×660×2060

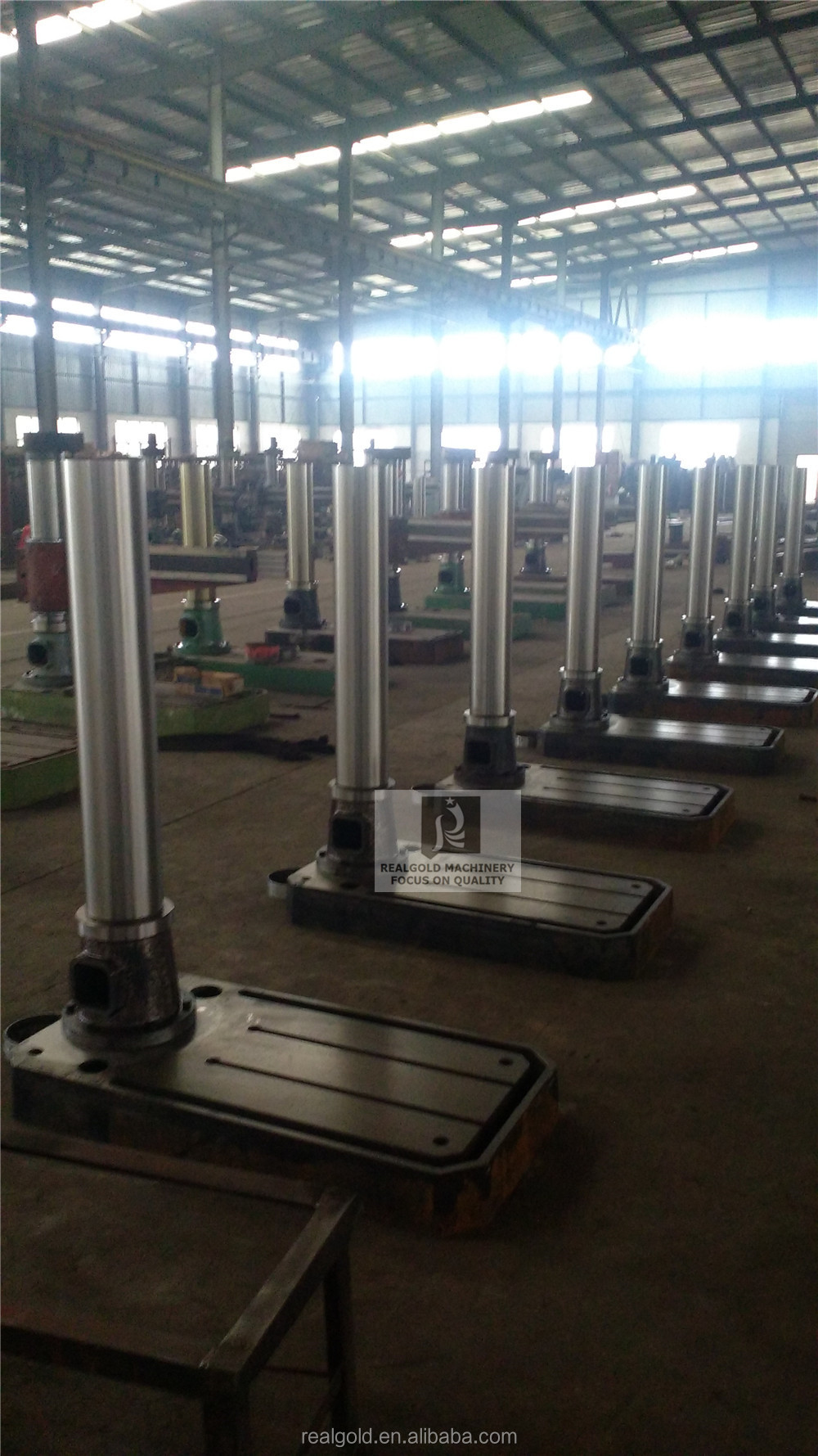

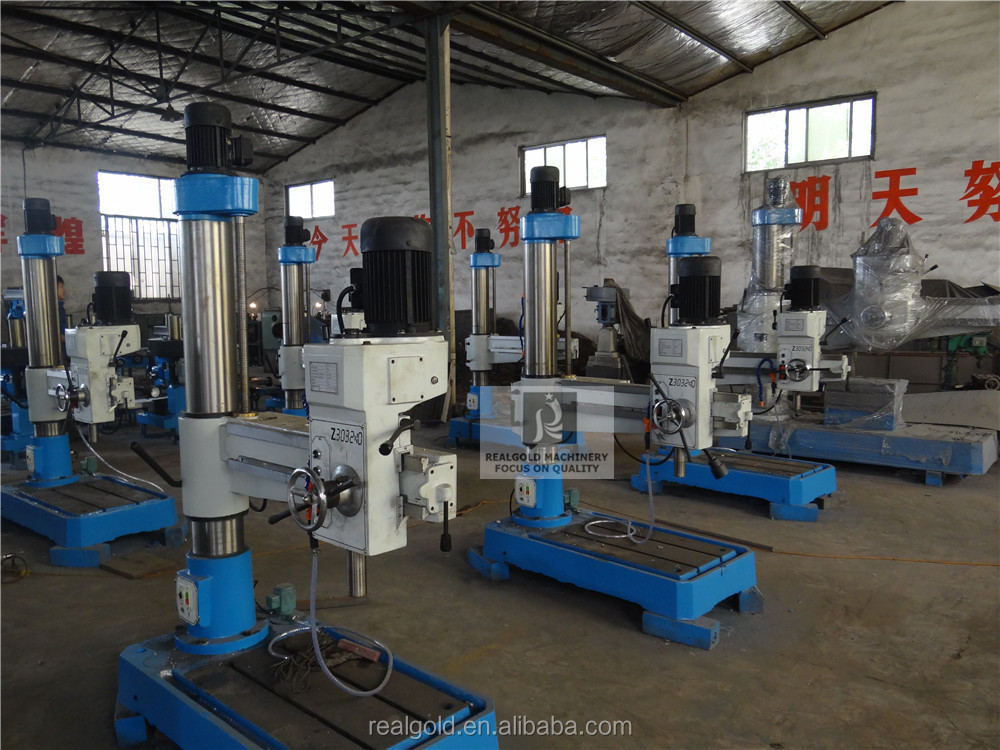

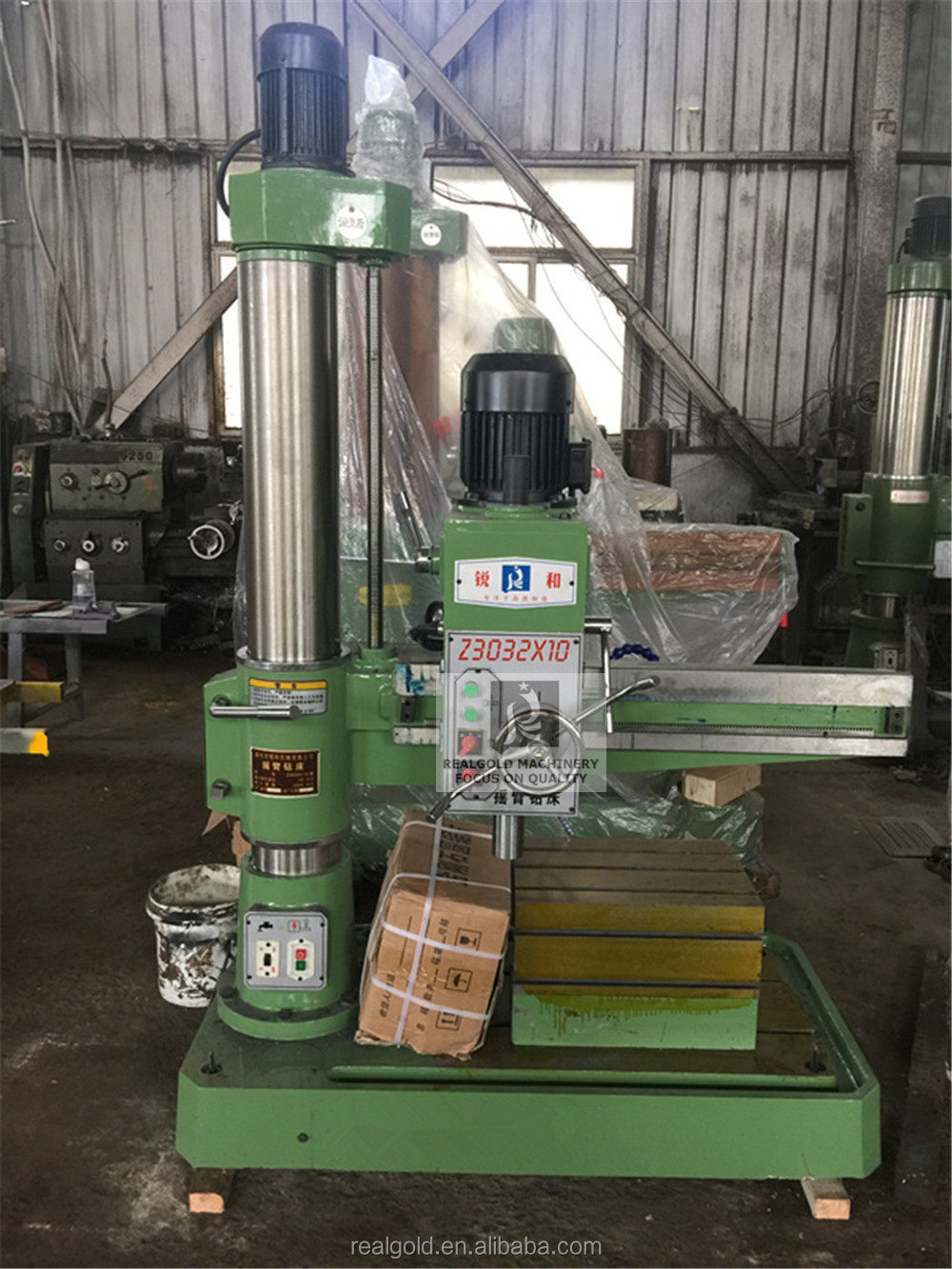

RADIAL DRILLING MACHINE Detail 1 RADIAL DRILLING MACHINE Detail 2
Our Workshop

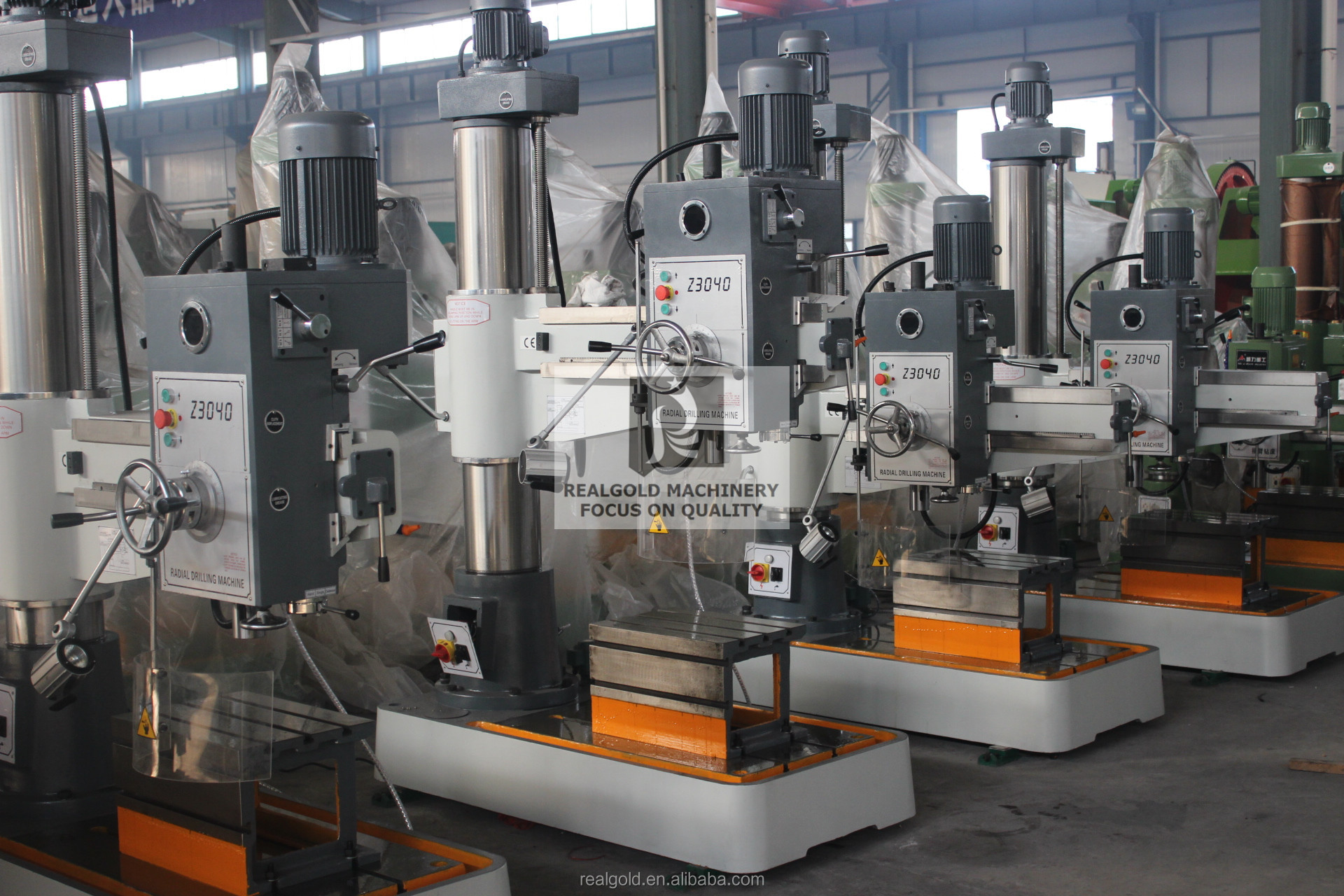

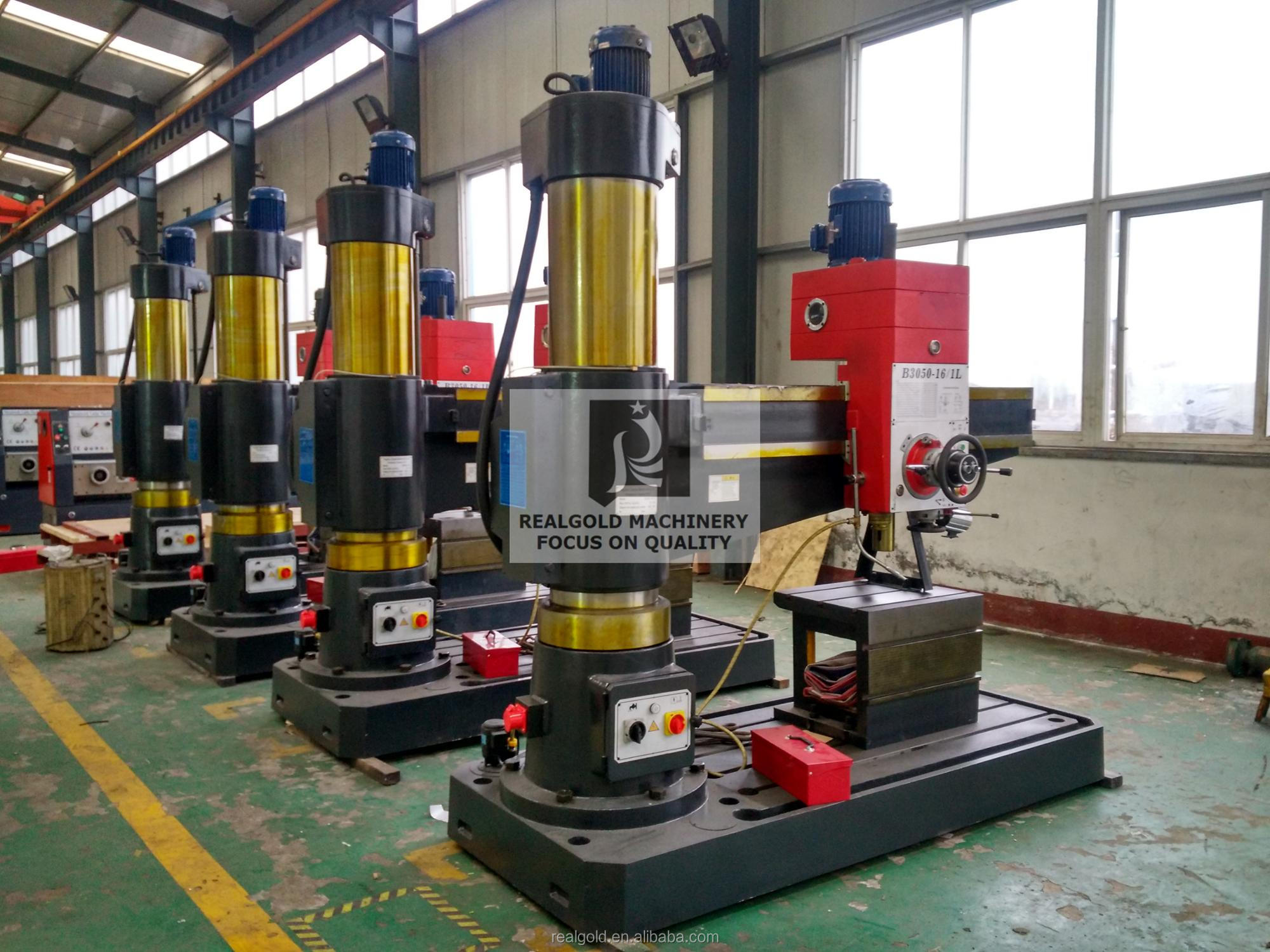

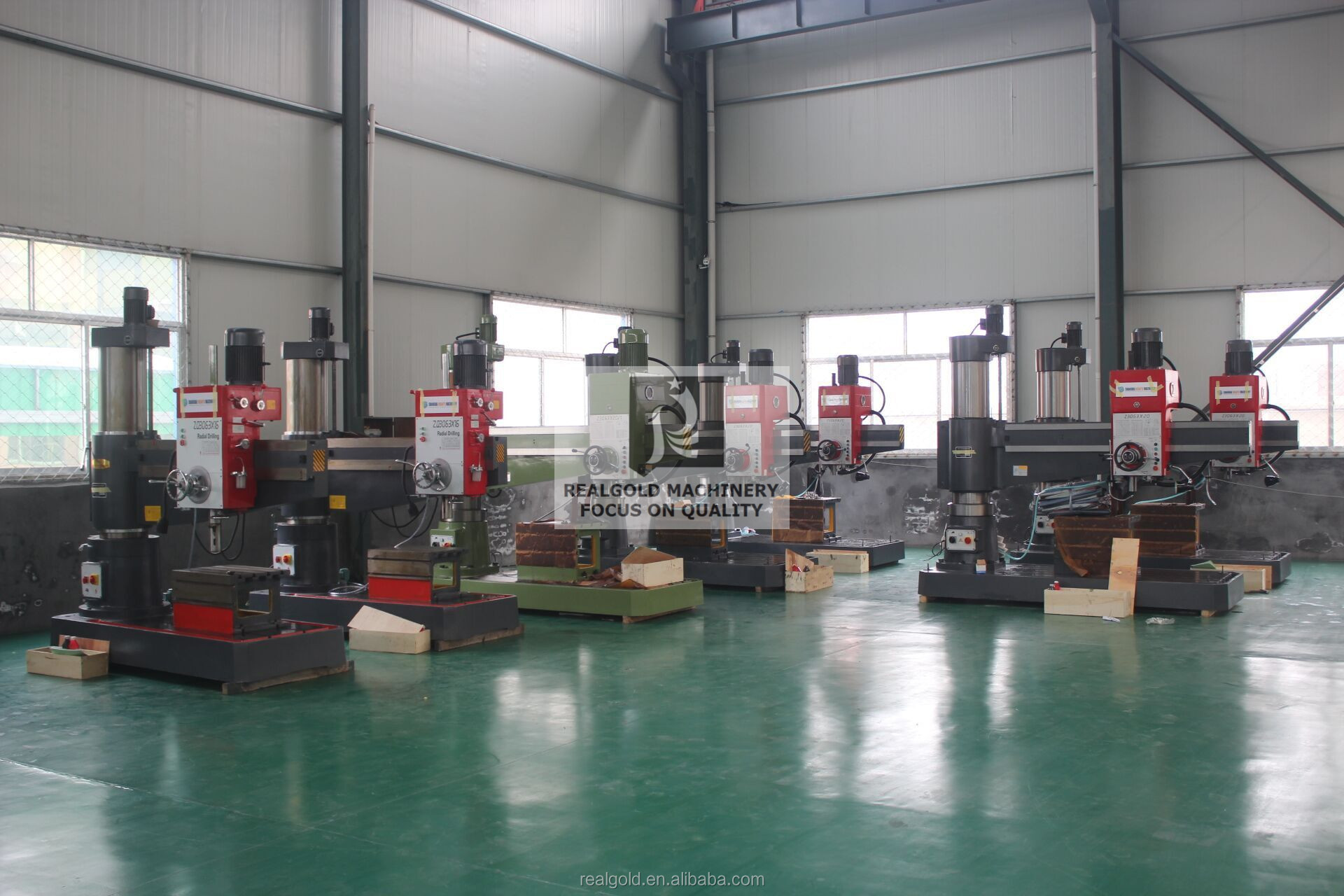

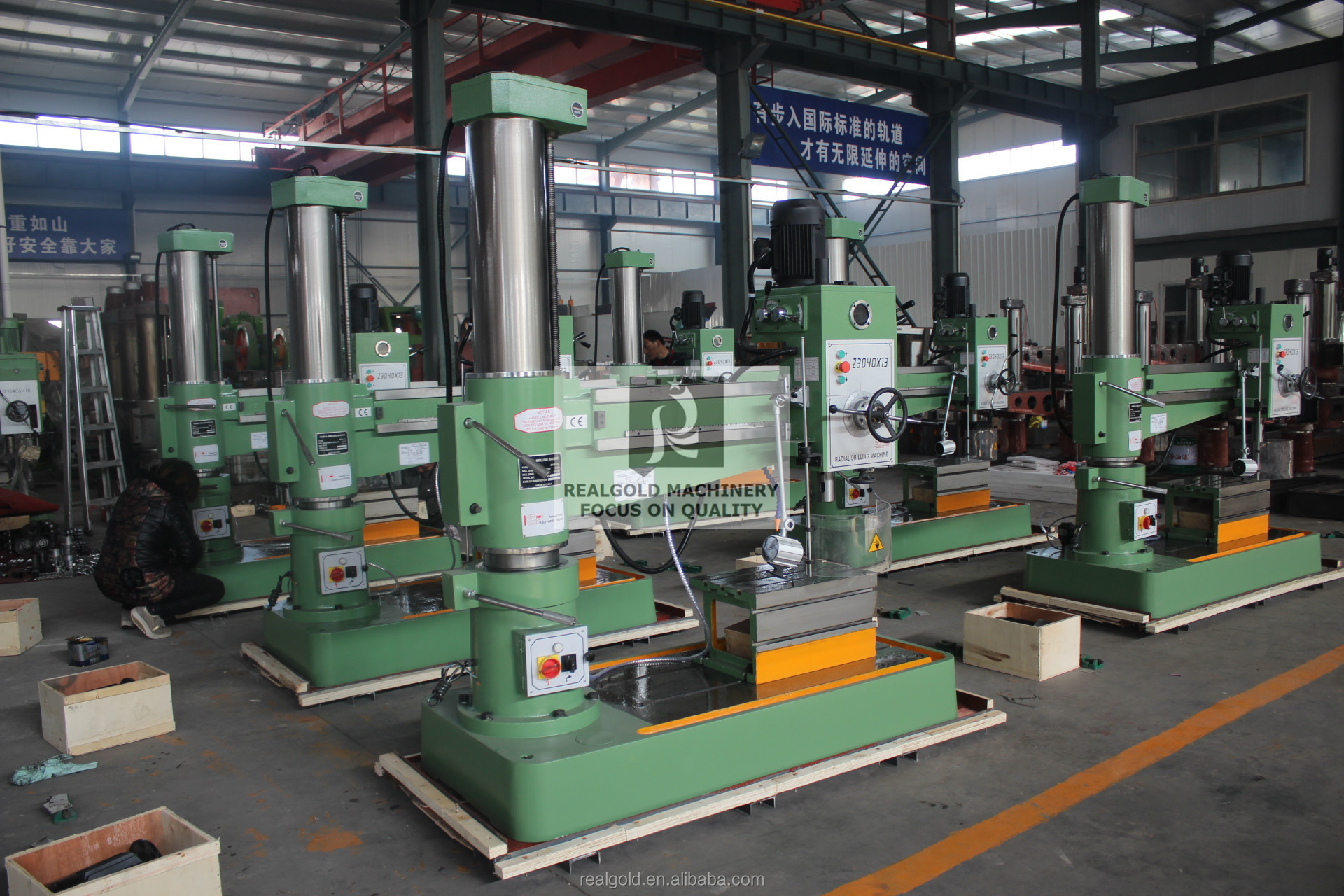

Workshop Image 1 Workshop Image 2 Workshop Image 3 Workshop Image 4
Why Choose Us
We are a professional machine tool manufacturer in China Mainland, with more than 30 years of experience in product design and manufacture. We always follow the best technology design & manufacture ideas in our products, trying our best to provide our customers with the most cost-effective machine tools and accessories.
Assembly and QC

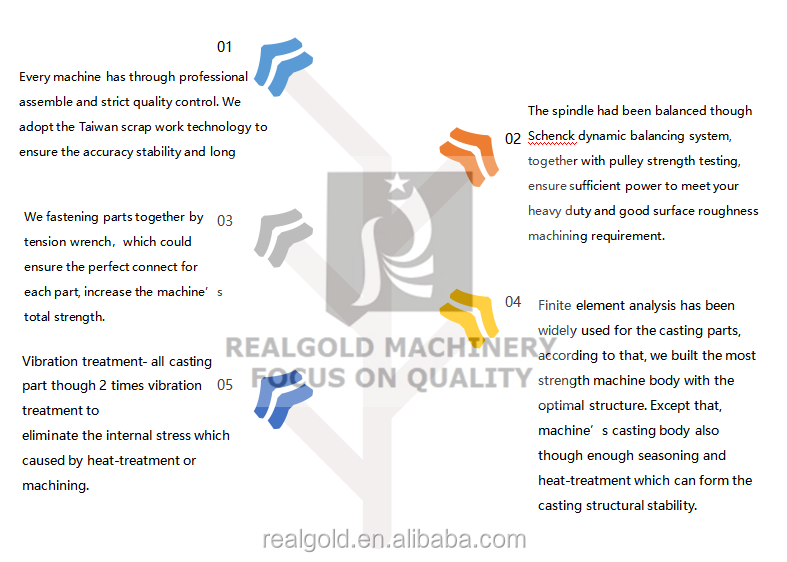

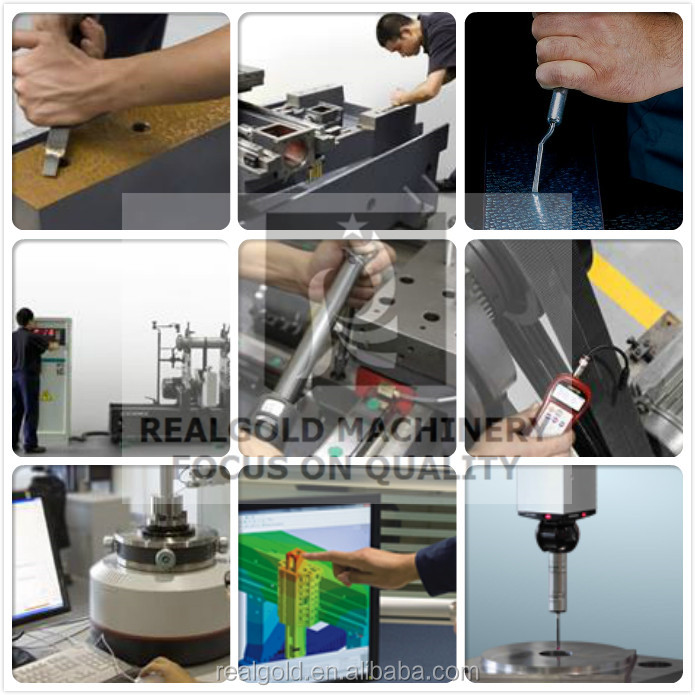

Assembly Process QC Inspection
Production Capacity
Our facility operates with top class production capacity and we always follow excellent technological concepts to ensure our products possess the best quality in their class.
Parts in Stock

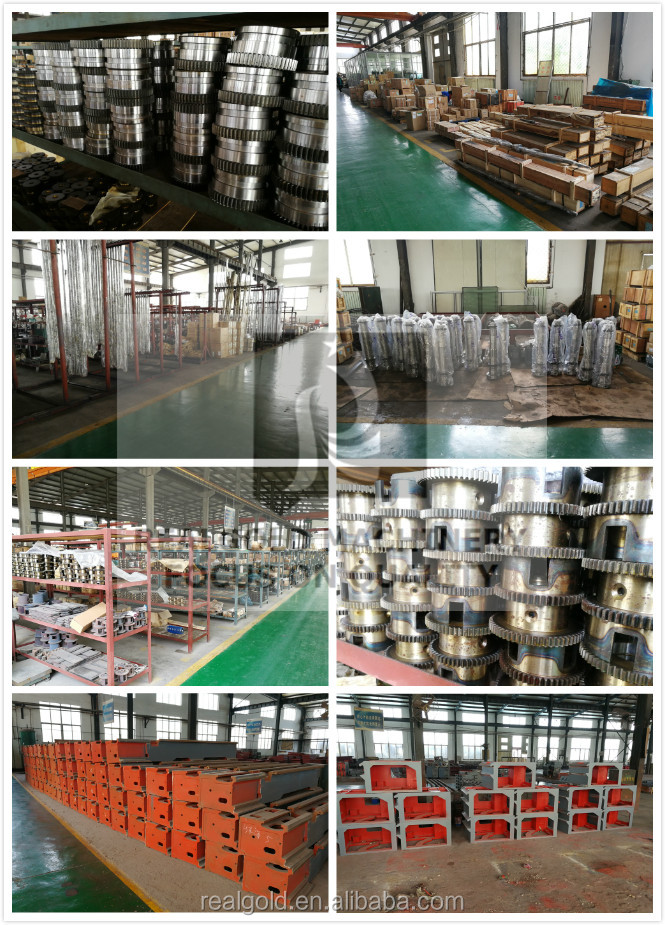

Parts in stock
Processing Capacity
We operate a complete production line for lathe machines, including specialized machinery designed specifically for our machine bodies. This setup requires only a single clamping to finish various production processes, which improves processing efficiency, reduces costs, and ensures precision.

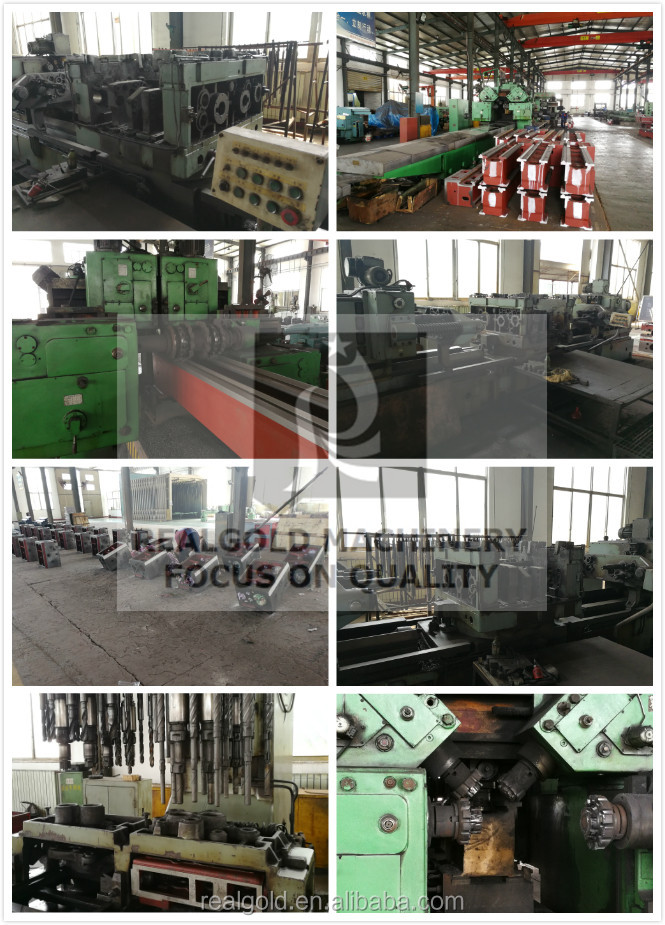

Processing capacity
Certifications
Product Certifications
Our Services
Within 18 Hours Feedback is Our Promise
Fast Facts:
  • 97% Client Retention Rate
  • 10,000+ Cooperating Clients
  • 25 Years of Brand Operating, 15 Years of Machine Tools Building
  • 100% Focus on Our Clients' Best Interests
Service Verification
18 Months Warranty
Our quality confidence provides customers with absolute peace of mind. We will supply parts or services for repairs at no cost for a period of 18 months after the bill of lading date. Extended warranties are available at the time of purchase.
Frequently Asked Questions
How can I get a quotation?
Leave us a message with your purchase requirements and we will reply to you as soon as possible.
Can you provide customized machines or SPM (Special Purpose Machines)?
Yes, we provide various processing solutions for customers in order to meet different requirements.
Can you provide training for operating CNC machines?
Yes, free training is available in our factory or at the customer's facility.
How about your price?
Send us the details of what you need, and you will get a competitive offer that stands out for its value.
What are your warranty terms?
We will supply replacements for parts that prove to be defective for a period of 18 months, starting from the machine's bill of lading date.
What is the delivery time, and what is the package?
Normally, the delivery time is about 30-45 days. All our machines are packed securely using standard seaworthy packaging.
